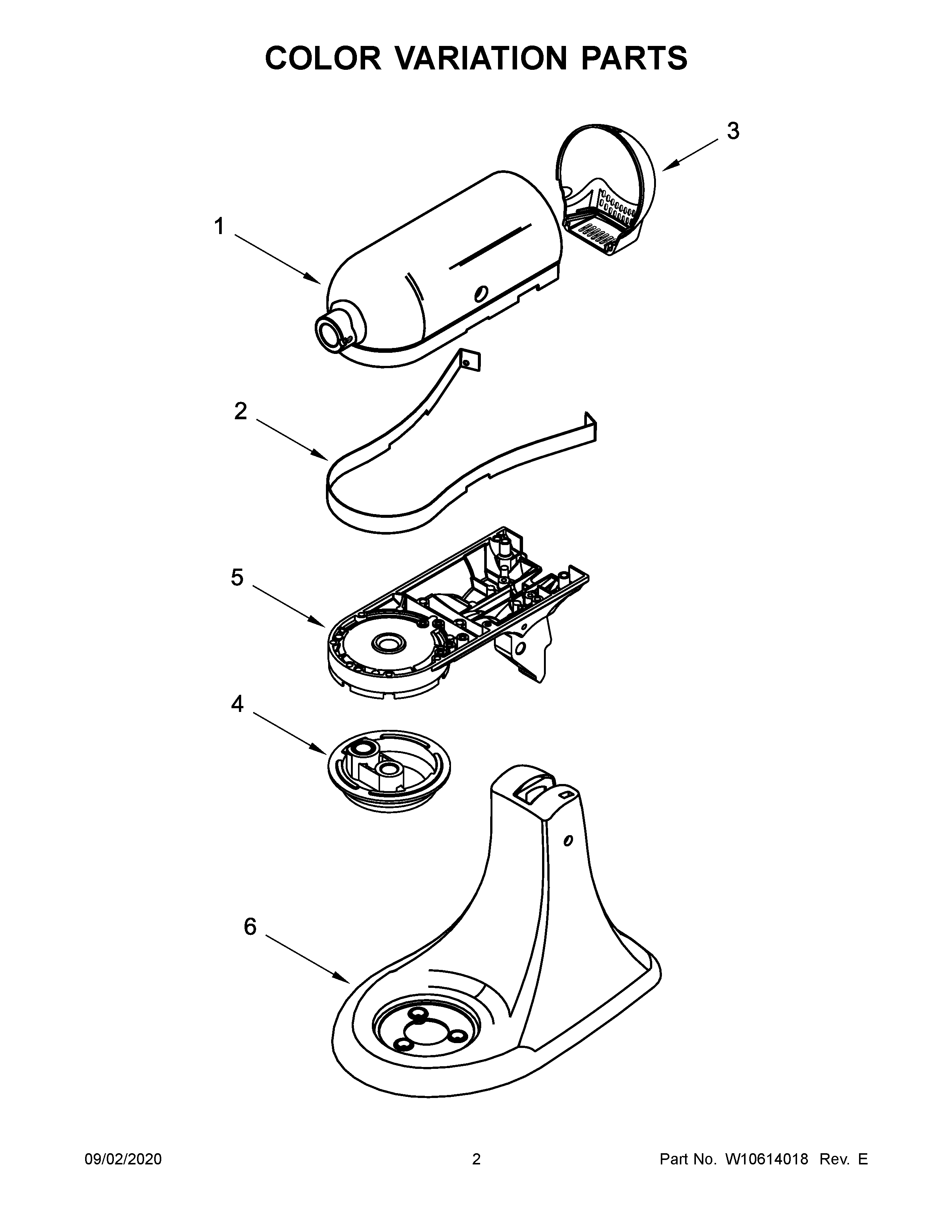

KSM153PSQOB0 02 – COLOR VARIATION PARTS

KSM153PSQOB0 02 – COLOR VARIATION PARTS

Written by

in

KSM153PSQOB0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1EMOTOR HOUSING (TANGERINE)
1BMOTOR HOUSING (EMPIRE RED)
1DMOTOR HOUSING (MAJESTIC YELLOW)
1TMOTOR HOUSING (INK BLUE)
1YMOTOR HOUSING (PISTACHIO)
1ZMOTOR HOUSING (TOFFEE DELIGHT)
1LW10350463 Whirlpool Housing
1OMOTOR HOUSING (BOYSENBERRY)
1PMOTOR HOUSING (COPPER PEARL)
1N9709600 Whirlpool Housing
1JMOTOR HOUSING (CRANBERRY/FLAMINGO)
1KMOTOR HOUSING (CRYSTAL BLUE)
1HMOTOR HOUSING (GREEN APPLE)
1U9707662 Whirlpool Housing
1VMOTOR HOUSING (MATTE LAVENDER CREAM)
1GMOTOR HOUSING (COBALT BLUE)
1MMOTOR HOUSING (MATTE BLACK VIOLET)
1RMOTOR HOUSING (GUAVA GLAZE)
1AMotor Housing (Onyx Black)
1C9704025 Whirlpool Housing Assembly
1WMOTOR HOUSING (OCEAN DRIVE)
1FMOTOR HOUSING (AQUA SKY)
1Motor Housing (White)
1I9709442 Whirlpool Housing
1QMOTOR HOUSING (MATTE WHITE)
1SMOTOR HOUSING (HONEYDEW)
1XWPL W11209486
2TRIM BAND (BLACK)
2A9706630 Whirlpool Trim Band
3I9709437 Whirlpool Cover
3FW10193496 Whirlpool Cover
3VW10678729 Whirlpool Cover Assembly
3U9707667 Whirlpool Cover
3H9709683 Whirlpool Cover
3MWPL W11113837
3WW11170249 Whirlpool Cover Assembly
3PWPL W10512235
3RWPL W11113836
3XEND COVER (BIRD OF PARADISE)
3TWPL W11113833
3SWPL W11383814
3OW10140796 Whirlpool Cover
3ZEND COVER (TOFFEE DELIGHT)
3Y9706841 Whirlpool Cover
3QWPL W10885728
3KEND COVER (CRYSTAL BLUE)
3LW10350456 Whirlpool Cover Assembly
3GEND COVER (COBALT BLUE)
3C9704029 Whirlpool Cover Assembly
3AEND COVER (ONYX BLACK)
3END COVER-White
3BEND COVER (EMPIRE RED)
3DEND COVER (MAJESTIC YELLOW)
3N9709595 Whirlpool Cover
3J9706801 Whirlpool Cover
3E9706854 Whirlpool Cover
4ZPLANETARY (TOFFEE DELIGHT)
4LW10350465 Whirlpool Planetary Mixer
4OPLANETARY (BOYSENBERRY)
4DPLANETARY (MAJESTIC YELLOW)
4TWPL W11113890
4BPLANETARY (EMPIRE RED)
4SWPL W11383821
4RWPL W11113889
4MWPL W11113888
4QWPL W10885730
4PLANETARY-White
4C9706670 Whirlpool Planetary
4FW10193498 Whirlpool Planetary Assembly
4GPLANETARY (COBALT BLUE)
4APLANETARY-Onyx Black
4XPLANETARY (BIRD OF PARADISE)
4VWPL W10678731
4JWPL 9706799
4WWPL W10885690
4I9709439 Whirlpool Planetary Gear
4NWPL 9709597
4H9709685 Whirlpool Planetary Assembly
4EWPL 9706852
4U9707665 Whirlpool Planetary Mixer
4KW10476794 Whirlpool Planetary Mixer
4PPLANETARY (COPPER PEARL)
4YPLANETARY (PISTACHIO)
5H9709691 Whirlpool Gearcase
5ALOWER GEARCASE (ONYX BLACK)
5WWPL W10885686
5J9706792 Whirlpool Gearcase
5VWPL W10678734
5SWPL W11383816
5NWPL 9709603
5LOWER GEARCASE-White
5RWPL W11113861
5MWPL W11113860
5KW10476775 Whirlpool Gearcase
5QWPL W10885718
5GWPL 24035031
5Y9706832 Whirlpool Gearcase
5OLOWER GEARCASE (BOYSENBERRY)
5ULOWER GEARCASE (ICE)
5IWPL 9709445
5PWPL W10513176
5ZLOWER GEARCASE (TOFFEE DELIGHT)
5LLOWER GEARCASE (CONTOUR SILVER)
5FW10193504 Whirlpool Gearcase
5XLOWER GEARCASE (BIRD OF PARADISE)
5DWPL 24035082
5TWPL W11113862
5BLOWER GEARCASE-Empire Red
5C9706662 Whirlpool Gearcase Assembly
5EWPL 9706845
6APedestal w/Feet (Onyx Black)
63179260 Whirlpool Pedestal
