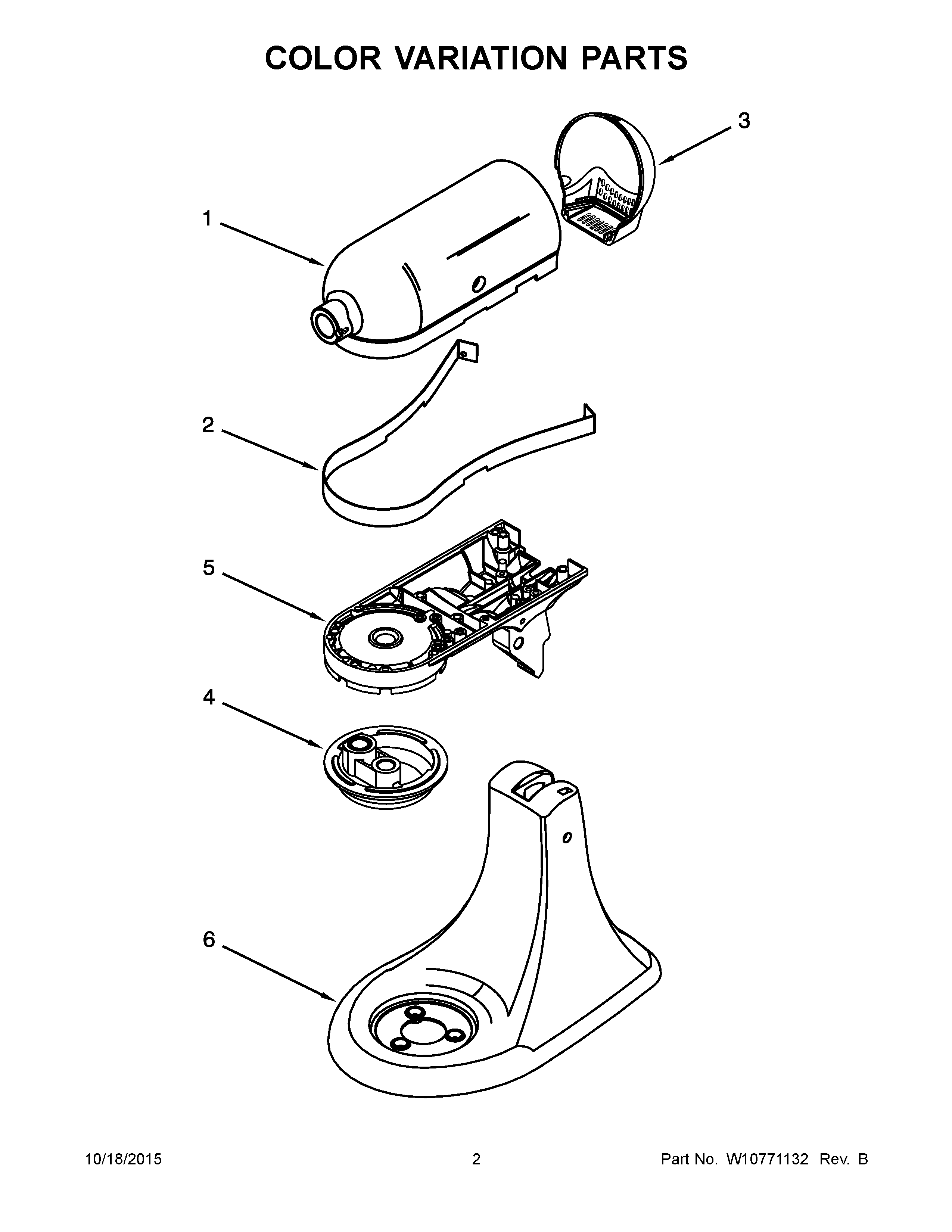

KSM154GBQ2LT0 02 – COLOR VARIATION PARTS

KSM154GBQ2LT0 02 – COLOR VARIATION PARTS

Written by

in

KSM154GBQ2LT0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1EW10572197 Whirlpool Housing
1AMOTOR HOUSING (BLACK STORM)
1KMOTOR HOUSING (SUGAR PEARL SILVER)
1CMOTOR HOUSING (ELECTRIC BLUE)
1BW10239115 Whirlpool Housing
1MMOTOR HOUSING (BLUEBERRY)
1W10607824 Whirlpool Housing
1FPEDESTAL W/FEET AND HEADLOCK (CAFE LATTE)
1GMOTOR HOUSING (PLUMBERRY)
1IMOTOR HOUSING (RASPBERRY ICE)
1JMOTOR HOUSING (SEA GLASS)
1NMOTOR HOUSING-Caviar
1DMOTOR HOUSING (FROSTED PEARL)
1LMOTOR HOUSING (TOFFEE)
1OMOTOR HOUSING (CHAMPAGNE)
1HMOTOR HOUSING (PEARL
2TRIM BAND (DARK PLATINUM)
3DW10477198 Whirlpool Cover Assembly
3JEND COVER (SEA GLASS)
3HWPW10128412 Whirlpool Cover
3LW10564337 Whirlpool Cover
3AEND COVER (BLACK STORM)
3MW10564336 Whirlpool Cover Assembly
3EW10572184 Whirlpool Cover
3W10607811 Whirlpool Cover
3CW10342506 Whirlpool Cover Assembly
3KW10342507 Whirlpool Cover Assembly
3N9705241 Whirlpool Cover
3OEND COVER (CHAMPAGNE)
3FWPL W10384495
3GW10572183 Whirlpool Cover
3IW10384429 Whirlpool Cover
3BWPW10239110 Whirlpool Cover
4IWPL W10384425
4W10607813 Whirlpool Planetary Gear
4CPLANETARY (ELECTRIC BLUE)
4KPLANETARY (SUGAR PEARL SILVER)
4APLANETARY (BLACK STORM)
4DPLANETARY (FROSTED PEARL)
4LWPL W10564343
4FWPL W10384493
4NPLANETARY-Caviar
4OW10754811 Whirlpool Planetary
4HW10128414 Whirlpool Planetary Gear
4MWPL W10564342
4GWPL W10572188
4EPLANETARY (GRENADINE)
4JPLANETARY (SEA GLASS)
4BW10239112 Whirlpool Planetary Mixer
5EW10572193 Whirlpool Gearcase Assembly
5OW10754813 Whirlpool Gearcase Assembly
5HWPL W10128420
5BL
5NWPL 9706911
5WPL W10607815
5GWPL W10572192
5JLOWER GEARCASE (SEA GLASS)
5MW10564348 Whirlpool Gearcase
5IWPL W10384415
5FW10384487 Whirlpool Gearcase Assembly
5CWPL W10342533
5KWPL W10342534
5AWPL W10382395
5DWPL W10477200
5LWPL W10564349
6AWPL W10739333
6FWPL W10739342
6MWPL W10564339
6LW10564340 Whirlpool Pedestal
6KWPL W10342541
6JWPL W10703455
6GWPL W10572186
6EW10572187 Whirlpool Pedestal
6CWPL W10342540
6OWPL W10754810
6WPL W10607812
6IPEDESTAL W/FEET (RASPBERRY ICE)
6DW10606159 Whirlpool Pedestal
6BWPL W10239121
6NWPL 9705237
6HWPL W10739353
