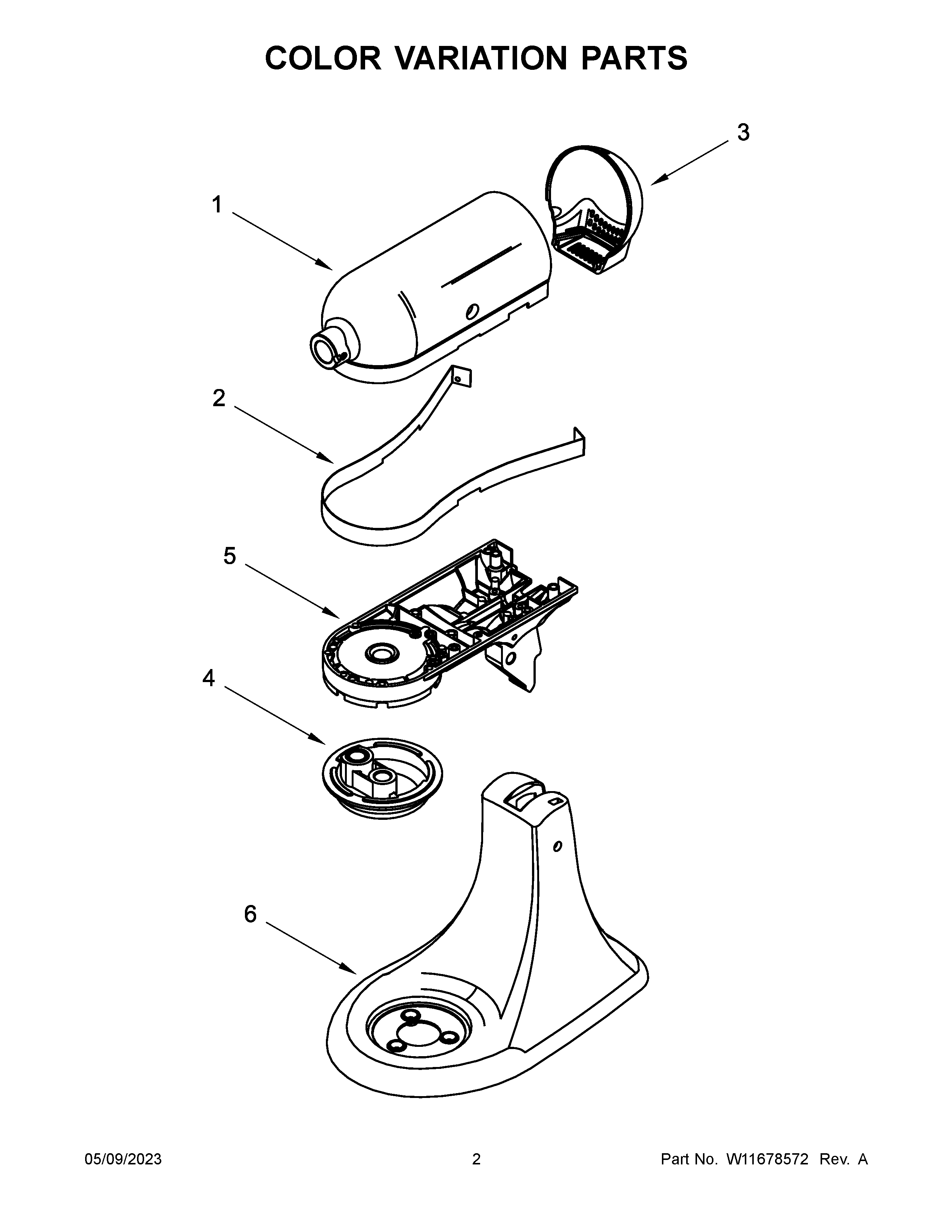

KSM154GBQ4GR5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1LMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1CMOTOR HOUSING (ICE)
1FMOTOR HOUSING (LAVENDER CREAM)
1HMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1MOTOR HOUSING (CANDY APPLE RED)
1KMOTOR HOUSING (PISTACHIO)
1AMOTOR HOUSING (CONTOUR SILVER)
1IMOTOR HOUSING (MINERAL WATER BLUE)
1GMOTOR HOUSING (MAJESTIC YELLOW)
1DW11605712 Whirlpool Housing
1BMOTOR HOUSING (FEATHER PINK)
1EMOTOR HOUSING (KYOTO GLOW)
1JMOTOR HOUSING (ONYX BLACK)
2TRIM BAND (BLACK)
3EWPL W11357462
3K9706841 Whirlpool Cover
3DEND COVER (IMPERIAL GRAY)
3WPW10239110 Whirlpool Cover
3BEND COVER (FEATHER PINK)
3IEND COVER (MINERAL WATER BLUE)
3AW10350456 Whirlpool Cover Assembly
3FW10678729 Whirlpool Cover Assembly
3HWPL W11113835
3GEND COVER (MAJESTIC YELLOW)
3LE
3C9707667 Whirlpool Cover
3JEND COVER (ONYX BLACK)
4KPLANETARY (PISTACHIO)
4BPLANETARY (FEATHER PINK)
4AW10350465 Whirlpool Planetary Mixer
4C9707665 Whirlpool Planetary Mixer
4IPLANETARY (MINERAL WATER BLUE)
4FWPL W10678731
4GPLANETARY (MAJESTIC YELLOW)
4HW11113886 Whirlpool Planetary Mixer
4LWPL W11209470
4JPLANETARY-Onyx Black
4DPLANETARY (IMPERIAL GRAY)
4EWPL W11357469
4W10239112 Whirlpool Planetary Mixer
5EWPL W11357465
5L
5BWPL W11431679
5JLOWER GEARCASE (ONYX BLACK)
5ALOWER GEARCASE (CONTOUR SILVER)
5IWPL W11444671
5LW11209465 Whirlpool Gearcase
5FWPL W10678734
5DWPL 24035086
5HWPL W11113859
5K9706832 Whirlpool Gearcase
5CLOWER GEARCASE (ICE)
5GWPL 24035082
6APEDESTAL W/FEET (CONTOUR SILVER)
6HWPL W11113853
6LPEDESTAL (BLUE VELVET)
6JPedestal w/Feet (Onyx Black)
6KPEDESTAL W/FEET (PISTACHIO)
6GWPL 9702303
6FWPL W10678730
6WPL W10239121
6C9707656 Whirlpool Pedestal
6IWPL W11444670
6D9702305 Whirlpool Pedestal
6BWPL W11444650
6EWPL W11357468
