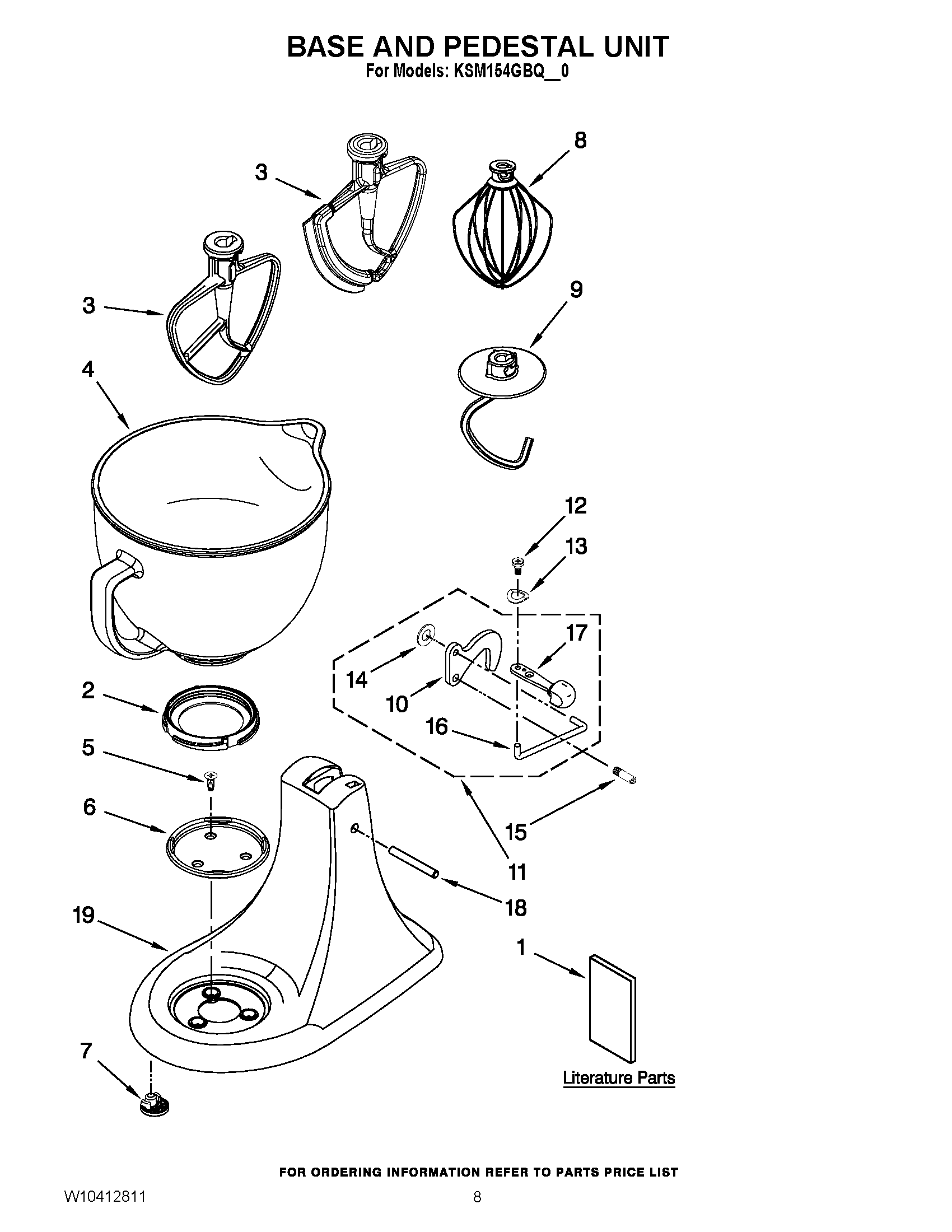

KSM154GBQCL0 04 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1Use & Care, Trilin
1REPAIR PARTS LIST
2WPW10220977 Whirlpool Ring
3BEATER, FLEX EDGE
3W11672200 Whirlpool Mixer Beater
4W11341654 Whirlpool Mixer Bowl
5SCREW
6WPW10191926 Whirlpool Cap Screw
7WP9709707 Whirlpool Foot
8WP9704329 Whirlpool Wire Whip
9W11316221 Whirlpool Stand Mixer Dough Hook
10W11246352 Whirlpool Latch Mechanism
11LATCH, LINK & LEVER (BUFF KNOB)
11WP24452 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15103993 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709280 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
19CABINET (NOT A SERVICEABLE PART)
