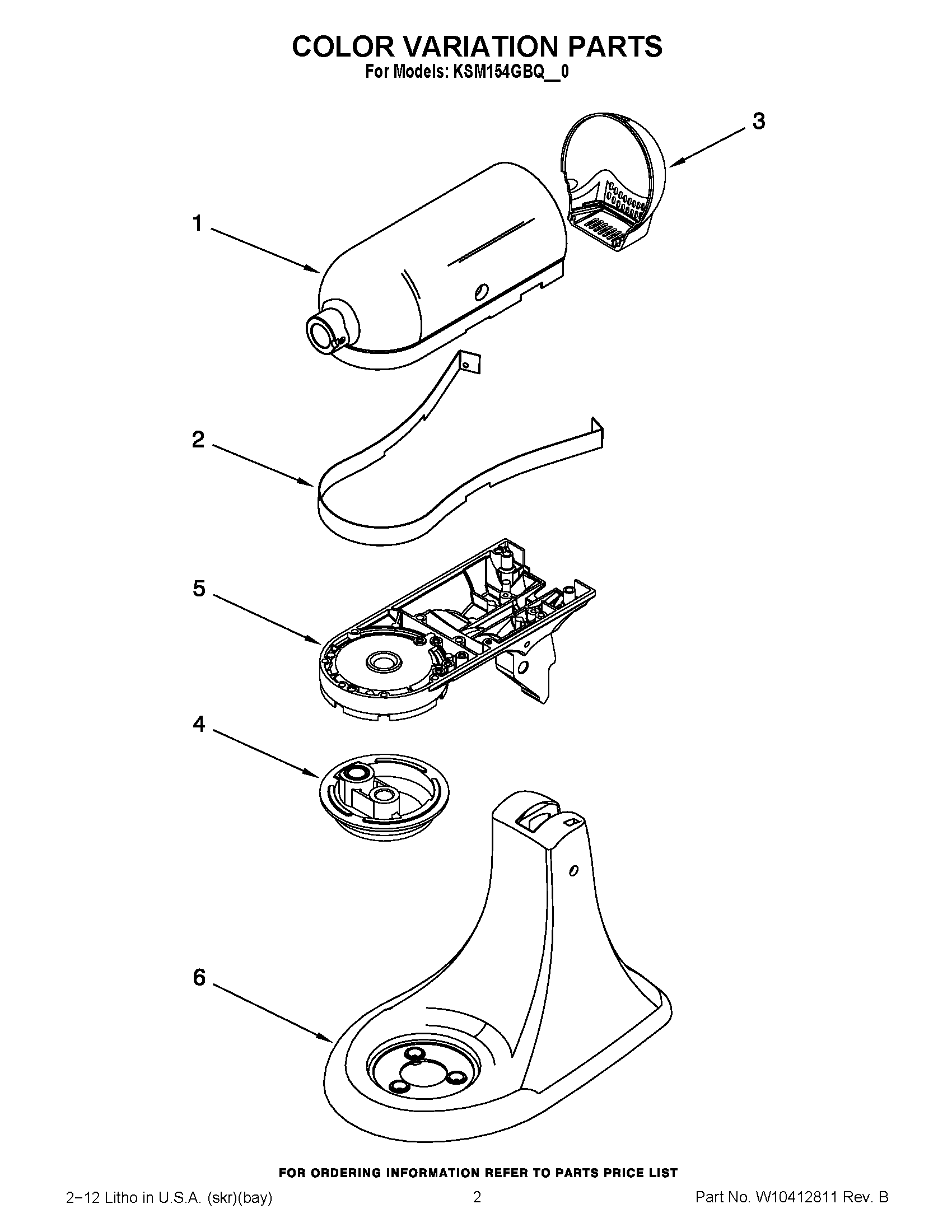

KSM154GBQER0 01 – COLOR VARIATION PARTS

KSM154GBQER0 01 – COLOR VARIATION PARTS

Written by

in

KSM154GBQER0 01 – COLOR VARIATION PARTS

Products

PositionProduct
1MOTOR HOUSING (EMPIRE RED)
1W10350463 Whirlpool Housing
1MOTOR HOUSING (CRYSTAL BLUE)
1MOTOR HOUSING (GREEN APPLE)
1MOTOR HOUSING (TANGERINE)
1MOTOR HOUSING (MAJESTIC YELLOW)
1W10121193 Whirlpool Housing
1Motor Housing (Onyx Black)
1Motor Housing (Buttercup)
19709442 Whirlpool Housing
1W10383627 Whirlpool Housing Pump
1Motor Housing (White)
1Motor Housing (Almond Creme)
19709600 Whirlpool Housing
2TRIM BAND (DARK PLATINUM)
39709683 Whirlpool Cover
3END COVER (CRYSTAL BLUE)
3W10121188 Whirlpool Cover Assembly
39706854 Whirlpool Cover
39709437 Whirlpool Cover
3W10383633 Whirlpool Cover Assembly
39709898 Whirlpool Cover
3END COVER-White
39709595 Whirlpool Cover
3W10350456 Whirlpool Cover Assembly
3END COVER (ONYX BLACK)
3End Cover (Almond Creme)
3END COVER (MAJESTIC YELLOW)
3END COVER (EMPIRE RED)
4WPL 9706852
4PLANETARY-Onyx Black
4Planetary (Almond Creme)
4PLANETARY-White
49709439 Whirlpool Planetary Gear
4Planetary (Buttercup)
4WPL W10383631
49706670 Whirlpool Planetary
4W10476794 Whirlpool Planetary Mixer
4PLANETARY (MAJESTIC YELLOW)
4W10350465 Whirlpool Planetary Mixer
4PLANETARY (EMPIRE RED)
4WPL 9709597
49709685 Whirlpool Planetary Assembly
5WPL 9709445
5LOWER GEARCASE (CONTOUR SILVER)
5W10121196 Whirlpool Gearcase
5WPL 24035082
5WPL 9706845
5LOWER GEARCASE (ONYX BLACK)
5W10383623 Whirlpool Gearcase
5LOWER GEARCASE-Empire Red
5WPL 9709603
5W10476775 Whirlpool Gearcase
59709691 Whirlpool Gearcase
5LOWER GEARCASE-White
5LOWER GEARCASE (ALMOND CREME)
59709906 Whirlpool Gearcase
6PEDESTAL W/FEET (CONTOUR SILVER)
6WPL 9709606
6W10121199 Whirlpool Pedestal
6WPL W10488414
6PEDESTAL W/FEET (ESPRESSO)
6WPL 9709448
69709909 Whirlpool Pedestal
63179260 Whirlpool Pedestal
6WPL 9706843
6WPL 9702303
6WPL 9709694
6W11131262 Whirlpool Pedestal
6Pedestal w/Feet (Onyx Black)
6PEDESTAL W/FEET (ALMOND CREME)
