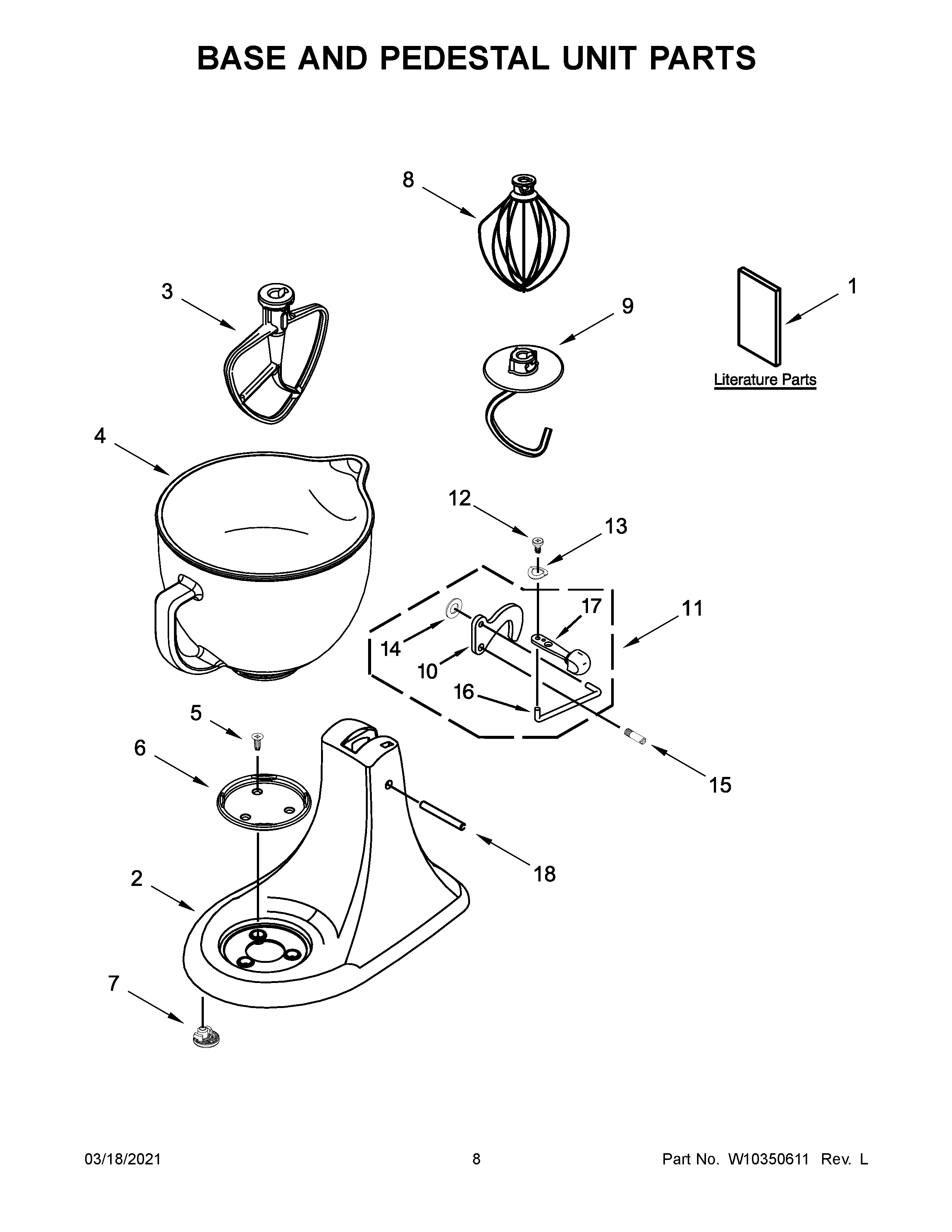

KSM155GBEB0 05 – BASE AND PEDESTAL UNIT PARTS
Written by
in
KSM155GBEB0 05 – BASE AND PEDESTAL UNIT PARTS
Products
Position
Product
1
Use & Care, Trilin
2
CABINET (NOT A SERVICEABLE PART)
3
W11672200 Whirlpool Mixer Beater
4
W11341654 Whirlpool Mixer Bowl
5
SCREW
6
WPW10191926 Whirlpool Cap Screw
7
WP9709707 Whirlpool Foot
8
WP9704329 Whirlpool Wire Whip
9
W11316221 Whirlpool Stand Mixer Dough Hook
10
W11246352 Whirlpool Latch Mechanism
11A
LATCH, LINK AND LEVER ASSEMBLY (SILK CHROME)
11
WP24452 Whirlpool Latch Lever
12
WP110679 Whirlpool Screw
13
WP116241 Whirlpool Washer
14
W11218705 Whirlpool Washer Assembly
15
W10802060 Whirlpool Screw
16
W11232016 Whirlpool Latch Link
17
WP9709280 Whirlpool Latch Lever
17A
LEVER, LATCH (SILK CHROME)
18
WP16910 Whirlpool Dowel Pin
←
