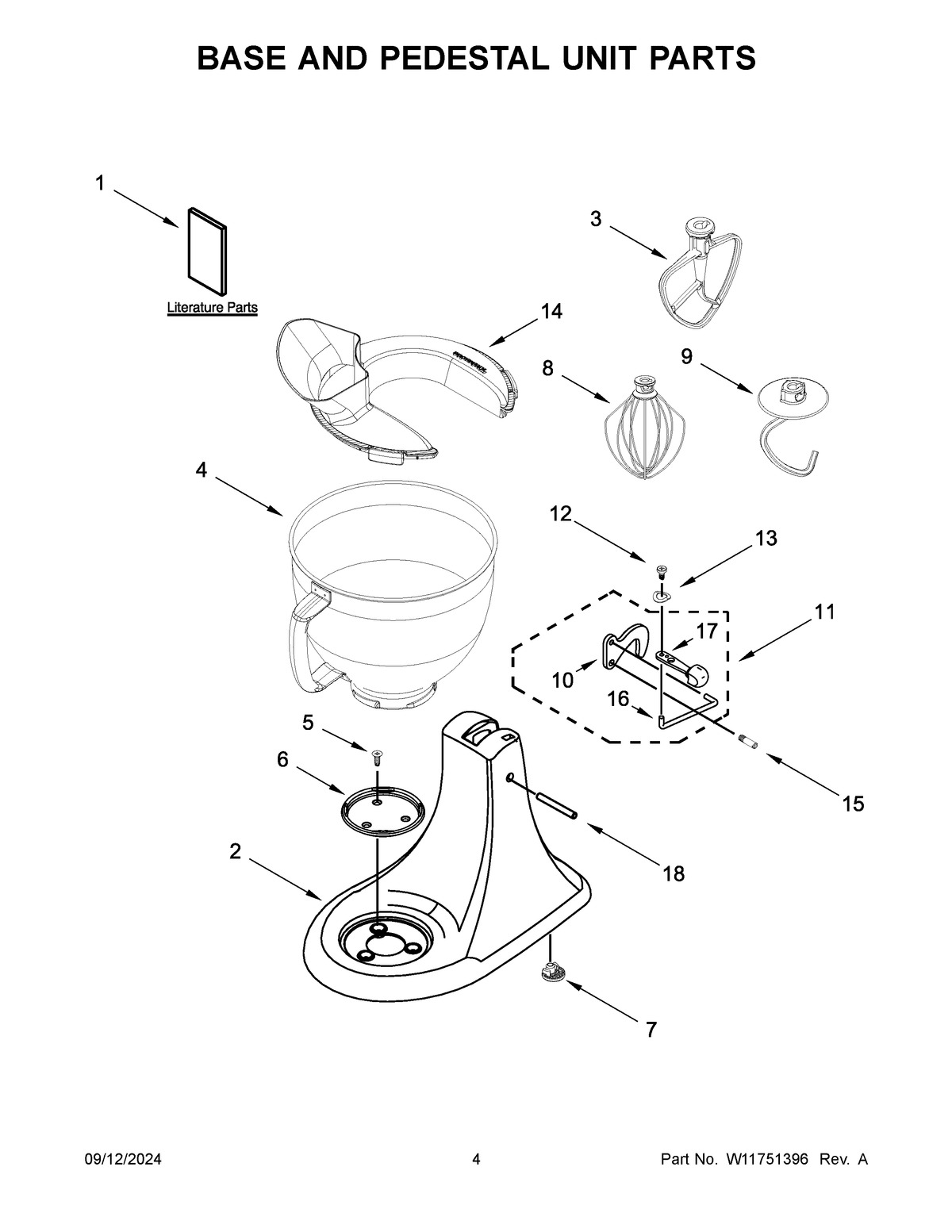

KSM156MPTFL5 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
3WPW10672617 Whirlpool Stand Mixer Flat Beater
4BOWL-MIXER
5SCREW
6WPW10191926 Whirlpool Cap Screw
7FOOT
8WP9704329 Whirlpool Wire Whip
9WPW10674618 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11WP24452 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11573560 Whirlpool Pour Shelf
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709280 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
