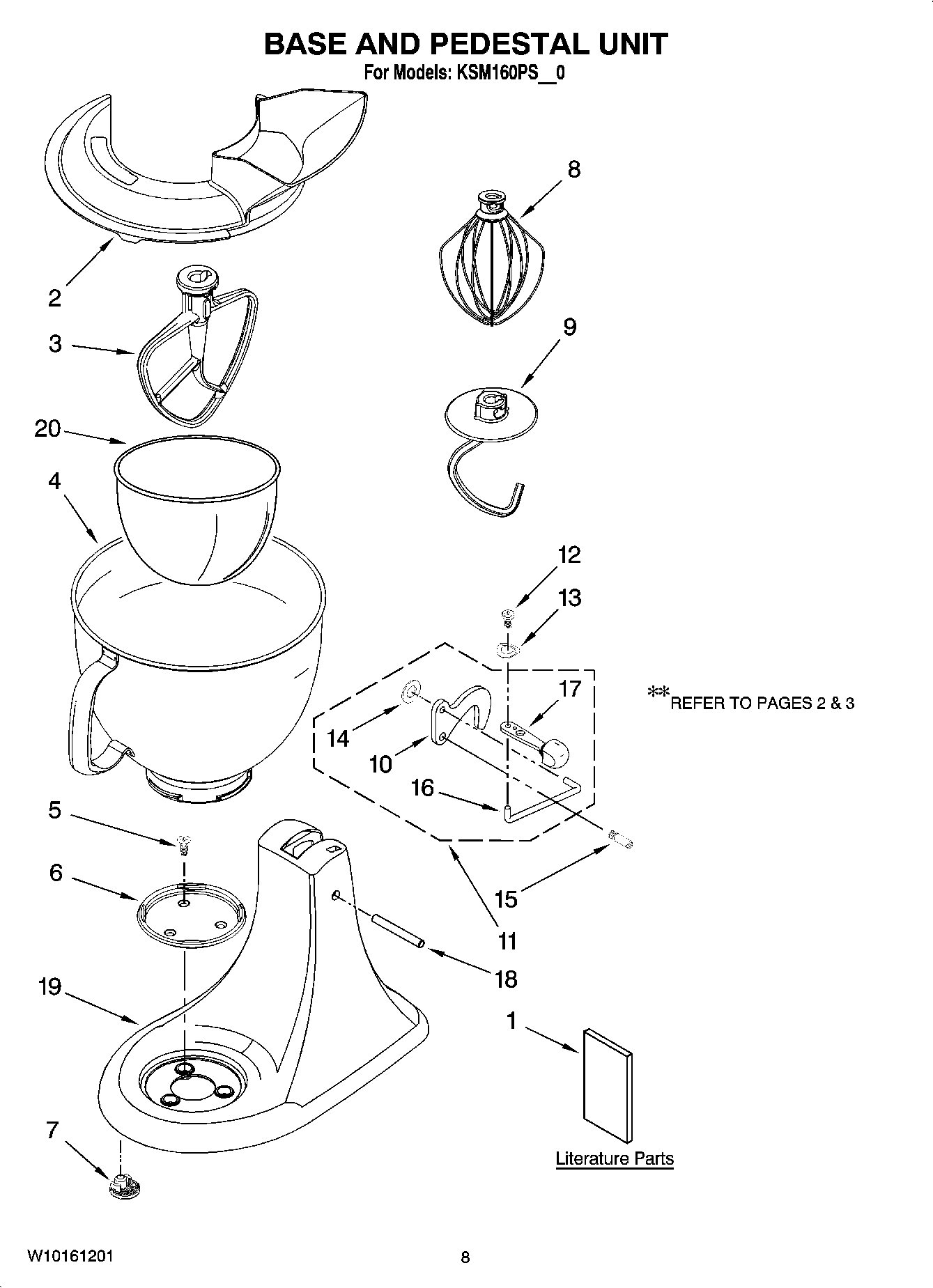

KSM160PSER0 04 – BASE AND PEDESTAL UNIT, OPTIONAL PARTSadmin2025-04-26T11:48:11+00:00KSM160PSER0 04 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS
Products
| Position | Product |
|---|
| 67500-55 ``O`` Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A) |
| CAN OPENER (CO) |
| JUICER (JE) |
| FOOD GRINDER (FG-A) |
| W10802058 Whirlpool Mixer Bowl |
| W11312468 Whirlpool Pour Shelf |
| Speed Disc (Service Tool) |
| Grain Mill, KGMA |
| Ice Cream Maker (KICA0WH0) |
| Bowl Cover, Plastic Non-Sealing |
| WPL 3180617 |
| WPL ARI92269A3 |
| Food Tray (FT) |
| PASTA MAKER PLATES (SNPA) |
| W11200218 Whirlpool Grease Filter |
| FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP) |
| ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A) |
| SAUSAGE STUFFER KIT (SSA) |
| PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA) |
| FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A) |
| 1 | Use & Care, Trilin |
| 1 | Repair Parts List |
| 3 | WPW10672617 Whirlpool Stand Mixer Flat Beater |
| 4 | W11324096 Whirlpool Mixer Bowl |
| 5 | SCREW |
| 6 | WPW10191926 Whirlpool Cap Screw |
| 7 | WP9709707 Whirlpool Foot |
| 8 | WP9704329 Whirlpool Wire Whip |
| 9 | WPW10674618 Whirlpool Dough Hook |
| 10 | W11246352 Whirlpool Latch Mechanism |
| 11 | WP24452 Whirlpool Latch Lever |
| 12 | WP110679 Whirlpool Screw |
| 13 | WP116241 Whirlpool Washer |
| 14 | W11218705 Whirlpool Washer Assembly |
| 15 | 103993 Whirlpool Screw |
| 16 | W11232016 Whirlpool Latch Link |
| 17 | WP9709280 Whirlpool Latch Lever |
| 18 | WP16910 Whirlpool Dowel Pin |
| 19 | Pedestal |
| 20 | BOWL, 3 QT. |
