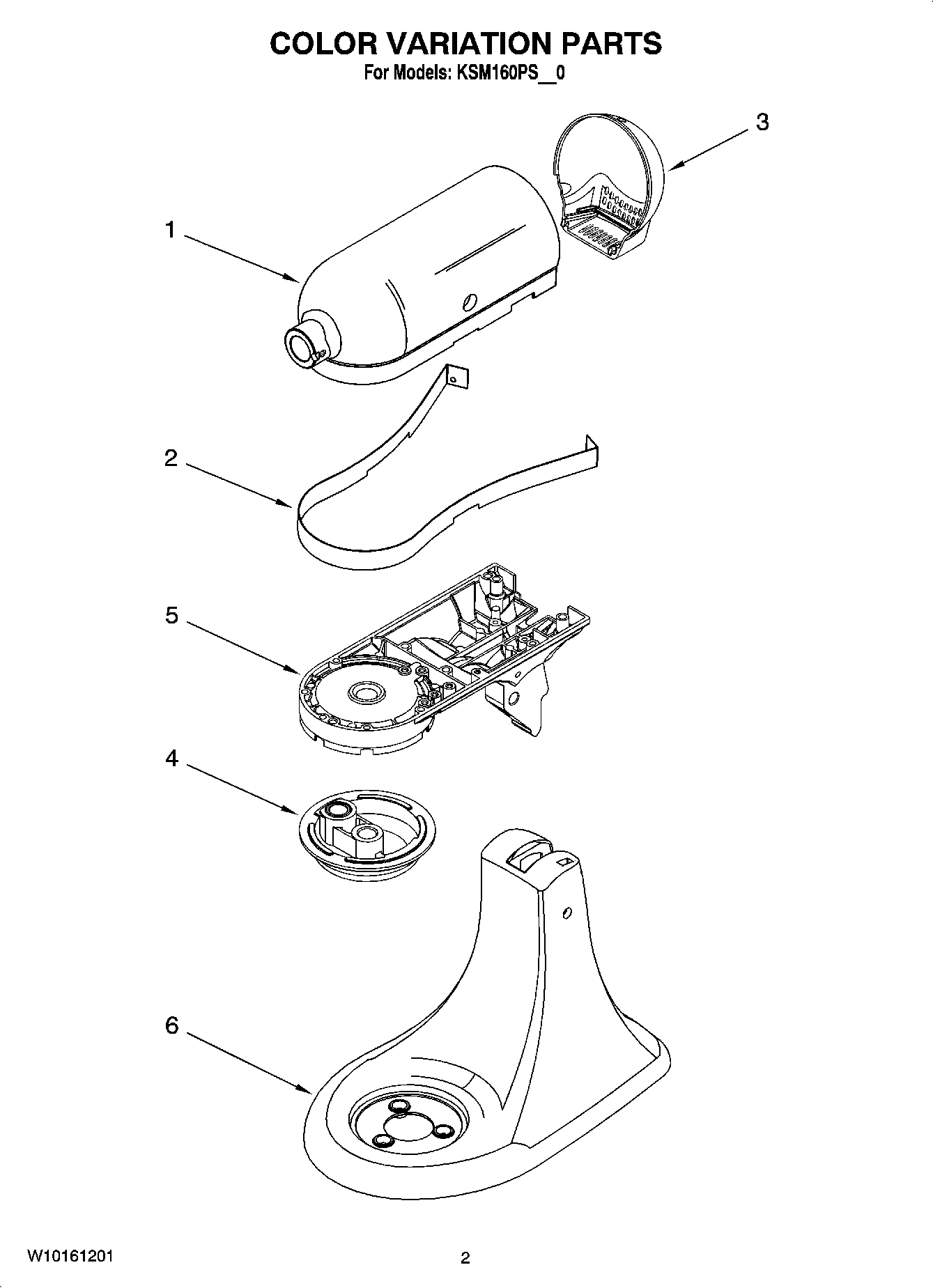

KSM160PSMC0 01 – COLOR VARIATION PARTS

Products

Position	Product
1	Motor Housing (White)
1	MOTOR HOUSING (EMPIRE RED)
1	9704025 Whirlpool Housing Assembly
1	Motor Housing (Onyx Black)
2	Trim Band (Black)
3	9704029 Whirlpool Cover Assembly
3	END COVER (EMPIRE RED)
3	END COVER-White
3	END COVER (ONYX BLACK)
4	PLANETARY-Onyx Black
4	9706670 Whirlpool Planetary
4	PLANETARY (EMPIRE RED)
4	PLANETARY-White
5	LOWER GEARCASE-White
5	9706662 Whirlpool Gearcase Assembly
5	LOWER GEARCASE-Empire Red
5	LOWER GEARCASE (ONYX BLACK)
6	Pedestal w/Feet (Onyx Black)
6	3179260 Whirlpool Pedestal
6	W11131262 Whirlpool Pedestal
6	WPL 9706684
