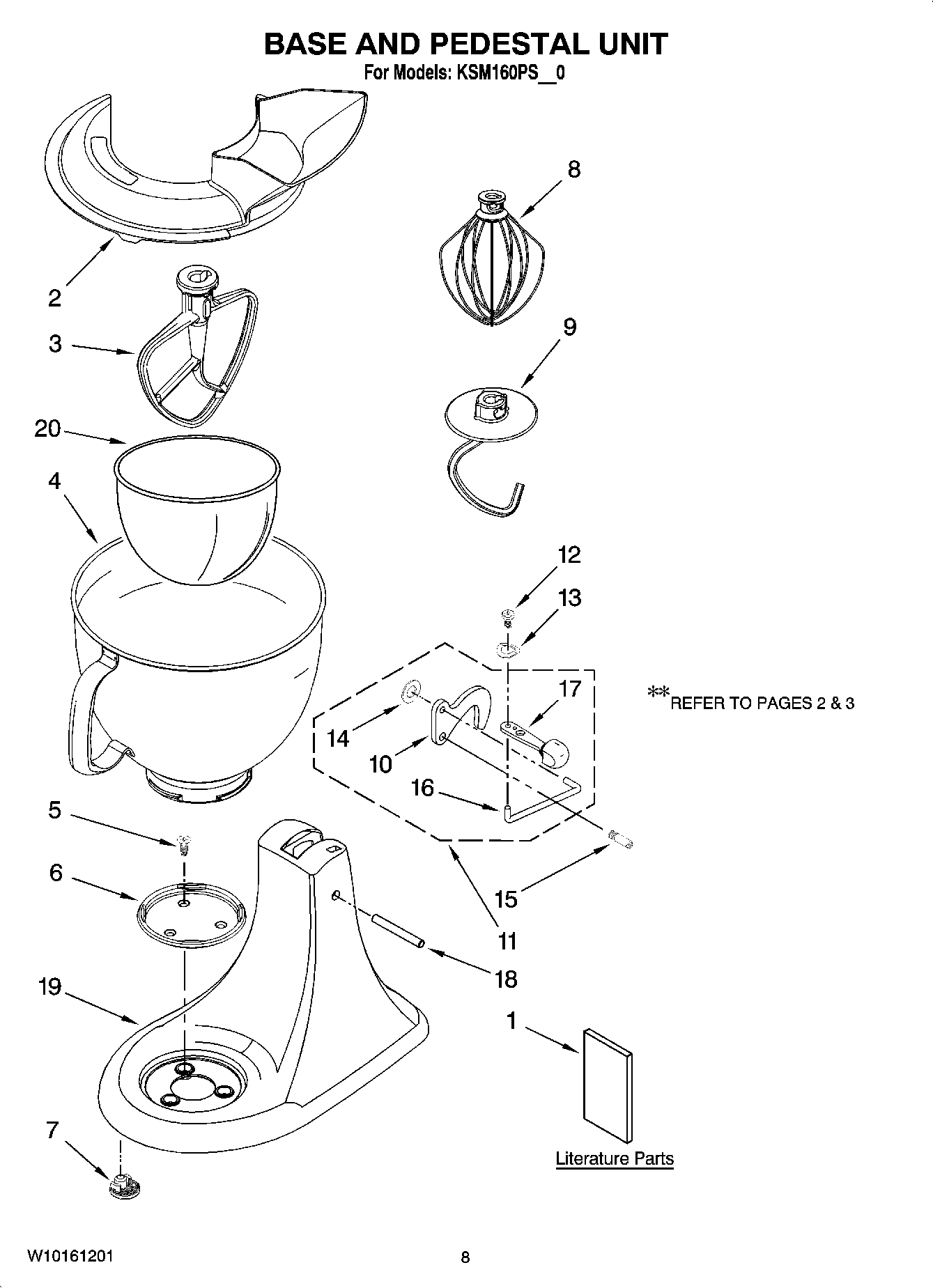

KSM160PSMC0 04 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	W10802058 Whirlpool Mixer Bowl
	W11312468 Whirlpool Pour Shelf
	Speed Disc (Service Tool)
	Grain Mill, KGMA
	Ice Cream Maker (KICA0WH0)
	Bowl Cover, Plastic Non-Sealing
	WPL 3180617
	Food Tray (FT)
	W11200218 Whirlpool Grease Filter
	WPL ARI92276A6
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	SAUSAGE STUFFER KIT (SSA)
	PASTA MAKER PLATES (SNPA)
1	Repair Parts List
1	Use & Care, Trilin
3	WPW10672617 Whirlpool Stand Mixer Flat Beater
4	W11324096 Whirlpool Mixer Bowl
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WP9704329 Whirlpool Wire Whip
9	WPW10674618 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	WP24452 Whirlpool Latch Lever
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	W11218705 Whirlpool Washer Assembly
15	103993 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	WP9709280 Whirlpool Latch Lever
18	WP16910 Whirlpool Dowel Pin
19	Pedestal
20	BOWL, 3 QT.
