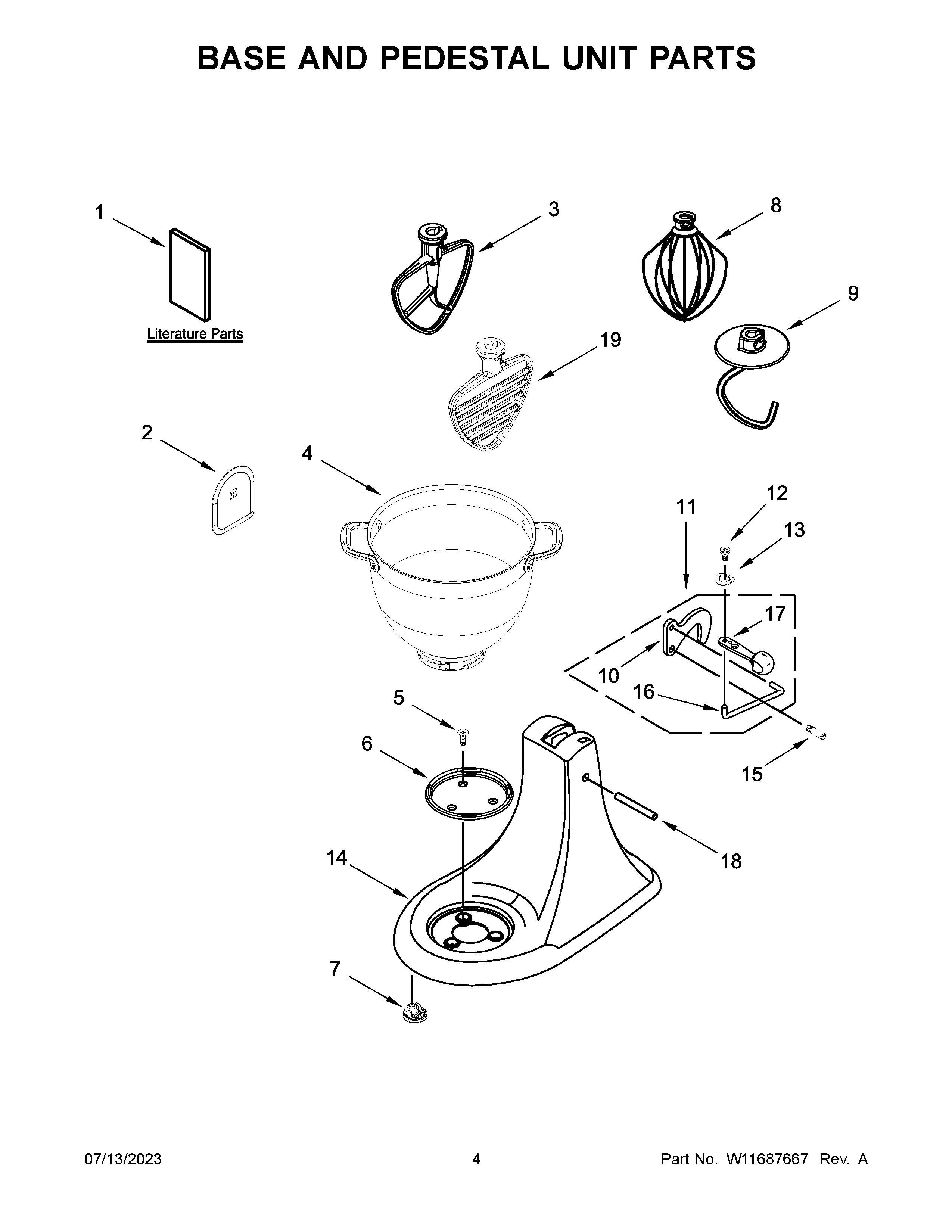

KSM180LELB5 03 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	SCRAPER, POT (NYLON)
3	W11305076 Whirlpool Mixer Beater
4	ASSY – COPPER BOWL, 5QT
5	SCREW
6	WPW10191926 Whirlpool Cap Screw
7	WP9709707 Whirlpool Foot
8	WHIP, WIRE
9	W11305078 Whirlpool Dough Hook
10	W11246352 Whirlpool Latch Mechanism
11	LATCH, LINK ASSEMBLY (CHROME)
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	CABINET (NOT A SERVICEABLE PART)
15	W10802060 Whirlpool Screw
16	W11232016 Whirlpool Latch Link
17	LEVER, LATCH (CHROME)
18	WP16910 Whirlpool Dowel Pin
19	BEATER, PASTRY (STAINLESS)
