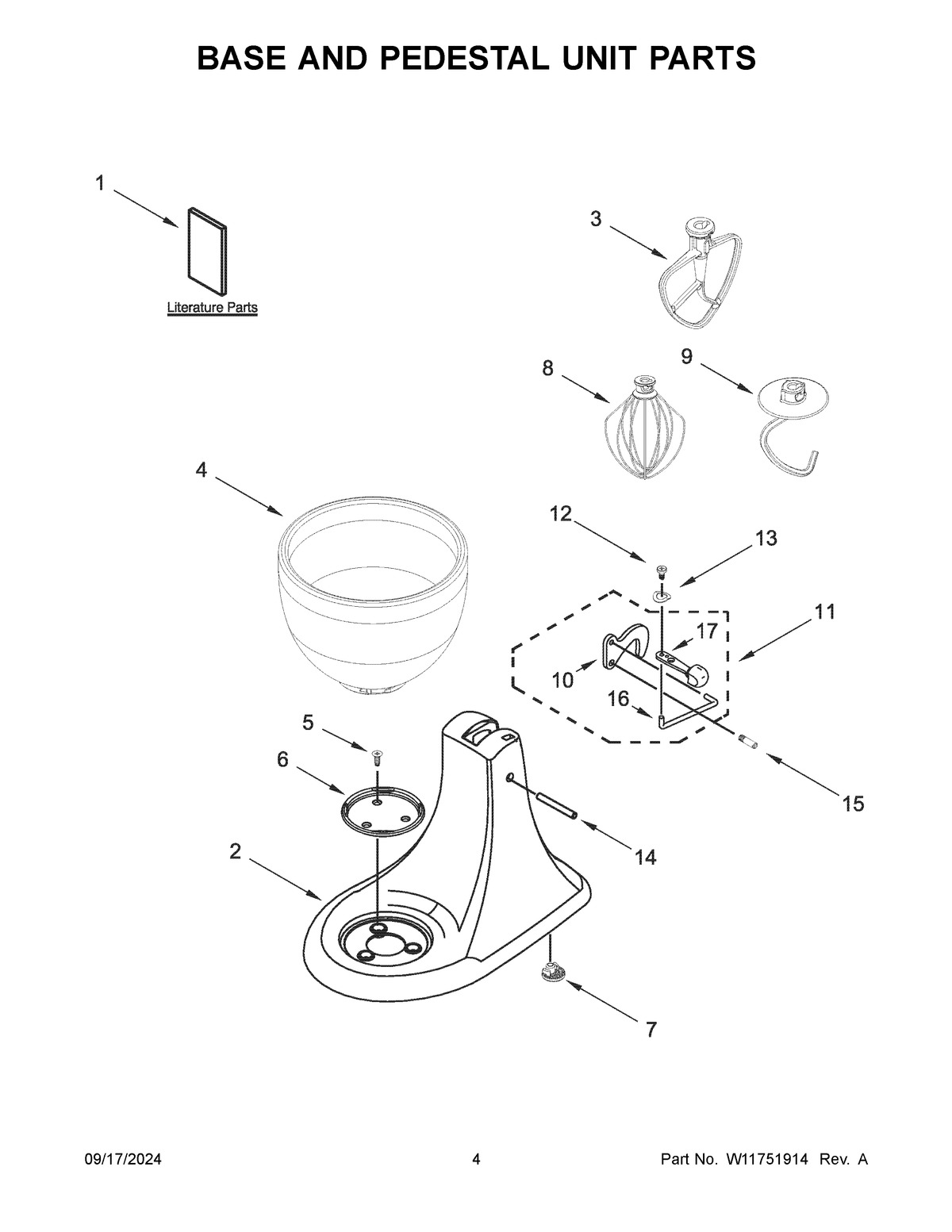

KSM180WSEG5 03 – BASE AND PEDESTAL UNIT PARTS

KSM180WSEG5 03 – BASE AND PEDESTAL UNIT PARTS

Written by

in

KSM180WSEG5 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1OWNER'S MANUAL
2PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
3W11305076 Whirlpool Mixer Beater
4BOWL, 5 QT WOOD
5SCREW
6WPW10191926 Whirlpool Cap Screw
7FOOT
8WHIP, WIRE
9W11305078 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11LATCH, LINK, AND LEVER ASSY (FORBIDDEN FOREST)
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14WP16910 Whirlpool Dowel Pin
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17LEVER, LATCH (FORBIDDEN FOREST)
