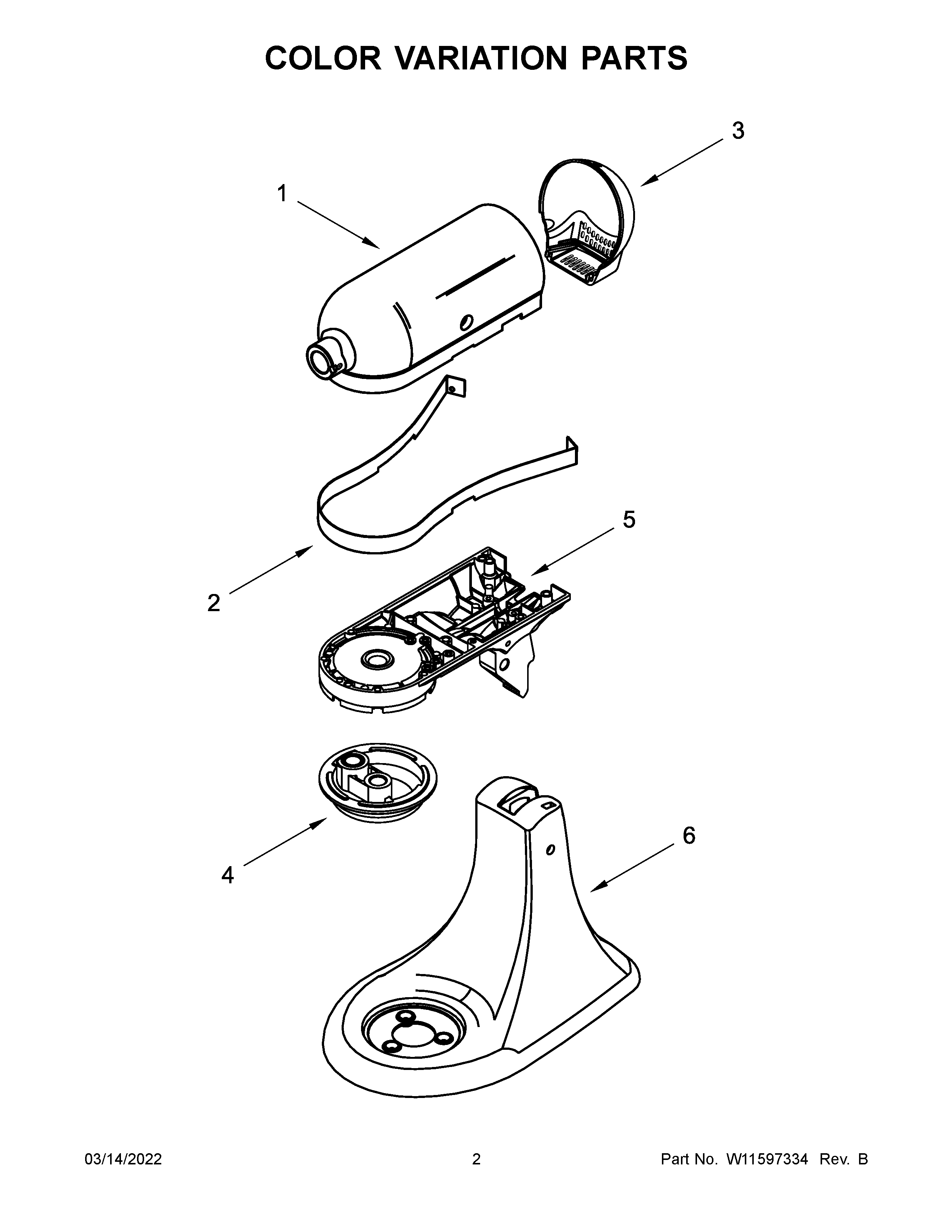

KSM192XDCU0 02 – COLOR VARIATION PARTS

KSM192XDCU0 02 – COLOR VARIATION PARTS

Written by

in

KSM192XDCU0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1DMOTOR HOUSING (MATTE DRIED ROSE)
1LMOTOR HOUSING (SILVER)
1F9704025 Whirlpool Housing Assembly
1KMOTOR HOUSING (PISTACHIO)
1A9704790 Whirlpool Housing
1EMOTOR HOUSING (EMPIRE RED)
1IMotor Housing (Onyx Black)
1CW10350463 Whirlpool Housing
1MMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1MOTOR HOUSING (AGAVE)
1BMOTOR HOUSING (BLACK MATTE)
1GMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1NMotor Housing (White)
1JMOTOR HOUSING (PASSION/SIGNATURE RED)
1HMOTOR HOUSING (MINERAL WATER BLUE)
2CABINET (NOT A SERVICEABLE PART)
3ME
3GWPL W11113835
3DEND COVER (MATTE DRIED ROSE)
3A9704805 Whirlpool Cover Assembly
3JWPL W11298415
3F9704029 Whirlpool Cover Assembly
3CW10350456 Whirlpool Cover Assembly
3BWPL W10885707
3NEND COVER-White
3IEND COVER (ONYX BLACK)
3HEND COVER (MINERAL WATER BLUE)
3LEND COVER (SILVER)
3K9706841 Whirlpool Cover
3EEND COVER (EMPIRE RED)
3END COVER (AGAVE)
4JWPL W11298422
4PLANETARY (AGAVE)
4KPLANETARY (PISTACHIO)
4HPLANETARY (MINERAL WATER BLUE)
4A9704797 Whirlpool Planetary Mixing
4BW11170306 Whirlpool Planetary Assembly
4GW11113886 Whirlpool Planetary Mixer
4IPLANETARY-Onyx Black
4MWPL W11209470
4NPLANETARY-White
4F9706670 Whirlpool Planetary
4LPLANETARY (SILVER)
4EPLANETARY (EMPIRE RED)
4CW10350465 Whirlpool Planetary Mixer
4DWPL W11209496
5JWPL W11298417
5HWPL W11444671
5DWPL W11209493
5K9706832 Whirlpool Gearcase
5MW11209465 Whirlpool Gearcase
5LW10349276 Whirlpool Gearcase
5BWPL W10885699
5NLOWER GEARCASE-White
5GWPL W11113859
5F9706662 Whirlpool Gearcase Assembly
5ELOWER GEARCASE-Empire Red
5WPL W11579600
5ILOWER GEARCASE (ONYX BLACK)
5ALOWER GEARCASE (IMPERIAL BLACK)
5CLOWER GEARCASE (CONTOUR SILVER)
6MPEDESTAL (BLUE VELVET)
6DW11231606 Whirlpool Pedestal
6GWPL W11113853
6JWPL W11298419
6IPedestal w/Feet (Onyx Black)
6N3179260 Whirlpool Pedestal
6HWPL W11444670
6BWPL W10885695
6KPEDESTAL W/FEET (PISTACHIO)
6CPEDESTAL W/FEET (CONTOUR SILVER)
6A9707100 Whirlpool Pedestal
6FWPL 9706684
6LPEDESTAL WITH FEET (SILVER)
6EW11131262 Whirlpool Pedestal
6WPL W11579599
