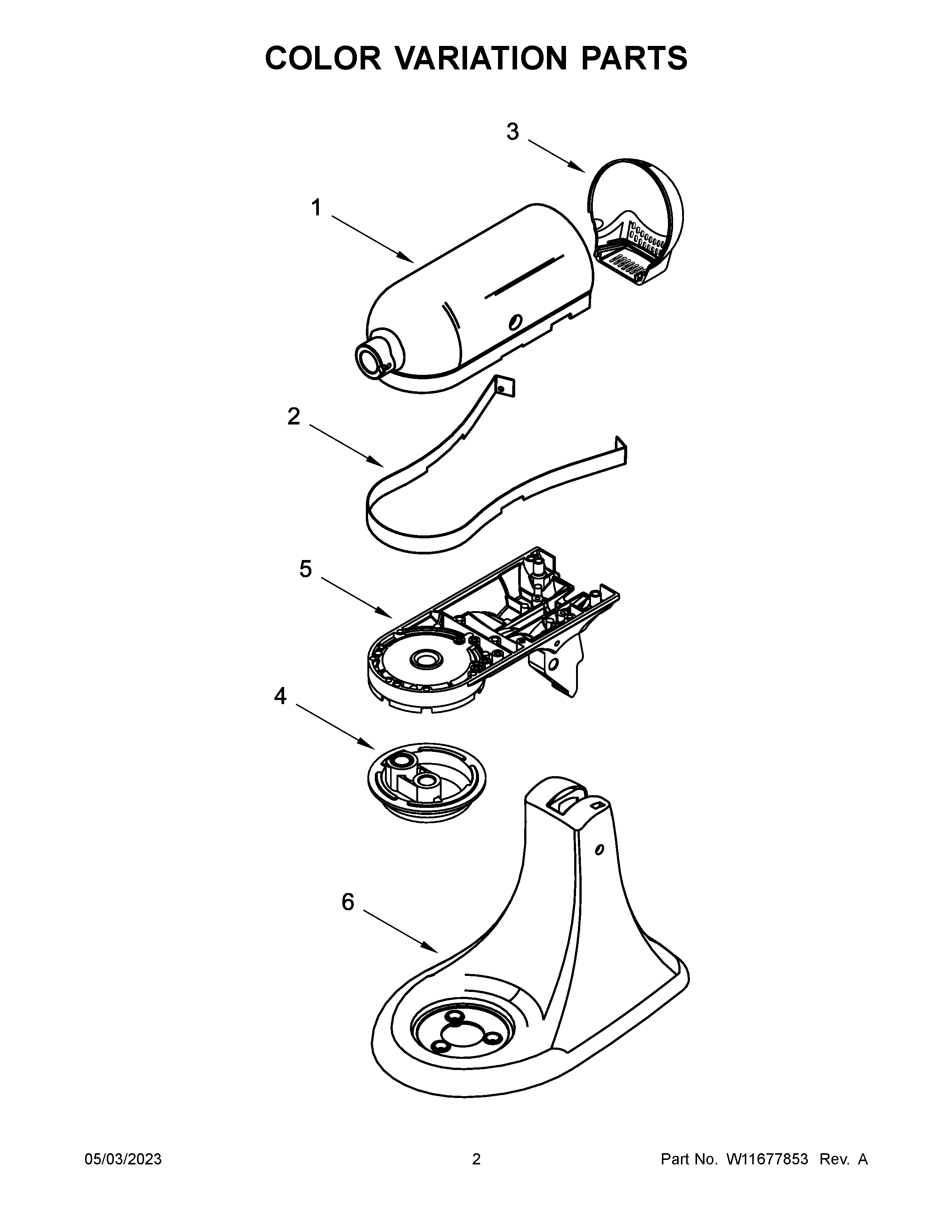

KSM192XDVB5 02 – COLOR VARIATION PARTS

KSM192XDVB5 02 – COLOR VARIATION PARTS

Written by

in

KSM192XDVB5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1AMOTOR HOUSING (BLACK MATTE)
1MMOTOR HOUSING (PISTACHIO)
1DMOTOR HOUSING (CONTOUR SILVER)
1HMOTOR HOUSING (METALLIC CHROME)
1JMOTOR HOUSING (MINERAL WATER BLUE)
1FMOTOR HOUSING (JUNIPER)
1CMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1LMOTOR HOUSING (PASSION/SIGNATURE RED)
1GMOTOR HOUSING (MATTE DRIED ROSE)
1IMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1EMOTOR HOUSING (EMPIRE RED)
1BMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1NMOTOR HOUSING (PORCELAIN)
1PMOTOR HOUSING (WHITE)
1OMOTOR HOUSING (SILVER/SILVER TREAD)
1MOTOR HOUSING (AGAVE)
1KMOTOR HOUSING (ONYX BLACK)
2TRIM BAND (DARK PLATINUM)
3LWPL W11298415
3KEND COVER (ONYX BLACK)
3NEND COVER (PORCELAIN)
3M9706841 Whirlpool Cover
3END COVER (AGAVE)
3C9704805 Whirlpool Cover Assembly
3IWPL W11113835
3AWPL W10885707
3BE
3JEND COVER (MINERAL WATER BLUE)
3EEND COVER (EMPIRE RED)
3FEND COVER (JUNIPER)
3DW10350456 Whirlpool Cover Assembly
3H9704029 Whirlpool Cover Assembly
3OEND COVER (SILVER)
3GEND COVER (MATTE DRIED ROSE)
3PEND COVER-White
4FPLANETARY (JUNIPER)
4PLANETARY (AGAVE)
4MPLANETARY (PISTACHIO)
4NPLANETARY (PORCELAIN)
4JPLANETARY (MINERAL WATER BLUE)
4PPLANETARY-White
4AW11170306 Whirlpool Planetary Assembly
4BWPL W11209470
4GWPL W11209496
4DW10350465 Whirlpool Planetary Mixer
4EPLANETARY (EMPIRE RED)
4OPLANETARY (SILVER)
4H9706670 Whirlpool Planetary
4KPLANETARY-Onyx Black
4IW11113886 Whirlpool Planetary Mixer
4C9704797 Whirlpool Planetary Mixing
4LWPL W11298422
5CLOWER GEARCASE (IMPERIAL BLACK)
5BW11209465 Whirlpool Gearcase
5OW10349276 Whirlpool Gearcase
5AWPL W10885699
5IWPL W11113859
5LWPL W11298417
5PLOWER GEARCASE-White
5JWPL W11444671
5NWPL W11647806
5KLOWER GEARCASE (ONYX BLACK)
5DLOWER GEARCASE (CONTOUR SILVER)
5GWPL W11209493
5M9706832 Whirlpool Gearcase
5FWPL W11684969
5WPL W11579600
5ELOWER GEARCASE-Empire Red
5H9706662 Whirlpool Gearcase Assembly
6WPL W11579599
6KPedestal w/Feet (Onyx Black)
6LWPL W11298419
6IWPL W11113853
6BPEDESTAL (BLUE VELVET)
6P3179260 Whirlpool Pedestal
6NWPL W11647809
6C9707100 Whirlpool Pedestal
6DPEDESTAL W/FEET (CONTOUR SILVER)
6MPEDESTAL W/FEET (PISTACHIO)
6OPEDESTAL WITH FEET (SILVER)
6EW11131262 Whirlpool Pedestal
6HWPL 9706684
6AWPL W10885695
6FWPL W11684968
6JWPL W11444670
6GW11231606 Whirlpool Pedestal
