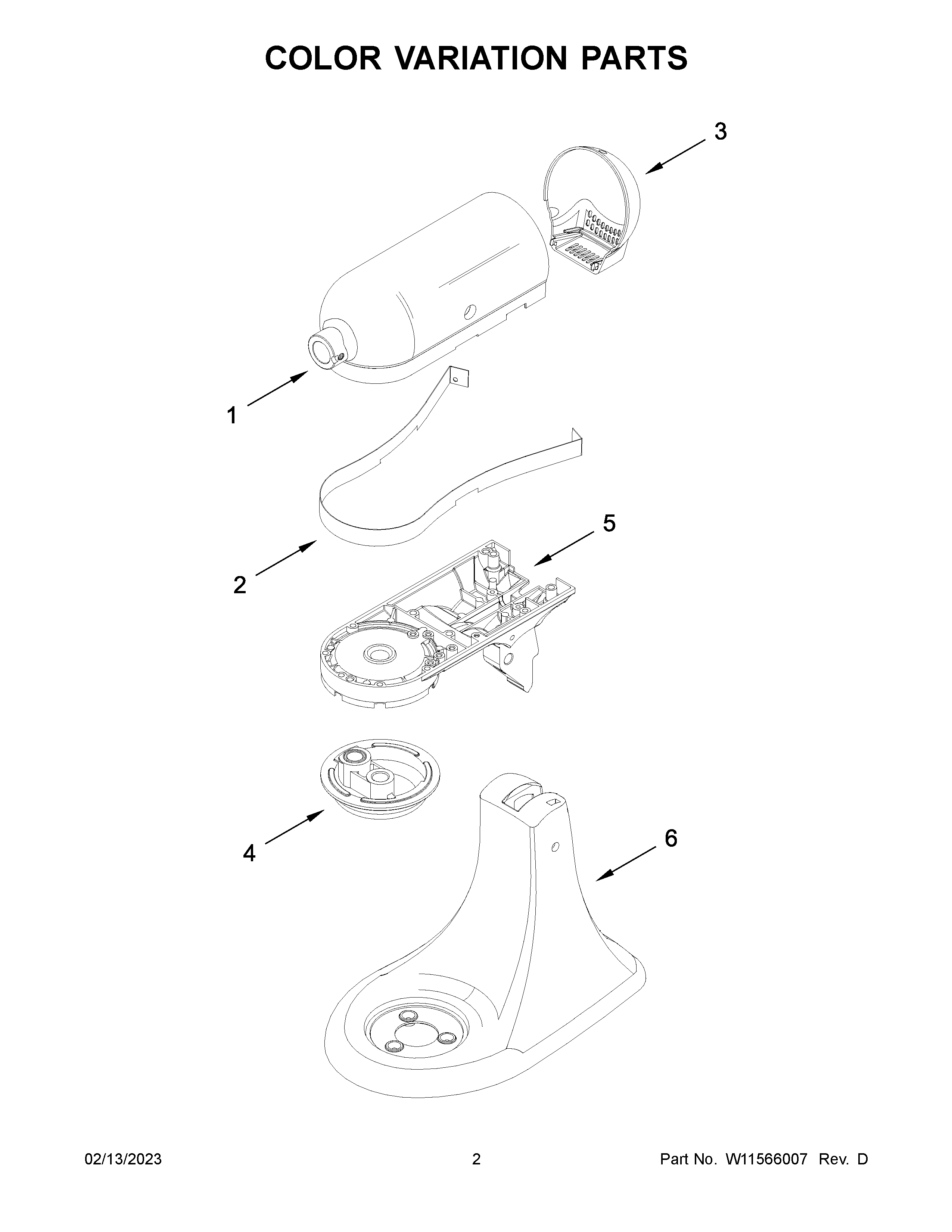

KSM195PSBE0 02 – COLOR VARIATION PARTS

Products

Position	Product
1E	MOTOR HOUSING (EMPIRE RED)
1A	9704790 Whirlpool Housing
1H	MOTOR HOUSING (MINERAL WATER BLUE)
1	MOTOR HOUSING (BEETROOT)
1B	MOTOR HOUSING (BLACK MATTE)
1G	MOTOR HOUSING (HIBISCUS)
1C	W10239115 Whirlpool Housing
1F	MOTOR HOUSING (FEATHER PINK)
1J	MOTOR HOUSING (PISTACHIO)
1D	W10350463 Whirlpool Housing
1I	WPW10444230 Whirlpool Housing
2	TRIM BAND (DARK PLATINUM)
3F	END COVER (FEATHER PINK)
3B	WPL W10885707
3I	WPW10435298 Whirlpool Cover
3C	WPW10239110 Whirlpool Cover
3	W11548796 Whirlpool Cover
3H	END COVER (MINERAL WATER BLUE)
3G	END COVER (HIBISCUS)
3J	9706841 Whirlpool Cover
3D	W10350456 Whirlpool Cover Assembly
3E	END COVER (EMPIRE RED)
3A	9704805 Whirlpool Cover Assembly
4I	WPW10444039 Whirlpool Planetary Mixer
4H	PLANETARY (MINERAL WATER BLUE)
4C	W10239112 Whirlpool Planetary Mixer
4	PLANETARY (BEETROOT)
4A	9704797 Whirlpool Planetary Mixing
4F	PLANETARY (FEATHER PINK)
4B	W11170306 Whirlpool Planetary Assembly
4G	PLANETARY (HIBISCUS)
4E	PLANETARY (EMPIRE RED)
4J	PLANETARY (PISTACHIO)
4D	W10350465 Whirlpool Planetary Mixer
5B	WPL W10885699
5J	9706832 Whirlpool Gearcase
5F	WPL W11431679
5H	WPL W11444671
5G	WPL W11619366
5C	L
5	LOWER GEARCASE (BEETROOT)
5E	LOWER GEARCASE-Empire Red
5I	WPW10444068 Whirlpool Gearcase Assembly
5A	LOWER GEARCASE (IMPERIAL BLACK)
5D	LOWER GEARCASE (CONTOUR SILVER)
6F	WPL W11444650
6H	WPL W11444670
6A	9707100 Whirlpool Pedestal
6D	PEDESTAL W/FEET (CONTOUR SILVER)
6J	PEDESTAL W/FEET (PISTACHIO)
6E	W11131262 Whirlpool Pedestal
6	WPL W11548798
6B	WPL W10885695
6C	WPL W10239121
6G	WPL W11619364
6I	WPL W11036962
