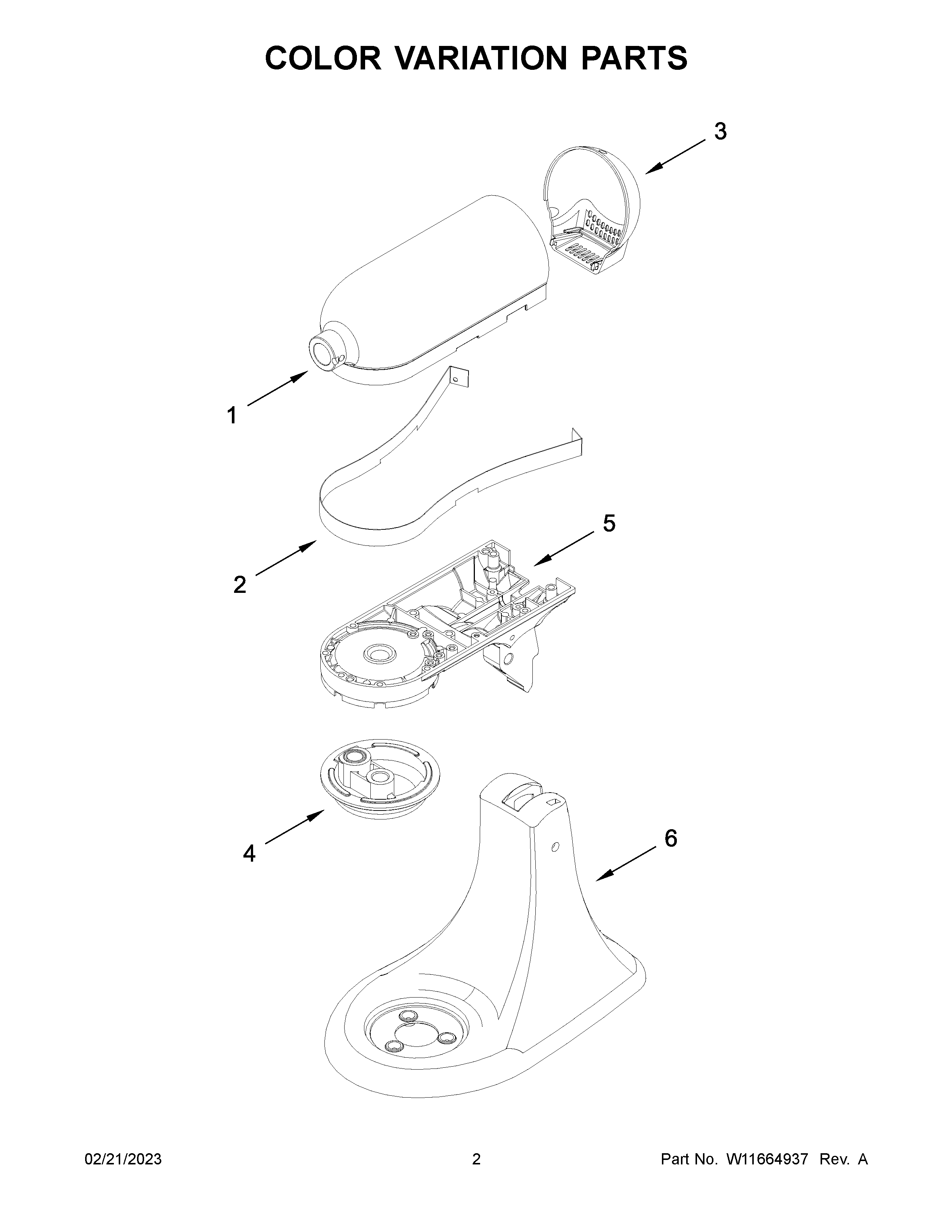

KSM195PSBK5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1CMOTOR HOUSING (CAST IRON/IMPERIAL BLACK)
1BMOTOR HOUSING (CANDY APPLE RED)
1EMOTOR HOUSING (EMPIRE RED)
1FMOTOR HOUSING (JUNIPER)
1KMOTOR HOUSING (PORCELAIN)
1GMOTOR HOUSING (HIBISCUS)
1DMOTOR HOUSING (CONTOUR SILVER)
1HMOTOR HOUSING (MINERAL WATER BLUE)
1IMOTOR HOUSING (BLUE SALT)
1JMOTOR HOUSING (PISTACHIO)
1MOTOR HOUSING (BEETROOT)
1AMOTOR HOUSING (BLACK MATTE)
2TRIM BAND (DARK PLATINUM)
3W11548796 Whirlpool Cover
3BWPW10239110 Whirlpool Cover
3FEND COVER (JUNIPER)
3GEND COVER (HIBISCUS)
3HEND COVER (MINERAL WATER BLUE)
3J9706841 Whirlpool Cover
3IEND COVER (BLUE SALT)
3KEND COVER (PORCELAIN)
3EEND COVER (EMPIRE RED)
3DW10350456 Whirlpool Cover Assembly
3C9704805 Whirlpool Cover Assembly
3AWPL W10885707
4IPLANETARY (BLUE SALT)
4HPLANETARY (MINERAL WATER BLUE)
4GPLANETARY (HIBISCUS)
4FPLANETARY (JUNIPER)
4BW10239112 Whirlpool Planetary Mixer
4PLANETARY (BEETROOT)
4KPLANETARY (PORCELAIN)
4AW11170306 Whirlpool Planetary Assembly
4EPLANETARY (EMPIRE RED)
4C9704797 Whirlpool Planetary Mixing
4DW10350465 Whirlpool Planetary Mixer
4JPLANETARY (PISTACHIO)
5GWPL W11619366
5HWPL W11444671
5BL
5LOWER GEARCASE (BEETROOT)
5IWPL W11681950
5JWPL W11647806
5FWPL W11684969
5DLOWER GEARCASE (CONTOUR SILVER)
5AWPL W10885699
5ELOWER GEARCASE-Empire Red
5CLOWER GEARCASE (IMPERIAL BLACK)
5K9706832 Whirlpool Gearcase
6FWPL W11684968
6GWPL W11619364
6HWPL W11444670
6IWPL W11681949
6BWPL W10239121
6AWPL W10885695
6WPL W11548798
6KPEDESTAL W/FEET (PISTACHIO)
6DPEDESTAL W/FEET (CONTOUR SILVER)
6C9707100 Whirlpool Pedestal
6EW11131262 Whirlpool Pedestal
6JWPL W11647809
