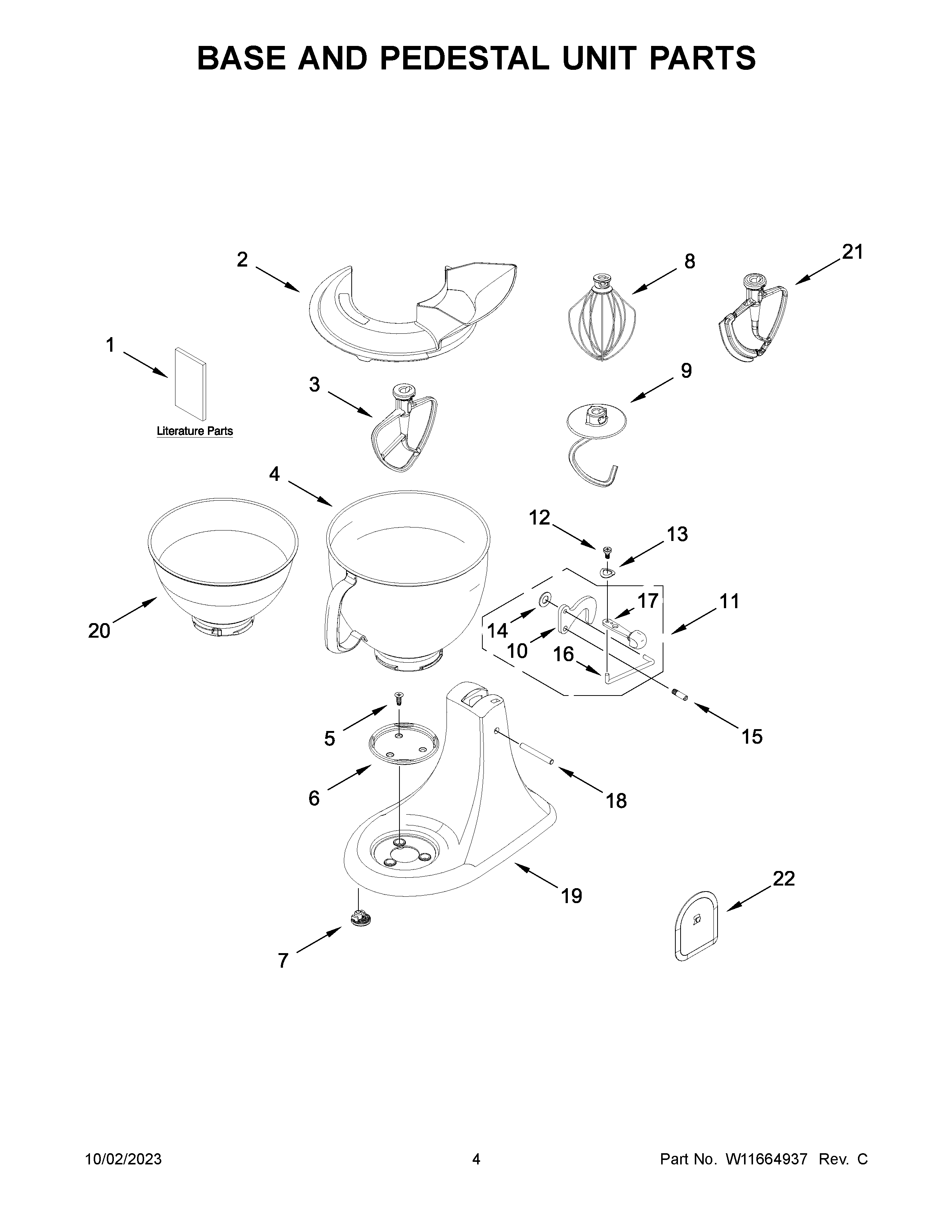

KSM195PSCA5 03 – BASE AND PEDESTAL UNIT PARTS

KSM195PSCA5 03 – BASE AND PEDESTAL UNIT PARTS

Written by

in

KSM195PSCA5 03 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11573560 Whirlpool Pour Shelf
3BEATER, PASTRY (SILENT SILVER)
4BOWL, 5 QT.
5SCREW
6WPW10191926 Whirlpool Cap Screw
7WP9709707 Whirlpool Foot
8WP9704329 Whirlpool Wire Whip
9HOOK, DOUGH (SILENT SILVER)
10W11246352 Whirlpool Latch Mechanism
11LATCH, LINK ASSEMBLY (CHROME)
12SCREW
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17LEVER, LATCH (CHROME)
18WP16910 Whirlpool Dowel Pin
19PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
20BOWL, 3 QUART
21BEATER, WIPING (SILENT SILVER)
22SCRAPER, POT (NYLON)
