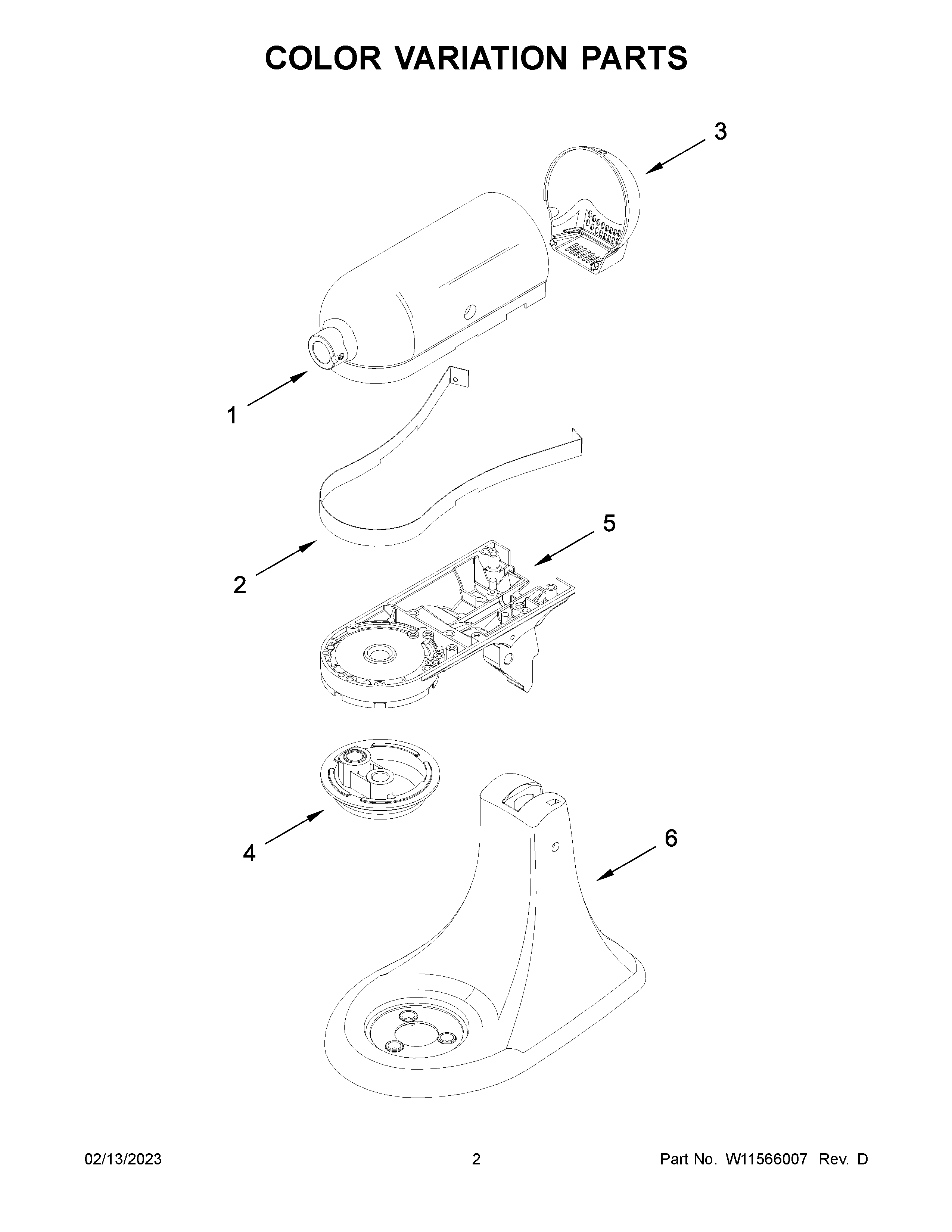

KSM195PSHI0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1EMOTOR HOUSING (EMPIRE RED)
1A9704790 Whirlpool Housing
1HMOTOR HOUSING (MINERAL WATER BLUE)
1MOTOR HOUSING (BEETROOT)
1BMOTOR HOUSING (BLACK MATTE)
1GMOTOR HOUSING (HIBISCUS)
1CW10239115 Whirlpool Housing
1FMOTOR HOUSING (FEATHER PINK)
1JMOTOR HOUSING (PISTACHIO)
1DW10350463 Whirlpool Housing
1IWPW10444230 Whirlpool Housing
2TRIM BAND (DARK PLATINUM)
3FEND COVER (FEATHER PINK)
3BWPL W10885707
3IWPW10435298 Whirlpool Cover
3CWPW10239110 Whirlpool Cover
3W11548796 Whirlpool Cover
3HEND COVER (MINERAL WATER BLUE)
3GEND COVER (HIBISCUS)
3J9706841 Whirlpool Cover
3DW10350456 Whirlpool Cover Assembly
3EEND COVER (EMPIRE RED)
3A9704805 Whirlpool Cover Assembly
4IWPW10444039 Whirlpool Planetary Mixer
4HPLANETARY (MINERAL WATER BLUE)
4CW10239112 Whirlpool Planetary Mixer
4PLANETARY (BEETROOT)
4A9704797 Whirlpool Planetary Mixing
4FPLANETARY (FEATHER PINK)
4BW11170306 Whirlpool Planetary Assembly
4GPLANETARY (HIBISCUS)
4EPLANETARY (EMPIRE RED)
4JPLANETARY (PISTACHIO)
4DW10350465 Whirlpool Planetary Mixer
5BWPL W10885699
5J9706832 Whirlpool Gearcase
5FWPL W11431679
5HWPL W11444671
5GWPL W11619366
5CL
5LOWER GEARCASE (BEETROOT)
5ELOWER GEARCASE-Empire Red
5IWPW10444068 Whirlpool Gearcase Assembly
5ALOWER GEARCASE (IMPERIAL BLACK)
5DLOWER GEARCASE (CONTOUR SILVER)
6FWPL W11444650
6HWPL W11444670
6A9707100 Whirlpool Pedestal
6DPEDESTAL W/FEET (CONTOUR SILVER)
6JPEDESTAL W/FEET (PISTACHIO)
6EW11131262 Whirlpool Pedestal
6WPL W11548798
6BWPL W10885695
6CWPL W10239121
6GWPL W11619364
6IWPL W11036962
