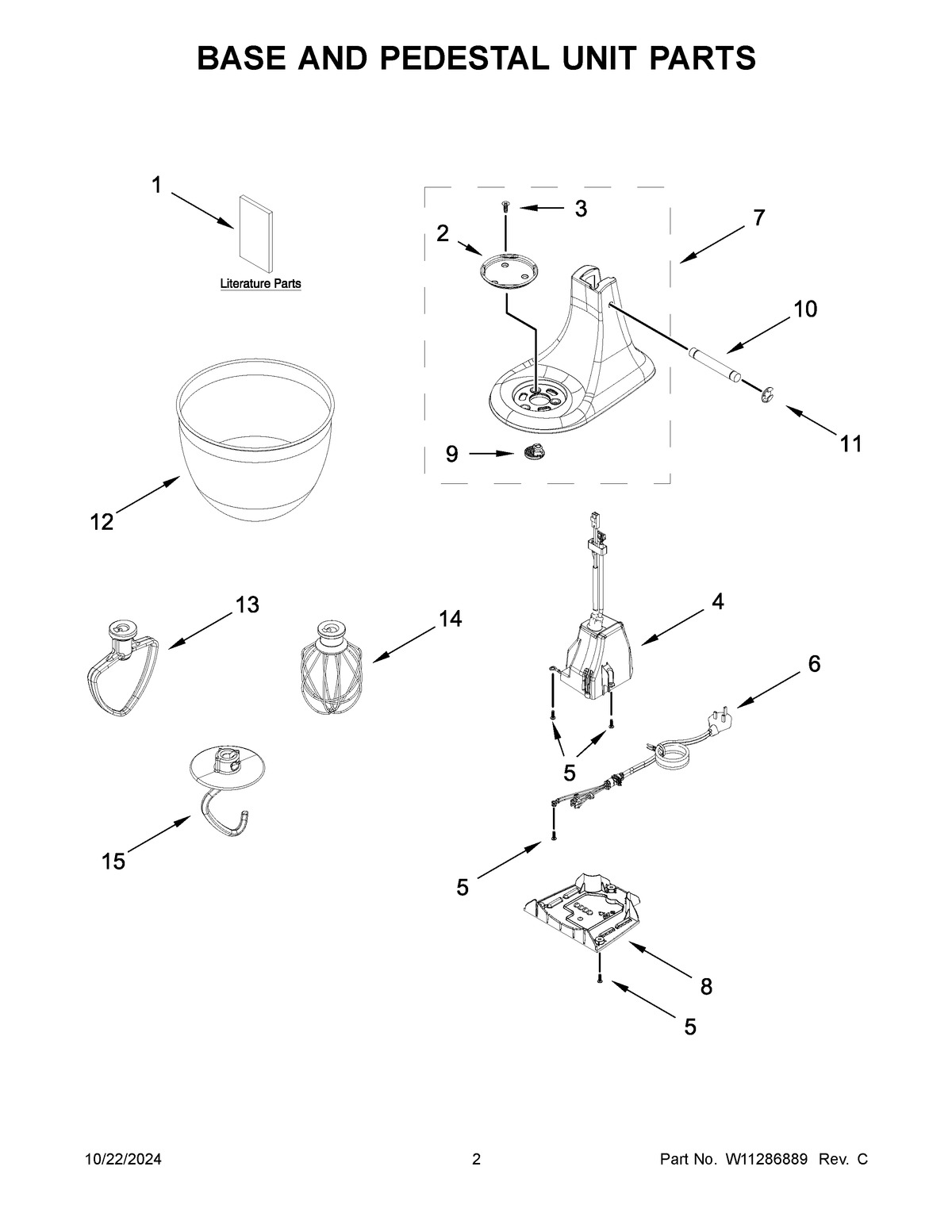

KSM3306QBM0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	QUICK START GUIDE
2	W11189119 Whirlpool Screw Cap
3	SCREW
4	W11112201 Whirlpool Control
5	WP3400814 Whirlpool Screw
6	W11197468 Whirlpool Power Cord
6A	W11197469 Whirlpool Power Cord
7E	W11165900 Whirlpool Pedestal
7	PEDESTAL (AQUA SKY)
7F	PEDESTAL (MEDALLION SILVER)
7G	PEDESTAL (SEA SHIMMER)
7H	PEDESTAL (STARRY NIGHT)
7I	W11165926 Whirlpool Pedestal
7D	PEDESTAL (EMPIRE RED)
7C	PEDESTAL (CONTOUR SILVER)
7B	PEDESTAL (CANDY APPLE)
7A	W10835909 Whirlpool Pedestal Assembly
8	COVER, BOTTOM
9	FOOT
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	GLASS BOWL ASSEMBLY, 3.5 QUART
13	W10747069 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
