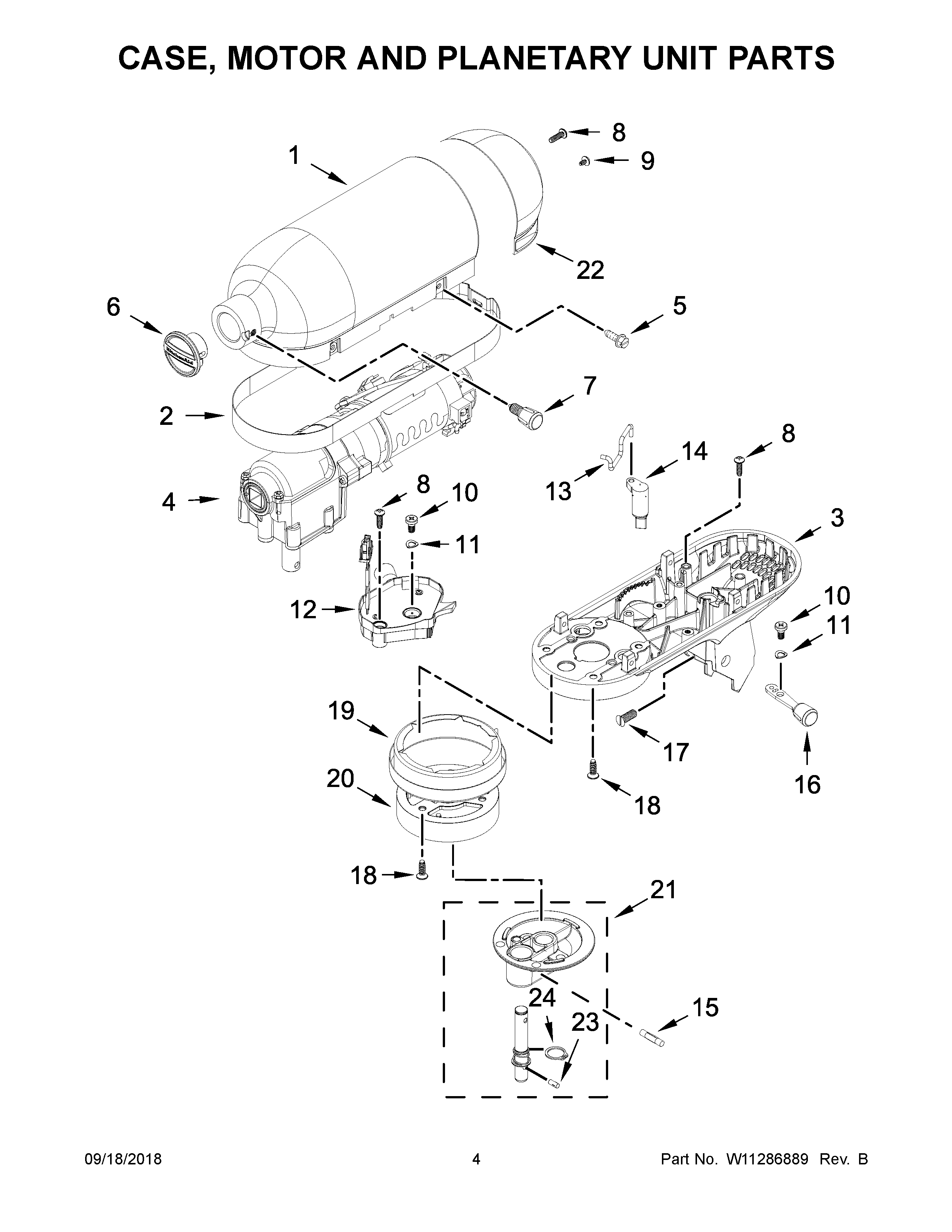

KSM3306XSR0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

KSM3306XSR0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

KSM3306XSR0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1AUPPER HOUSING (BLACK MATTE)
1CW10870579 Whirlpool Housing Assembly
1DUPPER HOUSING (EMPIRE RED)
1UPPER HOUSING (AQUA SKY)
1IUPPER HOUSING (SUGAR PEARL SILVER)
1HUPPER HOUSING (STARRY NIGHT)
1GUPPER HOUSING (SEA SHIMMER)
1EUPPER HOUSING (FROSTED PEARL)
1FUPPER HOUSING (MEDALLION SILVER)
1BUPPER HOUSING (CANDY APPLE)
2W10752933 Whirlpool Trim Band
3DLOWER HOUSING (EMPIRE RED)
3ELOWER HOUSING (FROSTED PEARL)
3HLOWER HOUSING (STARRY NIGHT)
3ILOWER HOUSING (SUGAR PEARL SILVER)
3ALOWER HOUSING (BLACK MATTE)
3GLOWER HOUSING (SEA SHIMMER)
3CLOWER HOUSING (CONTOUR SILVER)
3BLOWER HOUSING (CANDY APPLE)
3FLOWER HOUSING (MEDALLION SILVER)
3LOWER HOUSING (AQUA SKY)
4W10887355 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14HEADLOCK CAM
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21GW11165955 Whirlpool Planetary Assembly
21HWPL W11165942
21IWPL W11165929
21BWPL W10883851
21CWPL W10870573
21DWPL W10870572
21EWPL W11165903
21FWPL W10883860
21AW10835935 Whirlpool Planetary
21WPL W11159235
22EWPL W11165909
22GWPL W11165960
22HWPL W11165947
22WPL W11159213
22AW10835953 Whirlpool Cover Assembly
22FWPL W10883865
22CWPL W10870583
22BWPL W10883855
22DWPL W10870582
22IWPL W11165934
23W11664709 Whirlpool Groove Pin
24WP9703438 Whirlpool Snap Retaining Ring
25WPW10001180 Whirlpool Refrigerator Screw
