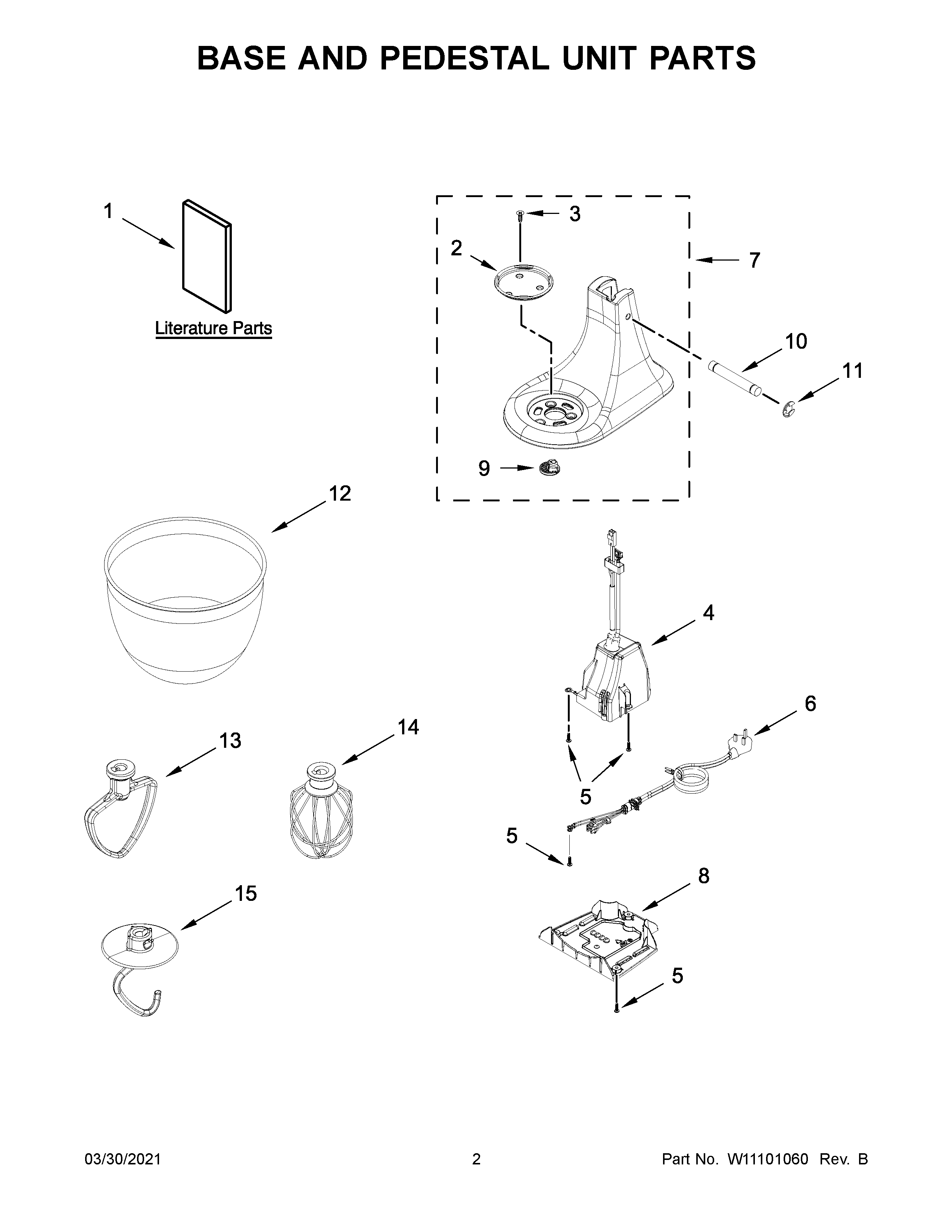

KSM3311QBF0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10747069 Whirlpool Mixer Beater
1	USE & CARE GUIDE
1A	QUICK START GUIDE
2	W11189119 Whirlpool Screw Cap
3	SCREW
4	W11112201 Whirlpool Control
5	WP3400814 Whirlpool Screw
6	W11197468 Whirlpool Power Cord
7F	PEDESTAL (TWILIGHT BLUE)
7	PEDESTAL (ORANGE SORBET)
7D	W10756517 Whirlpool Pedestal
7E	PEDESTAL (HONEYDEW)
7G	PEDESTAL (GUAVA GLAZE)
7C	PEDESTAL (EMPIRE RED)
7A	W10835909 Whirlpool Pedestal Assembly
7B	PEDESTAL (CONTOUR SILVER)
8	COVER, BOTTOM
9	WP9709707 Whirlpool Foot
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	BOWL-MIXER
13	W11161902 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
