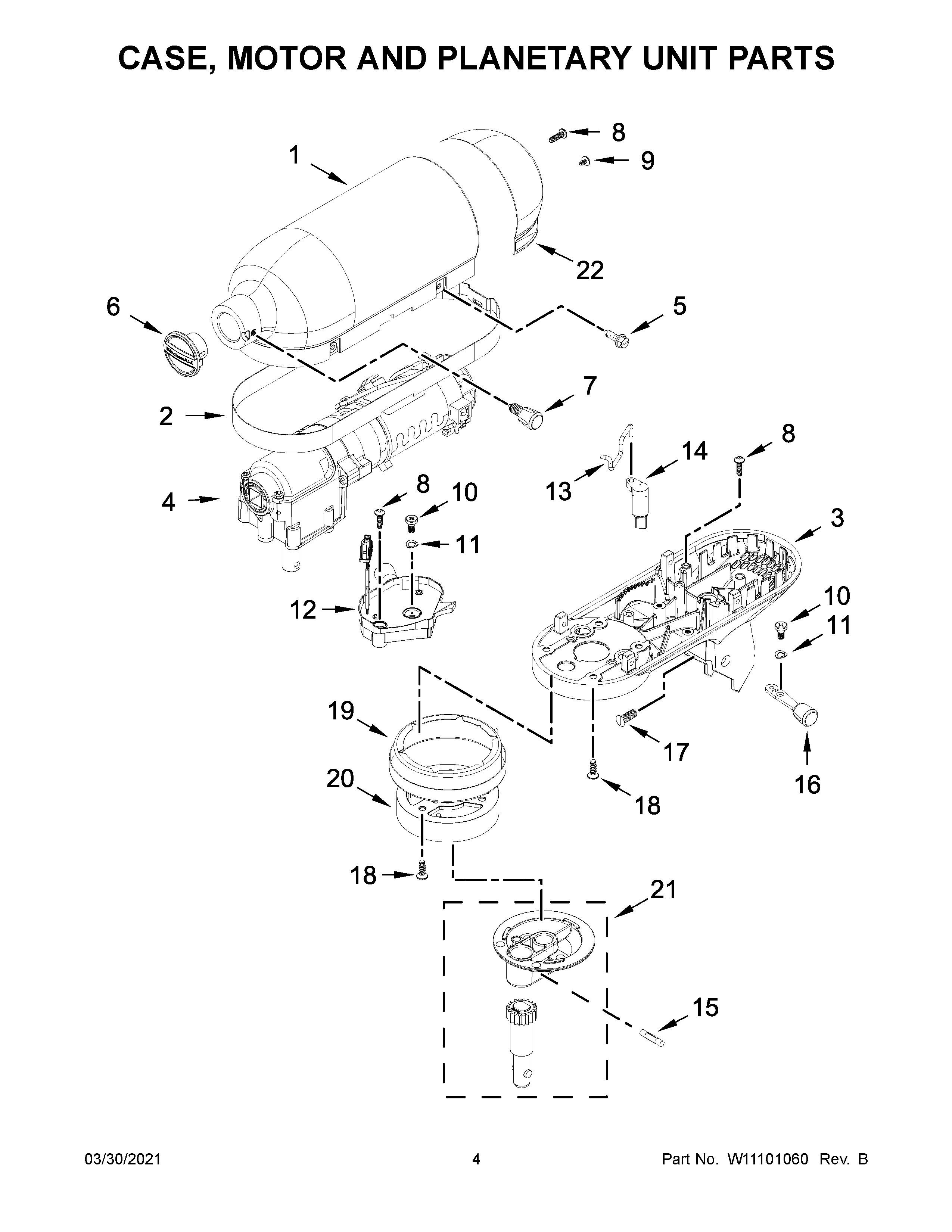

KSM3311QBF0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

KSM3311QBF0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

KSM3311QBF0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1DW10765462 Whirlpool Housing
1FUPPER HOUSING (TWILIGHT BLUE)
1UPPER HOUSING (ORANGE SORBET)
1AUPPER HOUSING (BLACK MATTE)
1EUPPER HOUSING (HONEYDEW)
1GUPPER HOUSING (GUAVA GLAZE)
1CUPPER HOUSING (EMPIRE RED)
1BW10870579 Whirlpool Housing Assembly
2W10752933 Whirlpool Trim Band
3GLOWER HOUSING (GUAVA GLAZE)
3ELOWER HOUSING (HONEYDEW)
3DLOWER HOUSING (HOT SAUCE)
3ALOWER HOUSING (BLACK MATTE)
3CLOWER HOUSING (EMPIRE RED)
3LOWER HOUSING (ORANGE SORBET)
3FLOWER HOUSING (TWILIGHT BLUE)
3BLOWER HOUSING (CONTOUR SILVER)
4W10887355 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14WPL W10840237
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21AW10835935 Whirlpool Planetary
21FWPL W10765474
21WPL W10765477
21DW10750140 Whirlpool Planetary Mixer
21BWPL W10870573
21CWPL W10870572
21EWPL W10835936
21GWPL W10835938
22BWPL W10870583
22FW10765456 Whirlpool Cover Assembly
22W10765458 Whirlpool Cover Assembly
22AW10835953 Whirlpool Cover Assembly
22DW10765455 Whirlpool Cover Assembly
22GWPL W10835956
22CWPL W10870582
22EWPL W10835954
