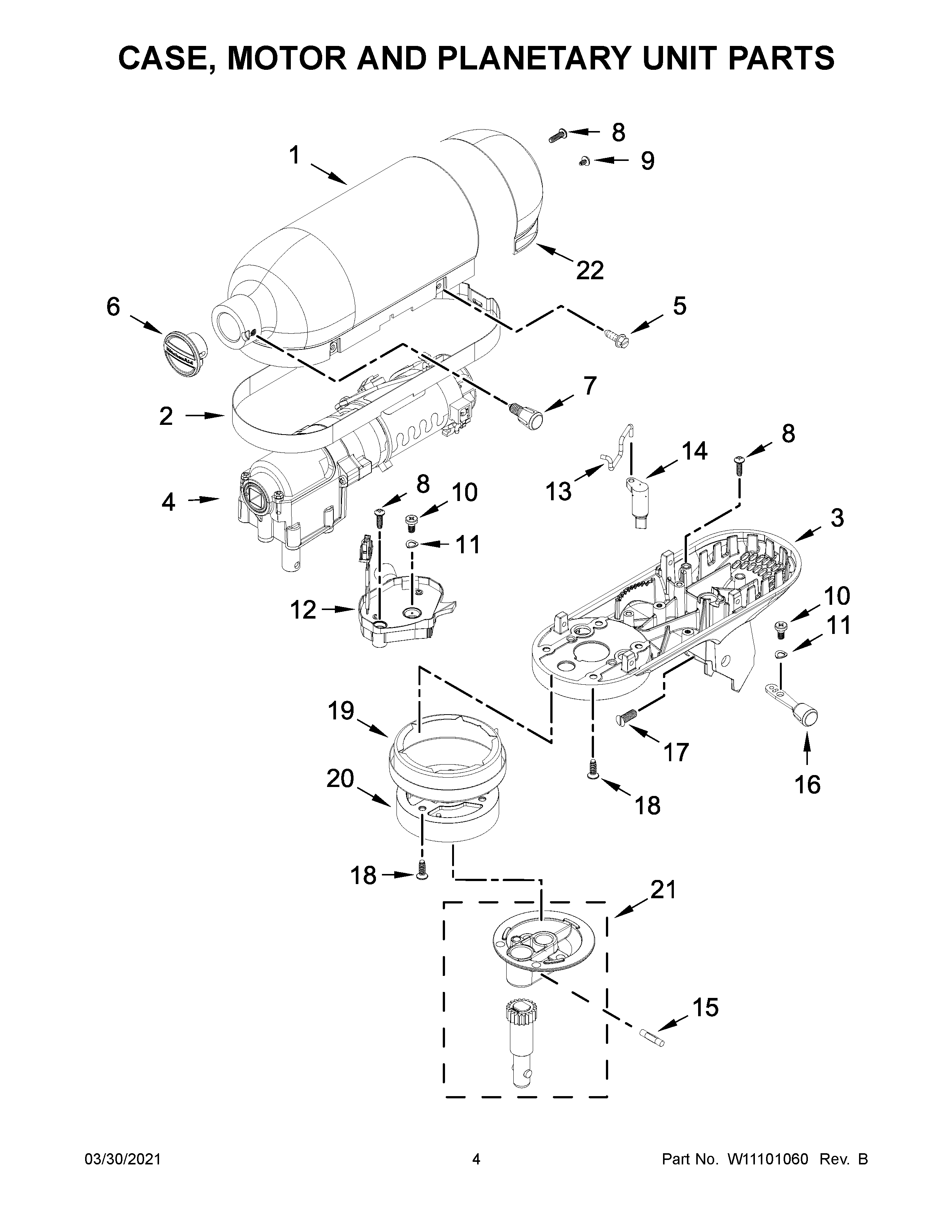

KSM3311QBM0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

Position	Product
1D	W10765462 Whirlpool Housing
1F	UPPER HOUSING (TWILIGHT BLUE)
1	UPPER HOUSING (ORANGE SORBET)
1A	UPPER HOUSING (BLACK MATTE)
1E	UPPER HOUSING (HONEYDEW)
1G	UPPER HOUSING (GUAVA GLAZE)
1C	UPPER HOUSING (EMPIRE RED)
1B	W10870579 Whirlpool Housing Assembly
2	W10752933 Whirlpool Trim Band
3G	LOWER HOUSING (GUAVA GLAZE)
3E	LOWER HOUSING (HONEYDEW)
3D	LOWER HOUSING (HOT SAUCE)
3A	LOWER HOUSING (BLACK MATTE)
3C	LOWER HOUSING (EMPIRE RED)
3	LOWER HOUSING (ORANGE SORBET)
3F	LOWER HOUSING (TWILIGHT BLUE)
3B	LOWER HOUSING (CONTOUR SILVER)
4	W10887355 Whirlpool Motor
5	WPW10068250 Whirlpool Dishwasher Screw
6	W11048596 Whirlpool Hub Chrome Cap
7	W11109470 Whirlpool Screw Assembly
8	WP3400814 Whirlpool Screw
9	W10853069 Whirlpool Screw
10	WP110679 Whirlpool Screw
11	WP116241 Whirlpool Washer
12	W10887360 Whirlpool Speed Control
13	WPL W10772250
14	WPL W10840237
15	WP9705443 Whirlpool Pin Groove
16	W11131252 Whirlpool Speed Lever
17	W11028216 Whirlpool Screw
18	WPL W10830178
19	W11129879 Whirlpool Drip Ring
20	WPL W10749720
21A	W10835935 Whirlpool Planetary
21F	WPL W10765474
21	WPL W10765477
21D	W10750140 Whirlpool Planetary Mixer
21B	WPL W10870573
21C	WPL W10870572
21E	WPL W10835936
21G	WPL W10835938
22B	WPL W10870583
22F	W10765456 Whirlpool Cover Assembly
22	W10765458 Whirlpool Cover Assembly
22A	W10835953 Whirlpool Cover Assembly
22D	W10765455 Whirlpool Cover Assembly
22G	WPL W10835956
22C	WPL W10870582
22E	WPL W10835954
