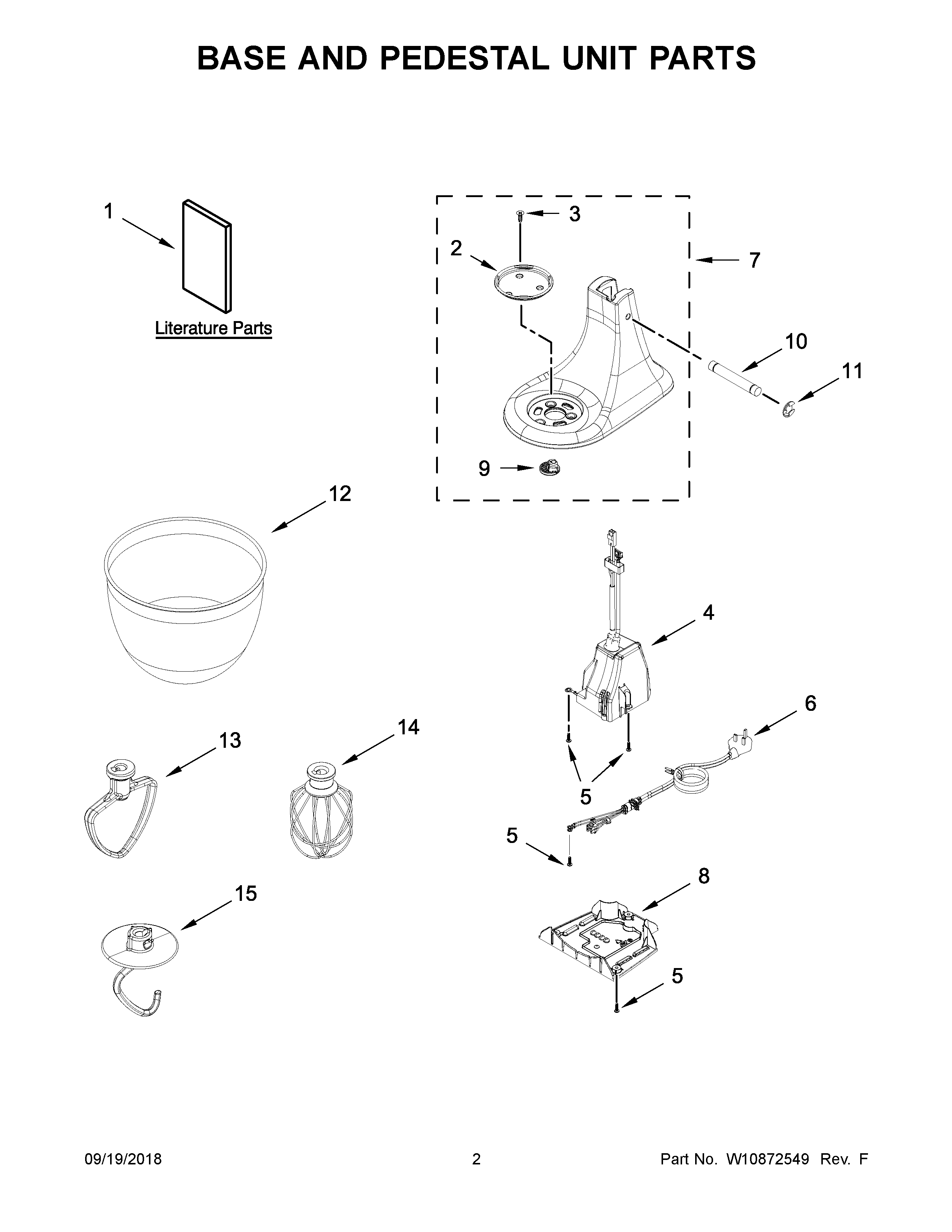

KSM3311XBF0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	QUICK START GUIDE
2	W11189119 Whirlpool Screw Cap
3	SCREW
4	W11112201 Whirlpool Control
5	WP3400814 Whirlpool Screw
6	W11197468 Whirlpool Power Cord
6A	W11197469 Whirlpool Power Cord
7L	PEDESTAL (ORANGE SORBET)
7M	PEDESTAL (TWILIGHT BLUE)
7	PEDESTAL (AQUA SKY)
7I	PEDESTAL (LIQUID GRAPHITE)
7A	PEDESTAL (BIRD OF PARADISE)
7K	PEDESTAL (MATTE WHITE)
7J	PEDESTAL (MATTE GRAY)
7F	PEDESTAL (HONEYDEW)
7D	PEDESTAL (EMPIRE RED)
7C	PEDESTAL (CONTOUR SILVER)
7B	W10835909 Whirlpool Pedestal Assembly
7E	PEDESTAL (GUAVA GLAZE)
7G	W10756517 Whirlpool Pedestal
7H	PEDESTAL (ICE)
8	COVER, BOTTOM
9	WP9709707 Whirlpool Foot
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	BOWL-MIXER
13	W11161902 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
