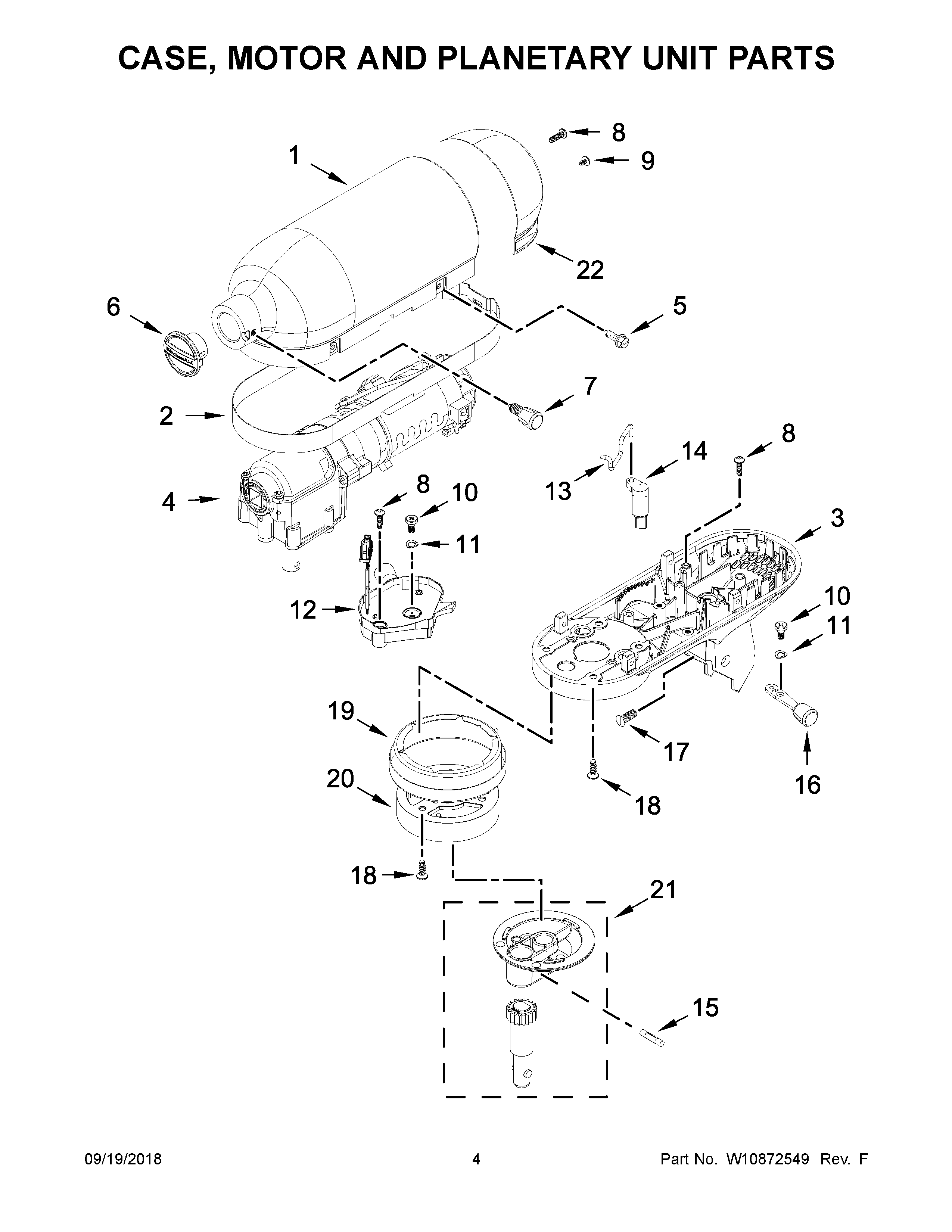

KSM3311XGU0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

KSM3311XGU0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

KSM3311XGU0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1AUPPER HOUSING (BIRD OF PARADISE)
1GW10765462 Whirlpool Housing
1HW10765465 Whirlpool Housing Assembly
1BUPPER HOUSING (BLACK MATTE)
1JUPPER HOUSING (MATTE GRAY)
1KUPPER HOUSING (MATTE WHITE)
1MUPPER HOUSING (ORANGE SORBET)
1IUPPER HOUSING (LIQUID GRAPHITE)
1UPPER HOUSING (AQUA SKY)
1FUPPER HOUSING (HONEYDEW)
1DUPPER HOUSING (EMPIRE RED)
1CW10870579 Whirlpool Housing Assembly
1EUPPER HOUSING (GUAVA GLAZE)
1LUPPER HOUSING (TWILIGHT BLUE)
2W10752933 Whirlpool Trim Band
3KLOWER HOUSING (MATTE WHITE)
3BLOWER HOUSING (BLACK MATTE)
3JLOWER HOUSING (MATTE GRAY)
3LLOWER HOUSING (ORANGE SORBET)
3MLOWER HOUSING (TWILIGHT BLUE)
3FLOWER HOUSING (HONEYDEW)
3ALOWER HOUSING (BIRD OF PARADISE)
3HLOWER HOUSING (ICE)
3GLOWER HOUSING (HOT SAUCE)
3LOWER HOUSING (AQUA SKY)
3ILOWER HOUSING (LIQUID GRAPHITE)
3CLOWER HOUSING (CONTOUR SILVER)
3DLOWER HOUSING (EMPIRE RED)
3ELOWER HOUSING (GUAVA GLAZE)
4W10887355 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14WPL W10840237
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21JWPL W10835934
21HWPL W10765476
21BW10835935 Whirlpool Planetary
21FWPL W10835936
21WPL W11159235
21EWPL W10835938
21DWPL W10870572
21CWPL W10870573
21KWPL W10835933
21LWPL W10765477
21MWPL W10765474
21GW10750140 Whirlpool Planetary Mixer
21IWPL W11159236
21AWPL W11231694
22WPL W11159213
22IWPL W11159214
22BW10835953 Whirlpool Cover Assembly
22MW10765456 Whirlpool Cover Assembly
22CWPL W10870583
22DWPL W10870582
22EWPL W10835956
22FWPL W10835954
22GW10765455 Whirlpool Cover Assembly
22HWPL W10765460
22JWPL W10835952
22KWPL W10835951
22LW10765458 Whirlpool Cover Assembly
22AWPL W11231692
