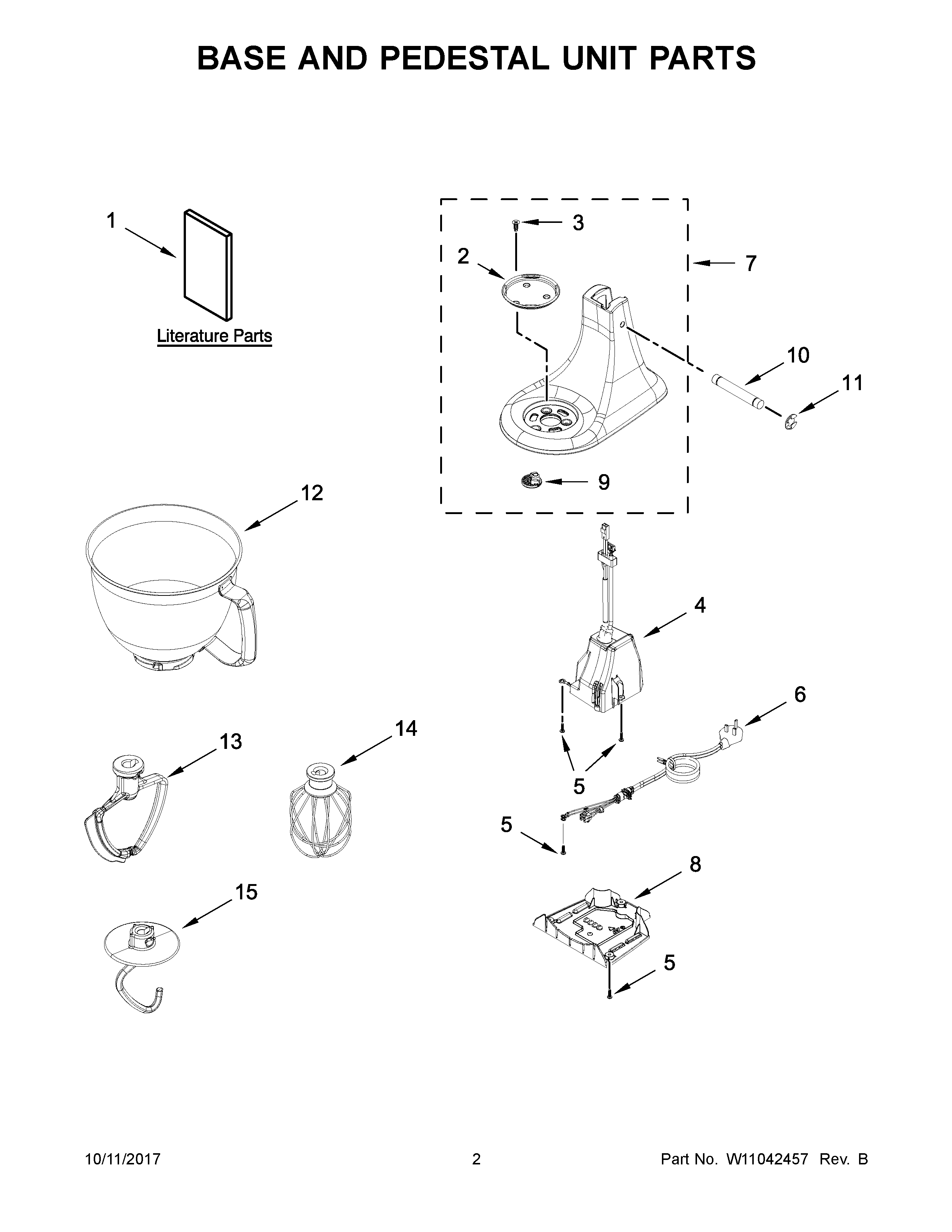

KSM3316PFW0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	QUICK START GUIDE
2	W11189119 Whirlpool Screw Cap
3	SCREW
4	W11112201 Whirlpool Control
5	WP3400814 Whirlpool Screw
6A	W11197469 Whirlpool Power Cord
6	W11197468 Whirlpool Power Cord
7L	PEDESTAL (MATTE MILKSHAKE)
7J	PEDESTAL (INK BLUE)
7D	PEDESTAL (MATTE BLACK VIOLET)
7A	PEDESTAL (MATTE AVOCADO)
7	PEDESTAL (AQUA SKY)
7M	PEDESTAL (SILK PINK)
7N	PEDESTAL (TWILIGHT BLUE)
7B	PEDESTAL (ORANGE SORBET)
7C	W10835909 Whirlpool Pedestal Assembly
7G	PEDESTAL (GUAVA GLAZE)
7I	PEDESTAL (HONEYDEW)
7H	W10756517 Whirlpool Pedestal
7K	PEDESTAL (ICE)
7E	PEDESTAL (MATTE GRAY)
7F	PEDESTAL (MATTE WHITE)
8	COVER, BOTTOM
9	WP9709707 Whirlpool Foot
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	W11085798 Whirlpool Mixer Bowl
13	W10747069 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
