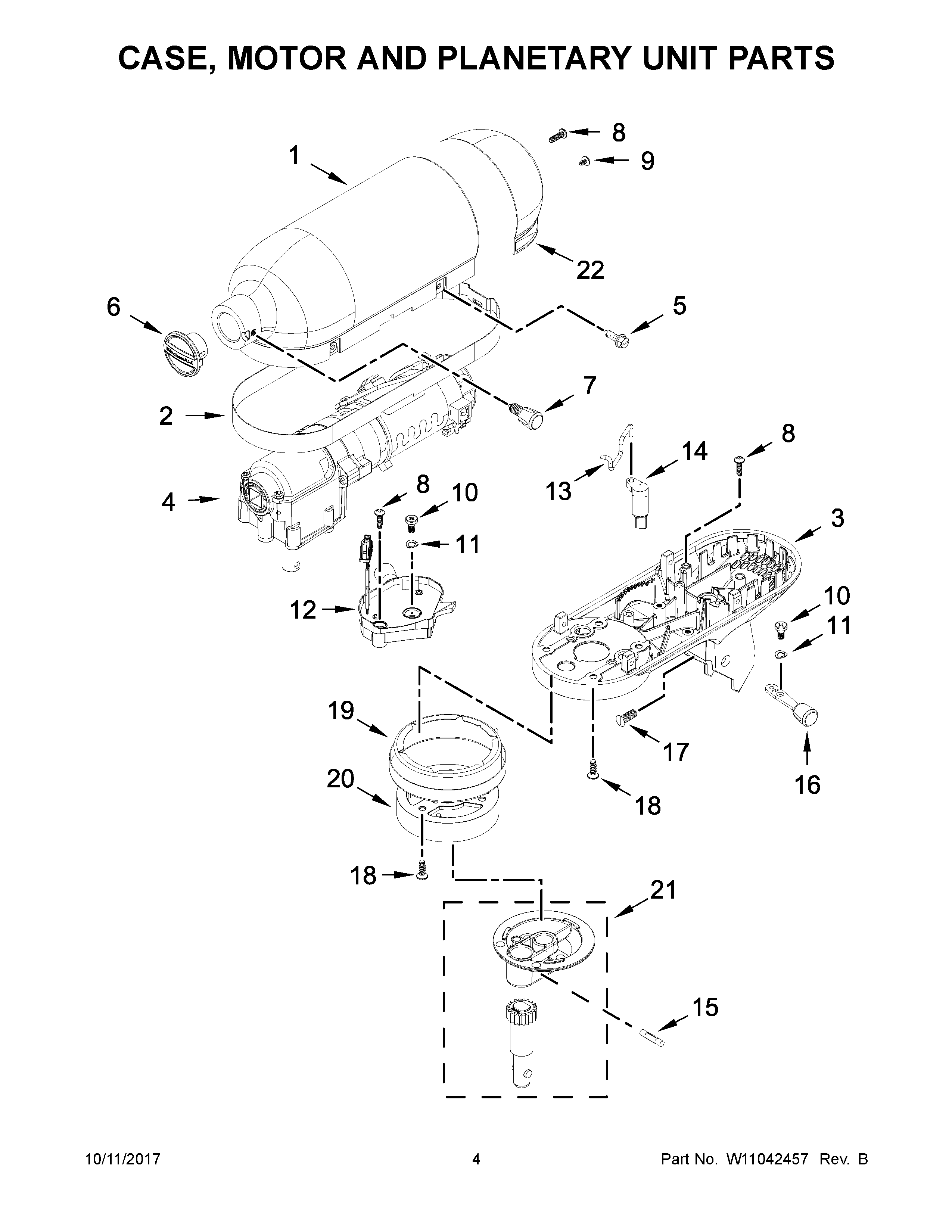

KSM3316PHW0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1FUPPER HOUSING (MATTE WHITE)
1CUPPER HOUSING (BLACK MATTE)
1EUPPER HOUSING (MATTE GRAY)
1BUPPER HOUSING (ORANGE SORBET)
1NUPPER HOUSING (TWILIGHT BLUE)
1MUPPER HOUSING (SILK PINK)
1LUPPER HOUSING (MATTE MILKSHAKE)
1JUPPER HOUSING (INK BLUE)
1DUPPER HOUSING (MATTE BLACK VIOLET)
1AUPPER HOUSING (MATTE AVOCADO)
1KW10765465 Whirlpool Housing Assembly
1HW10765462 Whirlpool Housing
1UPPER HOUSING (AQUA SKY)
1GUPPER HOUSING (GUAVA GLAZE)
1IUPPER HOUSING (HONEYDEW)
2W10752933 Whirlpool Trim Band
3LLOWER HOUSING (MATTE MILKSHAKE)
3JLOWER HOUSING (INK BLUE)
3DLOWER HOUSING (MATTE BLACK VIOLET)
3ALOWER HOUSING (MATTE AVOCADO)
3NLOWER HOUSING (TWILIGHT BLUE)
3BLOWER HOUSING (ORANGE SORBET)
3FLOWER HOUSING (MATTE WHITE)
3ELOWER HOUSING (MATTE GRAY)
3KLOWER HOUSING (ICE)
3HLOWER HOUSING (HOT SAUCE)
3ILOWER HOUSING (HONEYDEW)
3GLOWER HOUSING (GUAVA GLAZE)
3LOWER HOUSING (AQUA SKY)
3MLOWER HOUSING (SILK PINK)
3CLOWER HOUSING (BLACK MATTE)
4W10887355 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14WPL W10840237
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21NWPL W10765474
21LWPL W11176578
21JWPL W11176521
21DWPL W11176590
21AWPL W11113799
21WPL W11159235
21GWPL W10835938
21IWPL W10835936
21HW10750140 Whirlpool Planetary Mixer
21KWPL W10765476
21CW10835935 Whirlpool Planetary
21EWPL W10835934
21FWPL W10835933
21BWPL W10765477
21MWPL W11176624
