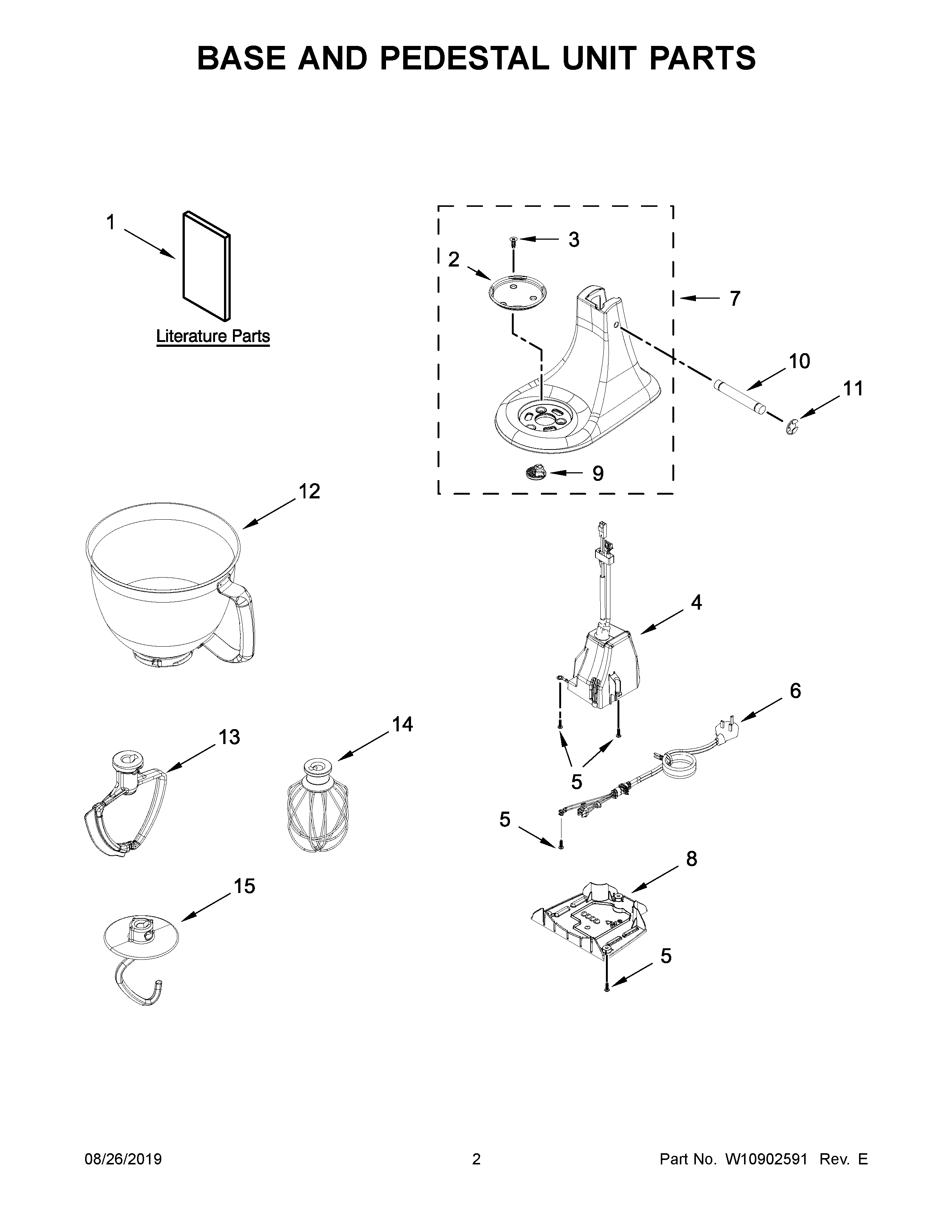

KSM3316XER0 02 – BASE AND PEDESTAL UNIT PARTS

Products

Position	Product
1A	QUICK START GUIDE
1	USE & CARE GUIDE
2	W11189119 Whirlpool Screw Cap
3	SCREW
4	W11112201 Whirlpool Control
5	WP3400814 Whirlpool Screw
6	W11197468 Whirlpool Power Cord
6A	W11197469 Whirlpool Power Cord
7	PEDESTAL (MATTE AVOCADO)
7I	PEDESTAL (WHITE)
7H	PEDESTAL (MEDALLION SILVER)
7C	PEDESTAL (CAST IRON BLACK)
7F	PEDESTAL (MATTE WHITE)
7J	PEDESTAL (ICE)
7A	W10835909 Whirlpool Pedestal Assembly
7B	PEDESTAL (CANDY APPLE)
7D	PEDESTAL (CONTOUR SILVER)
7E	PEDESTAL (EMPIRE RED)
7G	W10756517 Whirlpool Pedestal
8	COVER, BOTTOM
9	WP9709707 Whirlpool Foot
10	W11175818 Whirlpool Dowel Pin
11	WP354987 Whirlpool C-Clip
12	W11085798 Whirlpool Mixer Bowl
13	W10747069 Whirlpool Mixer Beater
14	W11162103 Whirlpool Whip Wire
15	W11162097 Whirlpool Dough Hook
