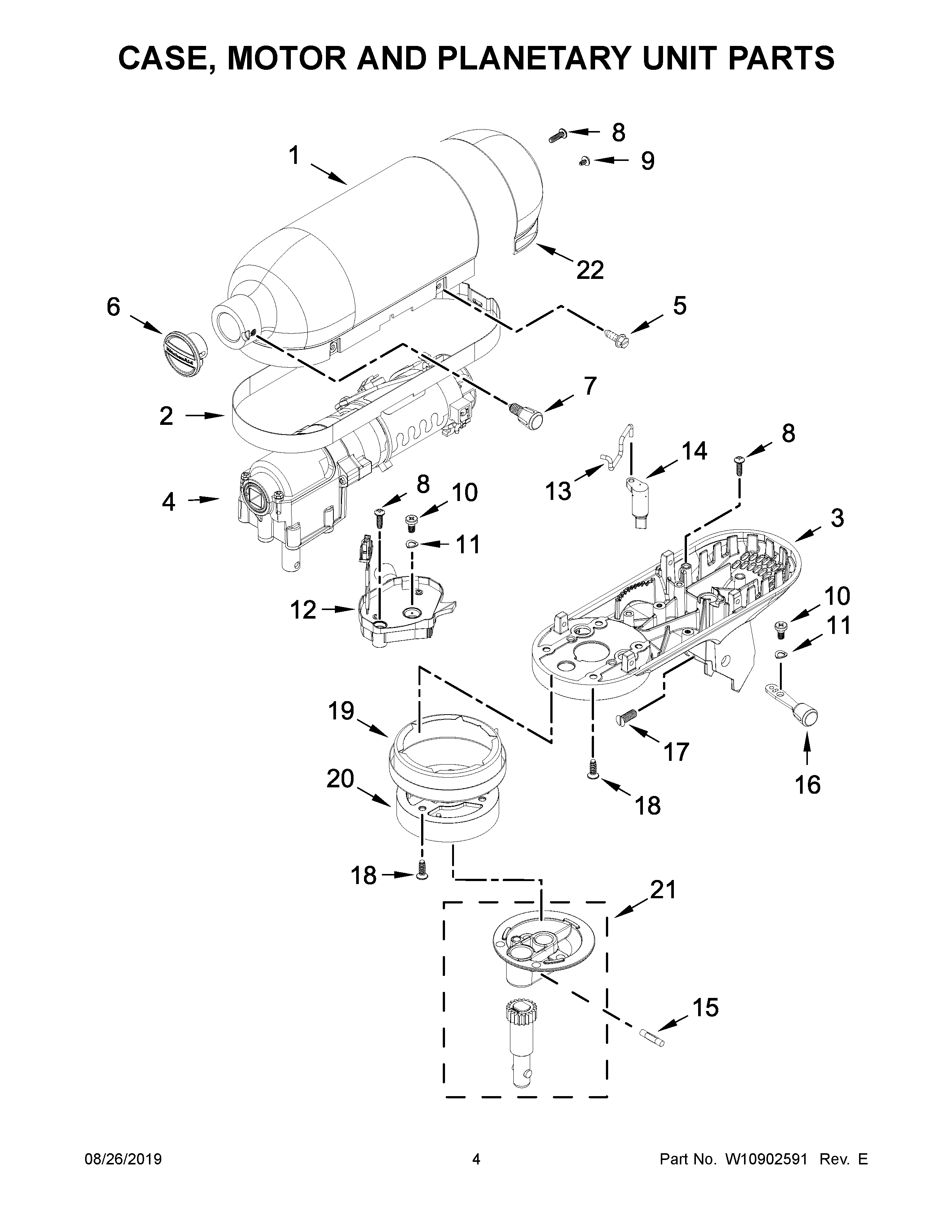

KSM3316XER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

KSM3316XER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Written by

in

KSM3316XER0 03 – CASE, MOTOR AND PLANETARY UNIT PARTS

Products

PositionProduct
1FUPPER HOUSING (MATTE WHITE)
1CUPPER HOUSING (CAST IRON BLACK)
1UPPER HOUSING (MATTE AVOCADO)
1AUPPER HOUSING (BLACK MATTE)
1JW10765465 Whirlpool Housing Assembly
1GW10765462 Whirlpool Housing
1EUPPER HOUSING (EMPIRE RED)
1DW10870579 Whirlpool Housing Assembly
1BUPPER HOUSING (CANDY APPLE)
1IUPPER HOUSING (WHITE)
1HUPPER HOUSING (MEDALLION SILVER)
2W10752933 Whirlpool Trim Band
3ILOWER HOUSING (WHITE)
3CLOWER HOUSING (CAST IRON BLACK)
3FLOWER HOUSING (MATTE WHITE)
3ALOWER HOUSING (BLACK MATTE)
3JLOWER HOUSING (ICE)
3GLOWER HOUSING (HOT SAUCE)
3ELOWER HOUSING (EMPIRE RED)
3DLOWER HOUSING (CONTOUR SILVER)
3BLOWER HOUSING (CANDY APPLE)
3HLOWER HOUSING (MEDALLION SILVER)
3LOWER HOUSING (MATTE AVOCADO)
4W10887355 Whirlpool Motor
5WPW10068250 Whirlpool Dishwasher Screw
6W11048596 Whirlpool Hub Chrome Cap
7W11109470 Whirlpool Screw Assembly
8WP3400814 Whirlpool Screw
9W10853069 Whirlpool Screw
10WP110679 Whirlpool Screw
11WP116241 Whirlpool Washer
12W10887360 Whirlpool Speed Control
13WPL W10772250
14HEADLOCK CAM
15WP9705443 Whirlpool Pin Groove
16W11131252 Whirlpool Speed Lever
17W11028216 Whirlpool Screw
18WPL W10830178
19W11129879 Whirlpool Drip Ring
20WPL W10749720
21BWPL W10883851
21WPL W11113799
21DWPL W10870573
21HWPL W10883860
21EWPL W10870572
21GW10750140 Whirlpool Planetary Mixer
21JWPL W10765476
21AW10835935 Whirlpool Planetary
21FWPL W10835933
21CWPL W11186741
21IW10883871 Whirlpool Planetary Mixer
22WPL W11113798
22HWPL W10883865
22CWPL W11186742
22FWPL W10835951
22AW10835953 Whirlpool Cover Assembly
22JWPL W10765460
22GW10765455 Whirlpool Cover Assembly
22EWPL W10870582
22DWPL W10870583
22BWPL W10883855
22IWPL W10883874
