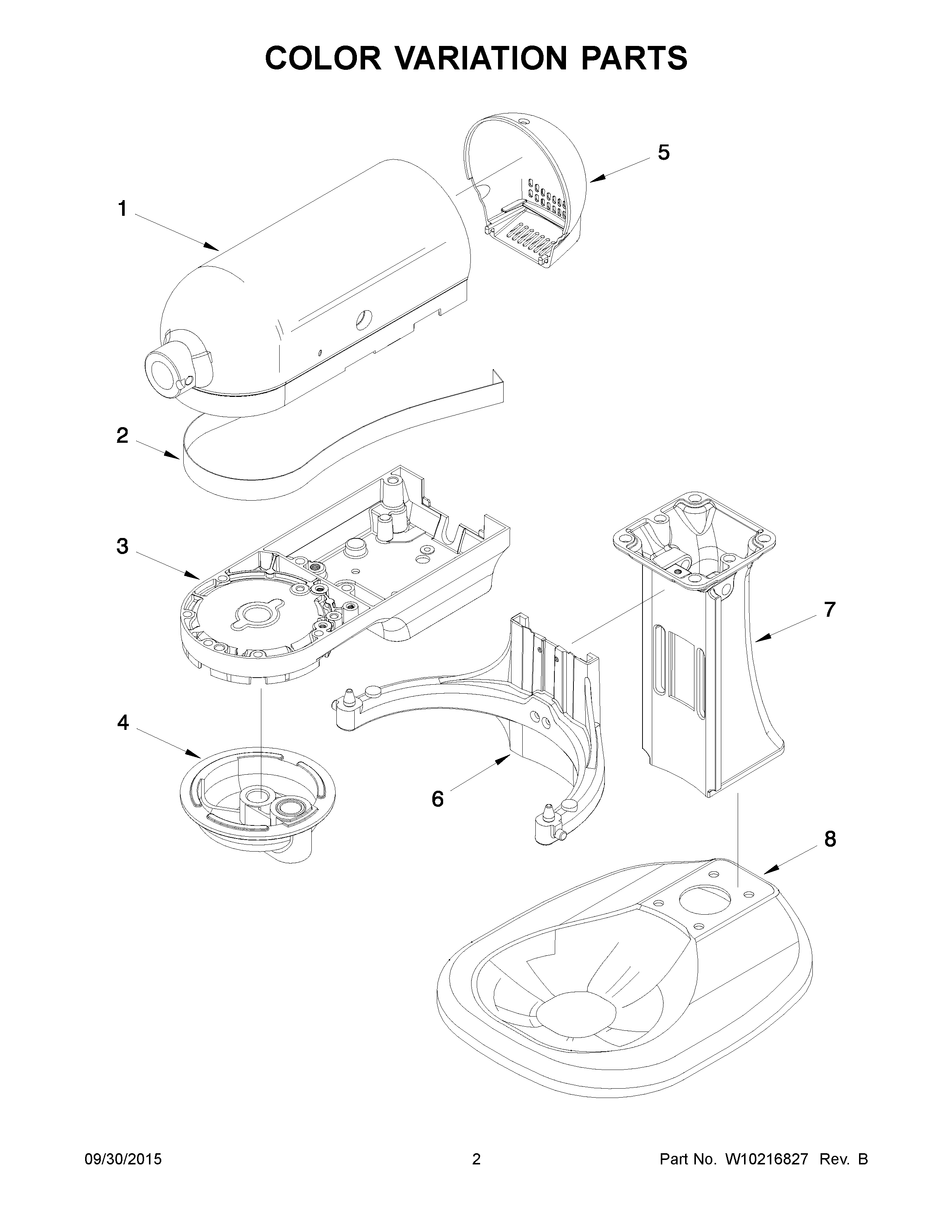

KSM450ER0 02 – COLOR VARIATION PARTS

KSM450ER0 02 – COLOR VARIATION PARTS

Written by

in

KSM450ER0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1AMOTOR HOUSING (EMPIRE RED)
19704790 Whirlpool Housing
2TRIM BAND (BLACK)
3LOWER GEARCASE (IMPERIAL BLACK)
3ALOWER GEARCASE (EMPIRE RED)
4APLANETARY (EMPIRE RED)
49704797 Whirlpool Planetary Mixing
59704805 Whirlpool Cover Assembly
5AEND COVER (EMPIRE RED)
6BOWL SUPPORT-IMPERIAL BLK
6ABOWL SUPPORT & PINS (EMPIRE RED)
7COLUMN ASSY-IMPERIAL BLK
7ACOLUMN ASSY-EMPIRE RED
8BASE & FOOT SUPPORT-IMPERIAL BLK
8ABASE & FOOT SUPPORT-EMPIRE RED
