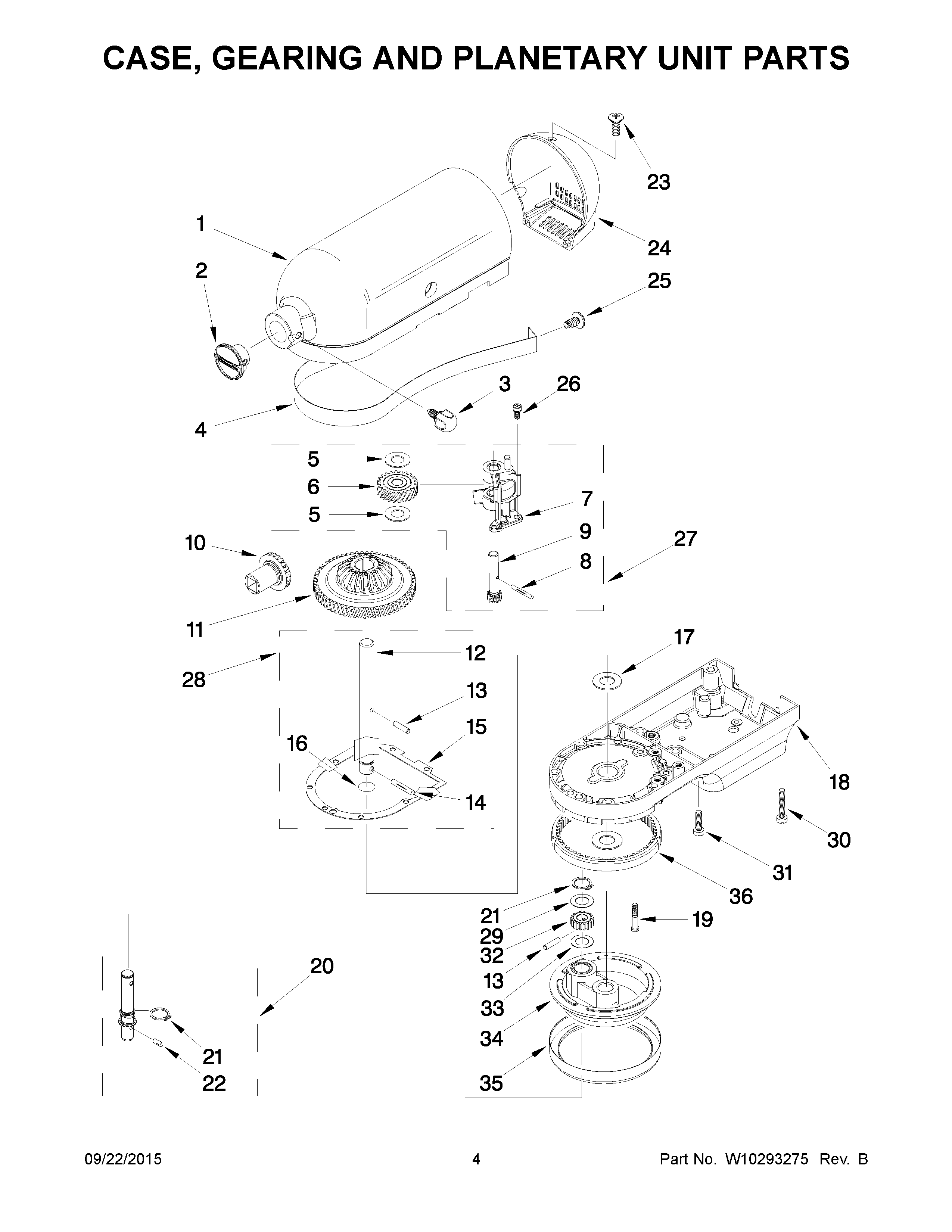

KSM455PSSM0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

KSM455PSSM0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

KSM455PSSM0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2Cap, Attachment Hub
3WP9709194 Whirlpool Black Thumb Screw
5WPW10323373 Whirlpool Washer
6WPW10112253 Whirlpool Gear Assembly
7W11082541 Whirlpool Bearing
8WP9705444 Whirlpool Pin Groove
9Shaft & Pinion
10W11192794 Whirlpool HUB Gear
12WP240026 Whirlpool Control Shaft
13Pin (Vertical Center Shaft)
14WP9705443 Whirlpool Pin Groove
15WP4162324 Whirlpool Case Gasket
16O RING
17WPW10323378 Whirlpool Washer
19Screw, Special (5)
20WP243368 Whirlpool Agitator Shaft
21WP9703438 Whirlpool Snap Retaining Ring
22W11664709 Whirlpool Groove Pin
23WP241877 Whirlpool Screw
25WP313808 Whirlpool Screw
26W11097298 Whirlpool Dishwasher Screw
27GEAR, WORM AND BRACKET
284160474 Whirlpool Control Shaft
29W10854966 Whirlpool Washer
30WP3400025 Whirlpool Screw
31WP9708653 Whirlpool Screw
32W11133645 Whirlpool Pinion Gear
33WP9706090 Whirlpool Washer
34CABINET (NOT A SERVICEABLE PART)
35WP240285 Whirlpool Drip Ring
36W11340106 Whirlpool Gear Assembly
