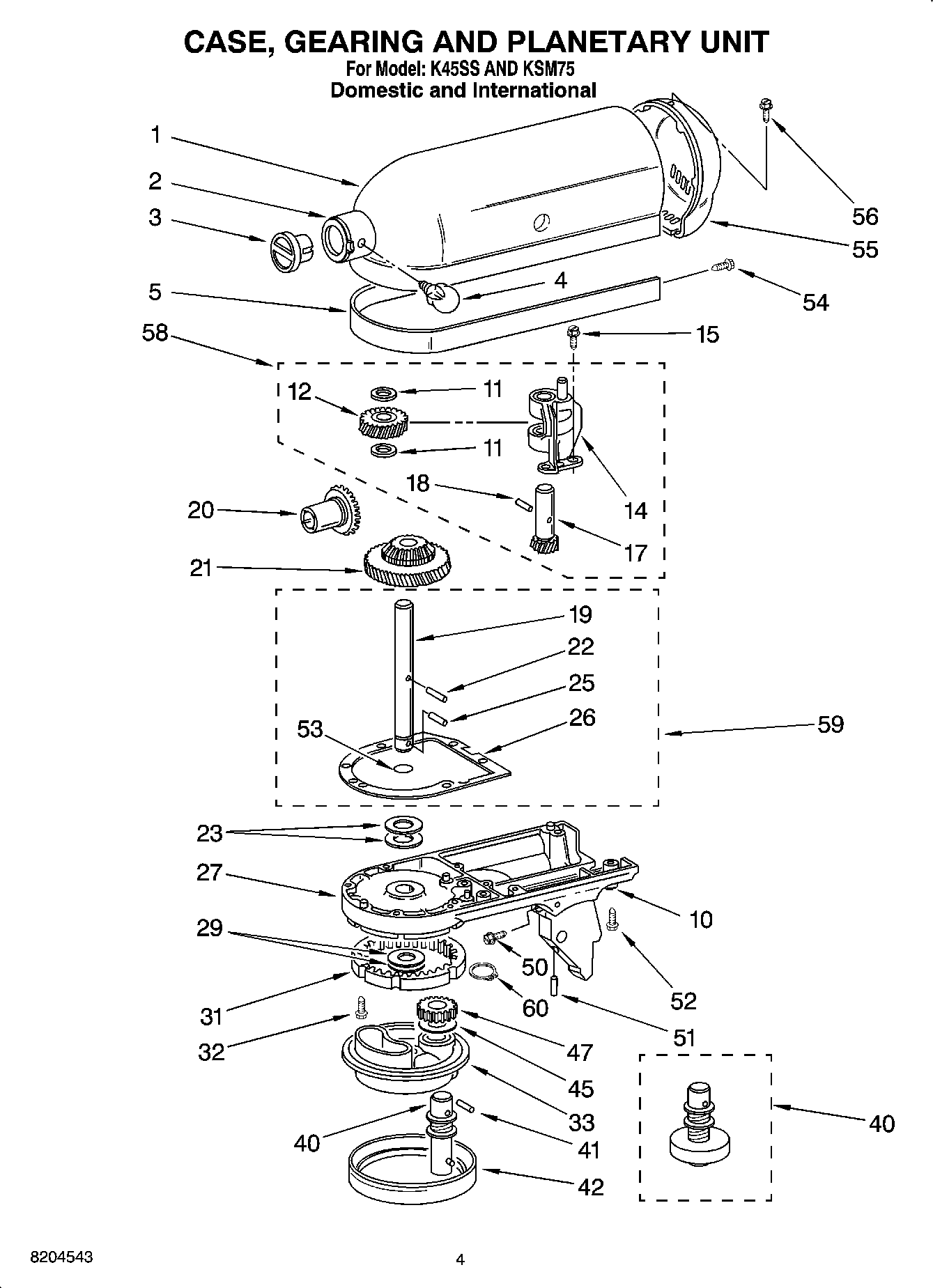

KSM45B3WH0 04 – CASE, GEARING AND PLANETARY

KSM45B3WH0 04 – CASE, GEARING AND PLANETARY

Written by

in

KSM45B3WH0 04 – CASE, GEARING AND PLANETARY

Products

PositionProduct
1Motor Housing (White)
1Motor Housing (Almond Creme)
2WP16897 Whirlpool Bearing
3Cap, Attachment Hub
4WP9709194 Whirlpool Black Thumb Screw
5W11092112 Whirlpool Trim Band
59706916 Whirlpool Trim Band
5TRIM BAND-K45SS-3
5W10859323 Whirlpool Band Trim
10WP8533914 Whirlpool Lock
11WPW10323373 Whirlpool Washer
12WPW10112253 Whirlpool Gear Assembly
14W11082541 Whirlpool Bearing
15W11097298 Whirlpool Dishwasher Screw
17WP240210-2 Whirlpool Worm Gear
18WP9705444 Whirlpool Pin Groove
19WP240026 Whirlpool Control Shaft
20Gear, Attachment Hub Bevel (23T)
21W11192794 Whirlpool HUB Gear
25WP9705443 Whirlpool Pin Groove
26WP4162324 Whirlpool Case Gasket
27LOWER GEARCASE-White
27LOWER GEARCASE (ALMOND CREME)
29WPW10323378 Whirlpool Washer
31W11340106 Whirlpool Gear Assembly
32Screw, Special (5)
33PLANETARY-White
33Planetary (Almond Creme)
40WP243368 Whirlpool Agitator Shaft
41Pin (Vertical Center Shaft)
42WP240285 Whirlpool Drip Ring
45Washer, Shim (.015“ Thk.) (.031“ Thk.)
47W11133645 Whirlpool Pinion Gear
50W11028216 Whirlpool Screw
51WP3400203 Whirlpool Screw
52WP3400025 Whirlpool Screw
53O RING
54WP313808 Whirlpool Screw
55END COVER-White
55End Cover (Almond Creme)
56WP241877 Whirlpool Screw
58GEAR-WORM
594160474 Whirlpool Control Shaft
60WP9703438 Whirlpool Snap Retaining Ring
