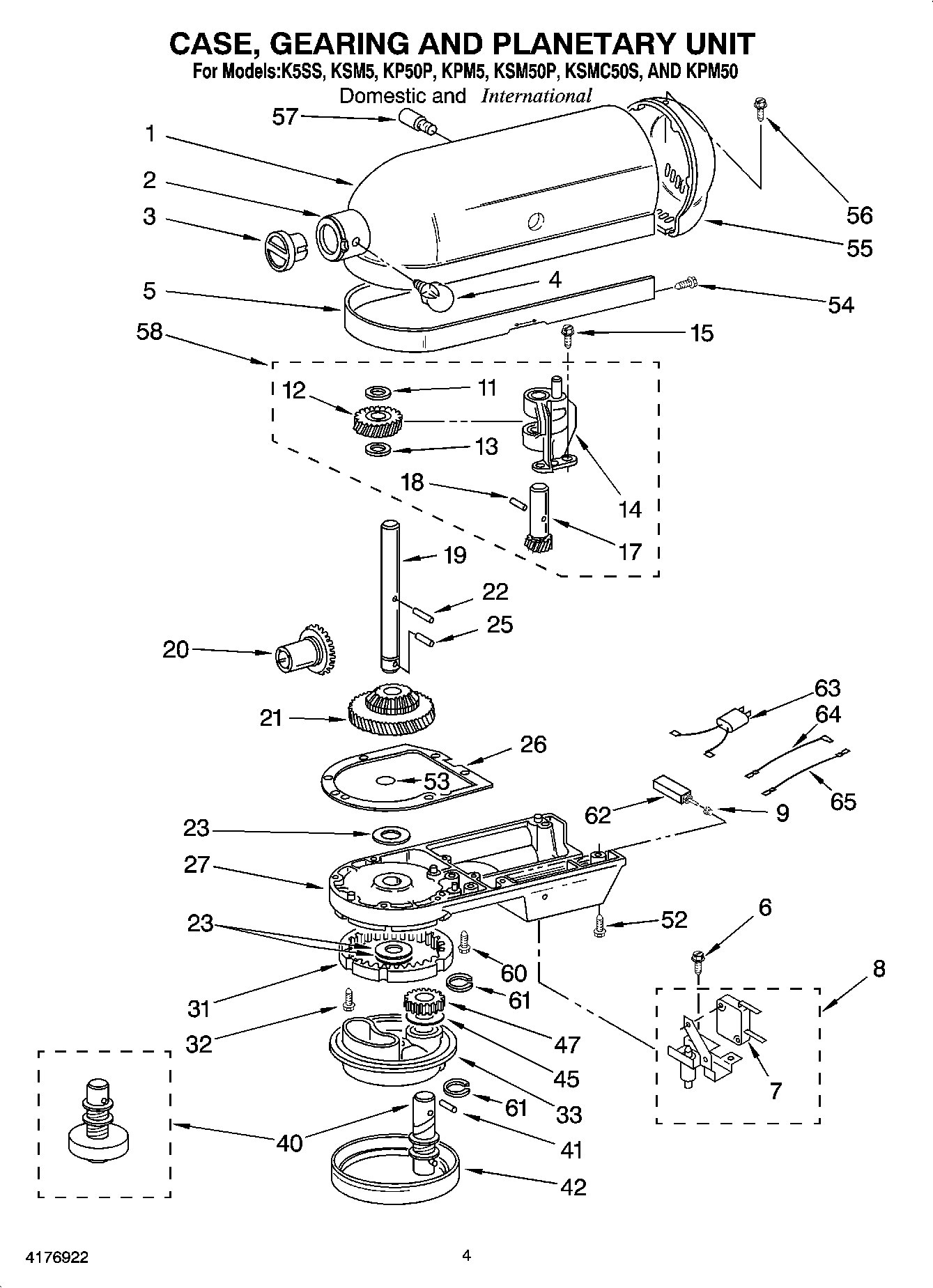

KSM50 02 – CASE, GEARING AND PLANETARY UNIT

KSM50 02 – CASE, GEARING AND PLANETARY UNIT

Written by

in

KSM50 02 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1Gearcase Motor Housing
24159709 Whirlpool Ring
3W11048596 Whirlpool Hub Chrome Cap
3W11047429 Whirlpool Hub Cap
4WP9709196 Whirlpool Screw
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
6WP965173 Whirlpool Dishwasher Screw
7Microswitch (International)
8Bowl Actuator Assembly (International)
9Seal, Reset Button
12WPW10112253 Whirlpool Gear Assembly
13WPW10323373 Whirlpool Washer
14W11082541 Whirlpool Bearing
15W11097298 Whirlpool Dishwasher Screw
1510-24 X 7/16“ Phil. Fil. Hd. (3)
17WP240210-2 Whirlpool Worm Gear
18WP9705444 Whirlpool Pin Groove
19WP240026 Whirlpool Control Shaft
20Gear, Attachment Hub Bevel (23T)
21W11192794 Whirlpool HUB Gear
23WPW10323378 Whirlpool Washer
25WP9705443 Whirlpool Pin Groove
26WP4162324 Whirlpool Case Gasket
27Lower Gear Case
31W11340106 Whirlpool Gear Assembly
32WPL 4160595
33Planetary
40WP243368 Whirlpool Agitator Shaft
41WP9707223 Whirlpool Dowel Pin
42WP240285 Whirlpool Drip Ring
45Washer, Shim (.015“ Thk.) (.031“ Thk.)
47W11133645 Whirlpool Pinion Gear
52WP3400025 Whirlpool Screw
53WP67500-55 Whirlpool O-Ring
54W10853069 Whirlpool Screw
55Cover, End
56WP241877 Whirlpool Screw
57WPL 4176183
58GEAR-WORM
60WP9708653 Whirlpool Screw
61WP9703438 Whirlpool Snap Retaining Ring
62241287-1 Whirlpool Breaker
63WPL 9706789
63WPL ARI154827A
649701105 Whirlpool Wire
65WPL 9702309
