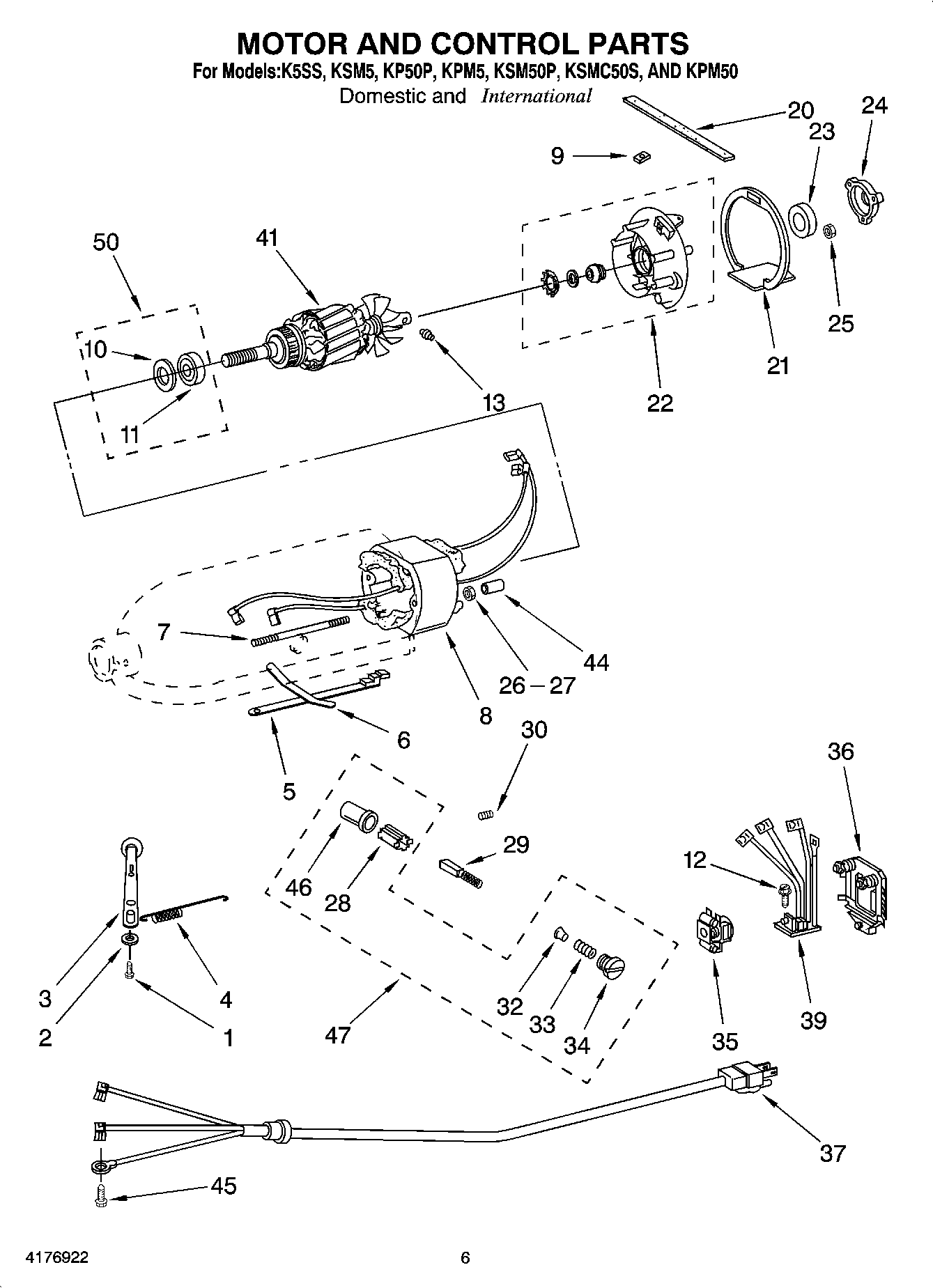

KSM50 03 – MOTOR AND CONTROL PARTS

Products

Position	Product
1	Screw, Pivot
2	Washer, Spring
3	WP9709276 Whirlpool Speed Control Lever
3	WP9709277 Whirlpool Speed Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	100 Volt (Japan Only)
8	(KSMC50S Model)
8	W10870869 Whirlpool Field Assembly
8	WPW10417246 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
11	W11133634 Whirlpool Armature
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
20	KPM5 & KPM50
20	Seal (International)
21	WP240775-1 Whirlpool Endcap Seal
22	WP3180526 Whirlpool Bearing Bracket
23	WASHER
26	8533905 Whirlpool Nut
27	W11170663 Whirlpool Washer
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184211 Whirlpool Brush Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
35	WPW10330804 Whirlpool Speed Governor
36	WPW10119326 Whirlpool Speed Control
37	W11545825 Whirlpool Power Cord
37	W10908276 Whirlpool Power Cord
37	W11112762 Whirlpool Power Cord
37	W11105837 Whirlpool Power Cord
37	W11396625 Whirlpool Power Cord
37	Cord & Plug (110 Volt) (KSMC50
37	W10706734 Whirlpool Power Cord
39	WPW10325124 Whirlpool Phase Board
39	W11174552 Whirlpool Stand Mixer Phase Board
41	ARMATURE/BEARING
41	W11105834 Whirlpool Armature
44	W11210996 Whirlpool Sleeve
45	Screw
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
50	WPL 4176025
