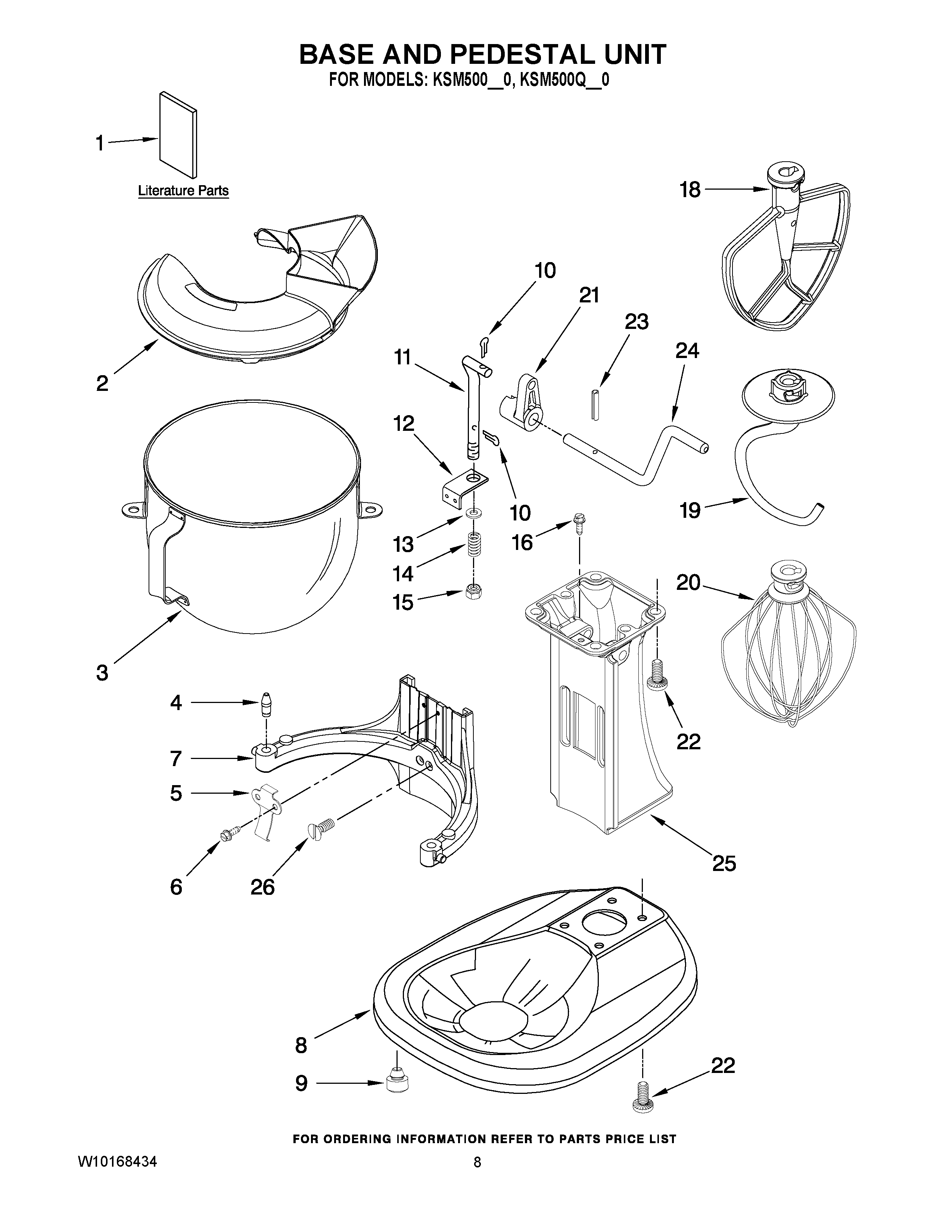

KSM500ER0 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	W11312468 Whirlpool Pour Shelf
3	W10802050 Whirlpool Mixer Bowl
4	WP240185 Whirlpool Bowl Retaining Pin
5	WP3182857 Whirlpool Spring
6	WP4159193 Whirlpool Screw
9	WP9708649 Whirlpool Foot
10	WP9704608 Whirlpool Cotter Pin
11	Rod, Bowl Lift
12	240169 Whirlpool Bracket
13	WASHER
14	4159622 Whirlpool PP Spring
15	8533907 Whirlpool Dishwasher Nut
16	3182904 Whirlpool Screw
18	BEATER, FLAT
19	WPW10674621 Whirlpool Dough Hook Assembly
20	WPW10731415 Whirlpool Stand Mixer Wire Whip
21	WP241764 Whirlpool Mixer Lift Arm Bowl
22	WP4162403 Whirlpool Screw
23	WP9703442 Whirlpool Roll Pin
24	W10598843 Whirlpool Handle Assembly
25	CABINET (NOT A SERVICEABLE PART)
26	W10861883 Whirlpool Screw
