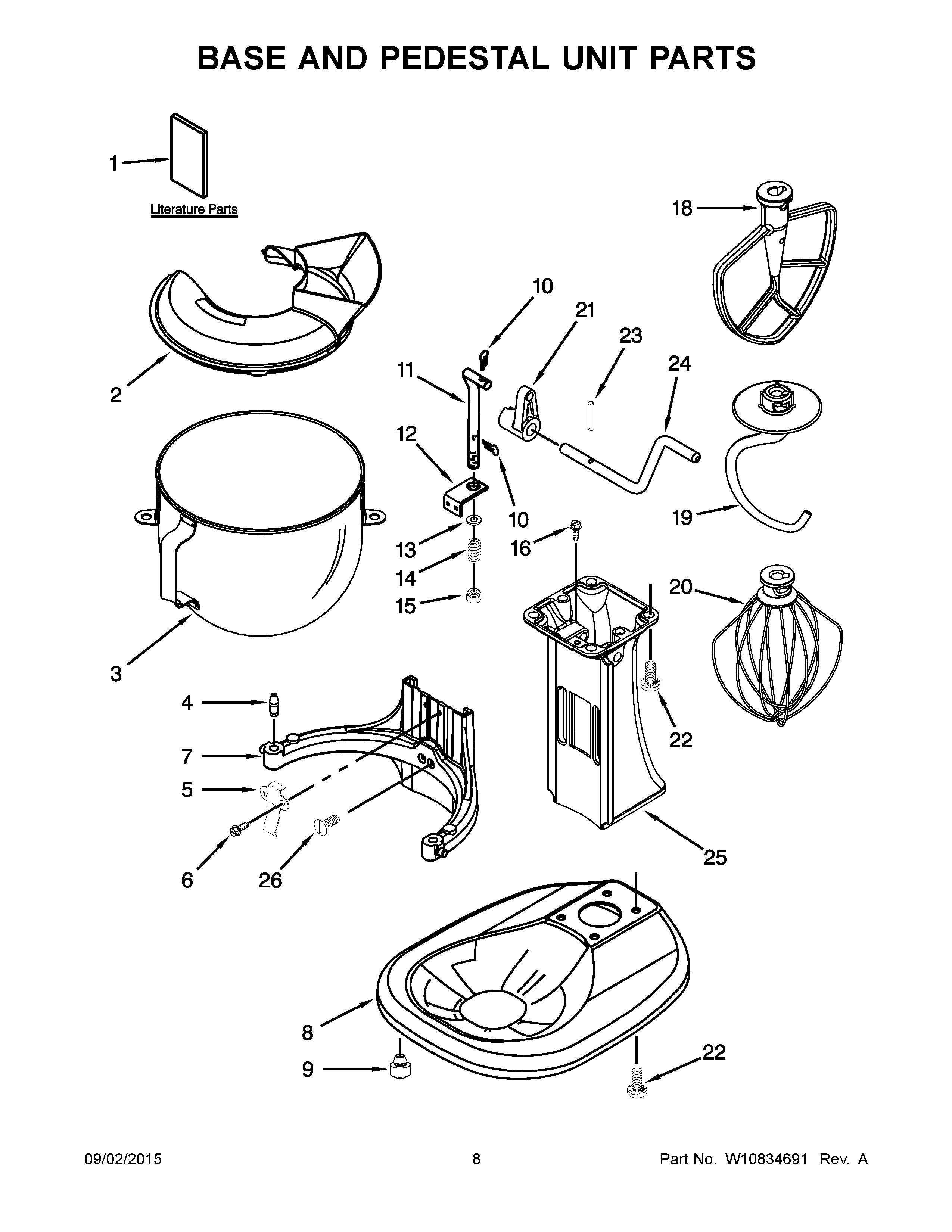

KSM500Q2TG0 05 – BASE AND PEDESTAL UNIT PARTSadmin2025-04-26T11:00:57+00:00KSM500Q2TG0 05 – BASE AND PEDESTAL UNIT PARTS ProductsPositionProduct1Use & Care Guide2W11312468 Whirlpool Pour Shelf3W10802050 Whirlpool Mixer Bowl4WP240185 Whirlpool Bowl Retaining Pin5WP3182857 Whirlpool Spring6WP4159193 Whirlpool Screw9WP9708649 Whirlpool Foot10WP9704608 Whirlpool Cotter Pin11W10598834 Whirlpool Lift Rod12240169 Whirlpool Bracket13WASHER144159622 Whirlpool PP Spring158533907 Whirlpool Dishwasher Nut163182904 Whirlpool Screw18BEATER, FLAT19WPW10674621 Whirlpool Dough Hook Assembly20WPW10731415 Whirlpool Stand Mixer Wire Whip21WP241764 Whirlpool Mixer Lift Arm Bowl22WP4162403 Whirlpool Screw23WP9703442 Whirlpool Roll Pin24W10598843 Whirlpool Handle Assembly25CABINET (NOT A SERVICEABLE PART)26W10861883 Whirlpool Screw
