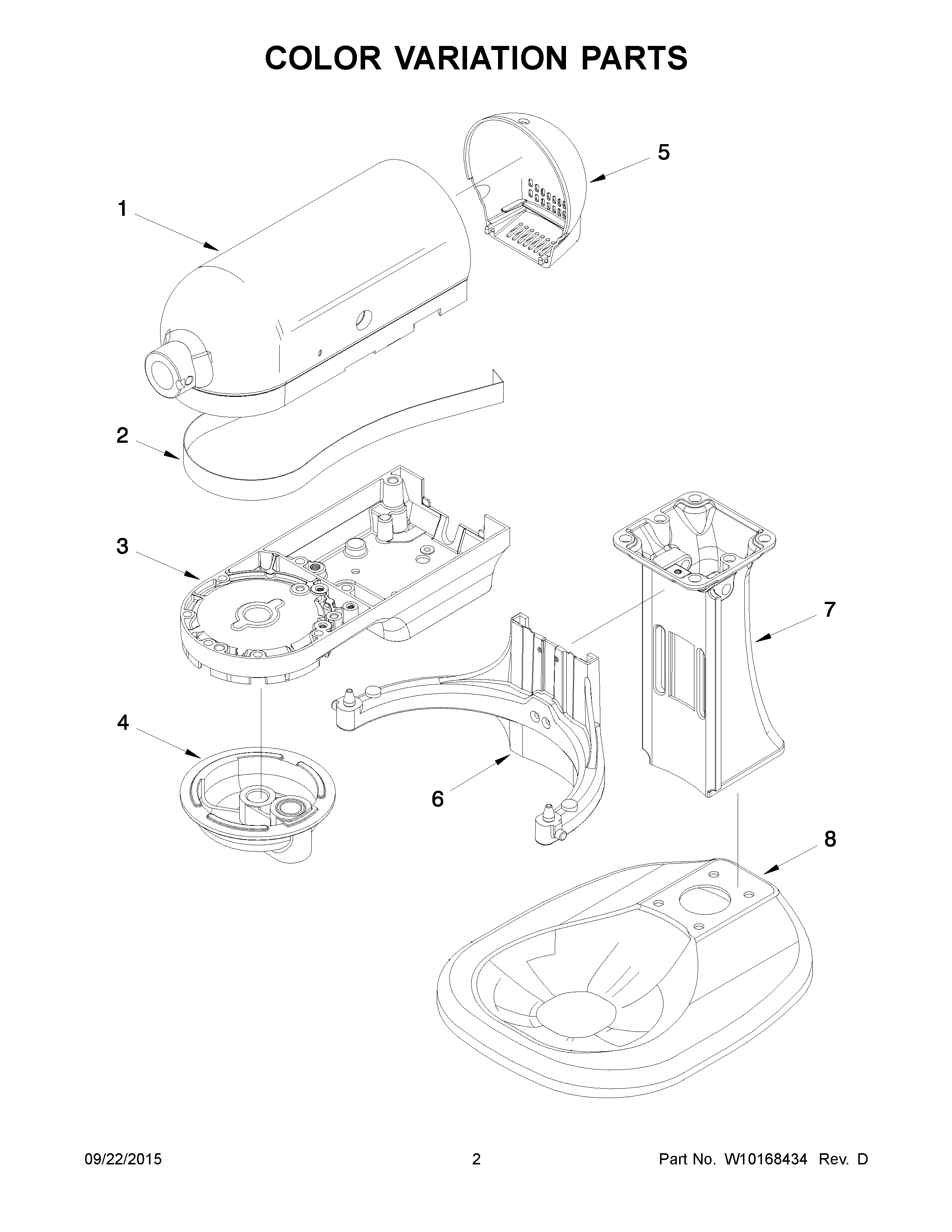

KSM500QGC0 02 – COLOR VARIATION PARTS
Written by
in
KSM500QGC0 02 – COLOR VARIATION PARTS
Products
Position
Product
1
W10121193 Whirlpool Housing
1A
MOTOR HOUSING (EMPIRE RED)
1B
Motor Housing (Onyx Black)
1E
9709600 Whirlpool Housing
1F
Motor Housing (Buttercup)
1D
Motor Housing (Almond Creme)
1C
Motor Housing (White)
1G
9709442 Whirlpool Housing
2
W10158179 Whirlpool Trim Band
3A
LOWER GEARCASE (EMPIRE RED)
3B
Lower Gearcase (Onyx Black)
3D
LOWER GEARCASE (ALMOND CREME)
3E
LOWER GEARCASE (BLUE WILLOW)
3F
LOWER GEARCASE (BUTTERCUP)
3G
LOWER GEARCASE (GLOSS CINNAMON)
3
LOWER GEARCASE (SILVER METALLIC)
3C
LOWER GEARCASE (WHITE)
4F
Planetary (Buttercup)
4C
PLANETARY-White
4E
WPL 9709597
4D
Planetary (Almond Creme)
4
9706670 Whirlpool Planetary
4G
9709439 Whirlpool Planetary Gear
4A
PLANETARY (EMPIRE RED)
4B
PLANETARY-Onyx Black
5G
9709437 Whirlpool Cover
5F
9709898 Whirlpool Cover
5
W10121188 Whirlpool Cover Assembly
5C
END COVER-White
5A
END COVER (EMPIRE RED)
5E
9709595 Whirlpool Cover
5D
End Cover (Almond Creme)
5B
END COVER (ONYX BLACK)
6A
BOWL SUPPORT & PINS (EMPIRE RED)
6G
WPL W10275875
6F
WPL W10275874
6C
3179300 Whirlpool Support Assembly
6D
BOWL SUPPORT AND PINS (ALMOND CREME)
6E
WPL W10275873
6B
BOWL SUPPORT-Black Gloss
6
BOWL SUPPORT AND PINS (SILVER METALLIC)
7
COLUMN (SILVER METALLIC)
7G
WPL W10275883
7F
WPL W10275881
7C
COLUMN (WHITE)
7E
WPL W10275880
7A
COLUMN ASSY-EMPIRE RED
7B
WPL 24014815
7D
COLUMN – Almond Creme
8B
BASE & FOOT SUPPORT-GLOSS BLK
8C
3179280 Whirlpool Base
8A
BASE & FOOT SUPPORT-EMPIRE RED
8G
WPL W10275899
8F
WPL W10275897
8E
WPL W10275896
8
W10158515 Whirlpool Base
8D
WPL 3179294
←
