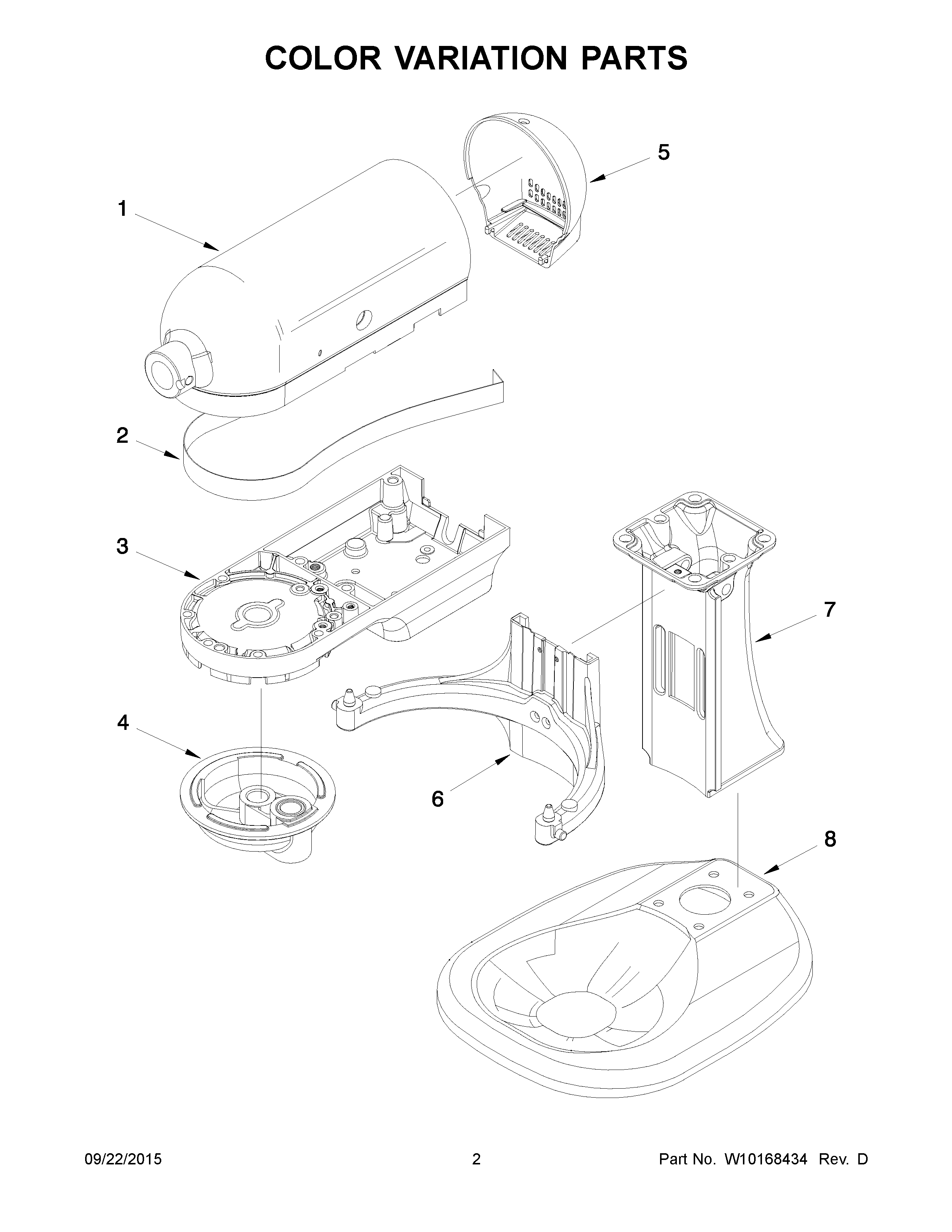

KSM500QOB0 02 – COLOR VARIATION PARTS

Products

Position	Product
1	W10121193 Whirlpool Housing
1A	MOTOR HOUSING (EMPIRE RED)
1B	Motor Housing (Onyx Black)
1E	9709600 Whirlpool Housing
1F	Motor Housing (Buttercup)
1D	Motor Housing (Almond Creme)
1C	Motor Housing (White)
1G	9709442 Whirlpool Housing
2	W10158179 Whirlpool Trim Band
3A	LOWER GEARCASE (EMPIRE RED)
3B	Lower Gearcase (Onyx Black)
3D	LOWER GEARCASE (ALMOND CREME)
3E	LOWER GEARCASE (BLUE WILLOW)
3F	LOWER GEARCASE (BUTTERCUP)
3G	LOWER GEARCASE (GLOSS CINNAMON)
3	LOWER GEARCASE (SILVER METALLIC)
3C	LOWER GEARCASE (WHITE)
4F	Planetary (Buttercup)
4C	PLANETARY-White
4E	WPL 9709597
4D	Planetary (Almond Creme)
4	9706670 Whirlpool Planetary
4G	9709439 Whirlpool Planetary Gear
4A	PLANETARY (EMPIRE RED)
4B	PLANETARY-Onyx Black
5G	9709437 Whirlpool Cover
5F	9709898 Whirlpool Cover
5	W10121188 Whirlpool Cover Assembly
5C	END COVER-White
5A	END COVER (EMPIRE RED)
5E	9709595 Whirlpool Cover
5D	End Cover (Almond Creme)
5B	END COVER (ONYX BLACK)
6A	BOWL SUPPORT & PINS (EMPIRE RED)
6G	WPL W10275875
6F	WPL W10275874
6C	3179300 Whirlpool Support Assembly
6D	BOWL SUPPORT AND PINS (ALMOND CREME)
6E	WPL W10275873
6B	BOWL SUPPORT-Black Gloss
6	BOWL SUPPORT AND PINS (SILVER METALLIC)
7	COLUMN (SILVER METALLIC)
7G	WPL W10275883
7F	WPL W10275881
7C	COLUMN (WHITE)
7E	WPL W10275880
7A	COLUMN ASSY-EMPIRE RED
7B	WPL 24014815
7D	COLUMN – Almond Creme
8B	BASE & FOOT SUPPORT-GLOSS BLK
8C	3179280 Whirlpool Base
8A	BASE & FOOT SUPPORT-EMPIRE RED
8G	WPL W10275899
8F	WPL W10275897
8E	WPL W10275896
8	W10158515 Whirlpool Base
8D	WPL 3179294
