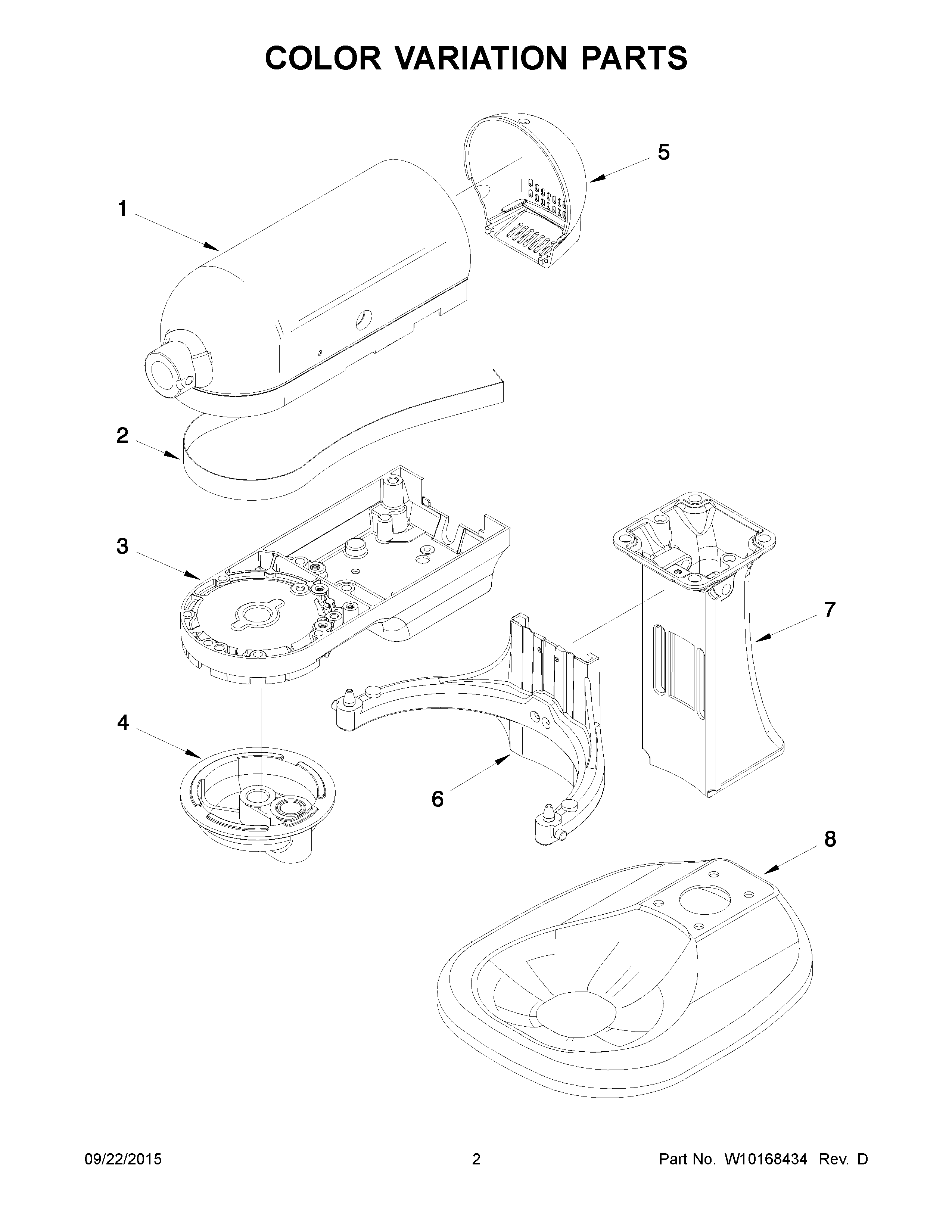

KSM500QSM0 02 – COLOR VARIATION PARTS

KSM500QSM0 02 – COLOR VARIATION PARTS

Written by

in

KSM500QSM0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1W10121193 Whirlpool Housing
1AMOTOR HOUSING (EMPIRE RED)
1BMotor Housing (Onyx Black)
1E9709600 Whirlpool Housing
1FMotor Housing (Buttercup)
1DMotor Housing (Almond Creme)
1CMotor Housing (White)
1G9709442 Whirlpool Housing
2W10158179 Whirlpool Trim Band
3ALOWER GEARCASE (EMPIRE RED)
3BLower Gearcase (Onyx Black)
3DLOWER GEARCASE (ALMOND CREME)
3ELOWER GEARCASE (BLUE WILLOW)
3FLOWER GEARCASE (BUTTERCUP)
3GLOWER GEARCASE (GLOSS CINNAMON)
3LOWER GEARCASE (SILVER METALLIC)
3CLOWER GEARCASE (WHITE)
4FPlanetary (Buttercup)
4CPLANETARY-White
4EWPL 9709597
4DPlanetary (Almond Creme)
49706670 Whirlpool Planetary
4G9709439 Whirlpool Planetary Gear
4APLANETARY (EMPIRE RED)
4BPLANETARY-Onyx Black
5G9709437 Whirlpool Cover
5F9709898 Whirlpool Cover
5W10121188 Whirlpool Cover Assembly
5CEND COVER-White
5AEND COVER (EMPIRE RED)
5E9709595 Whirlpool Cover
5DEnd Cover (Almond Creme)
5BEND COVER (ONYX BLACK)
6ABOWL SUPPORT & PINS (EMPIRE RED)
6GWPL W10275875
6FWPL W10275874
6C3179300 Whirlpool Support Assembly
6DBOWL SUPPORT AND PINS (ALMOND CREME)
6EWPL W10275873
6BBOWL SUPPORT-Black Gloss
6BOWL SUPPORT AND PINS (SILVER METALLIC)
7COLUMN (SILVER METALLIC)
7GWPL W10275883
7FWPL W10275881
7CCOLUMN (WHITE)
7EWPL W10275880
7ACOLUMN ASSY-EMPIRE RED
7BWPL 24014815
7DCOLUMN – Almond Creme
8BBASE & FOOT SUPPORT-GLOSS BLK
8C3179280 Whirlpool Base
8ABASE & FOOT SUPPORT-EMPIRE RED
8GWPL W10275899
8FWPL W10275897
8EWPL W10275896
8W10158515 Whirlpool Base
8DWPL 3179294
