KSM500SM0 01 – COLOR VARIATION PARTS
Written by
in

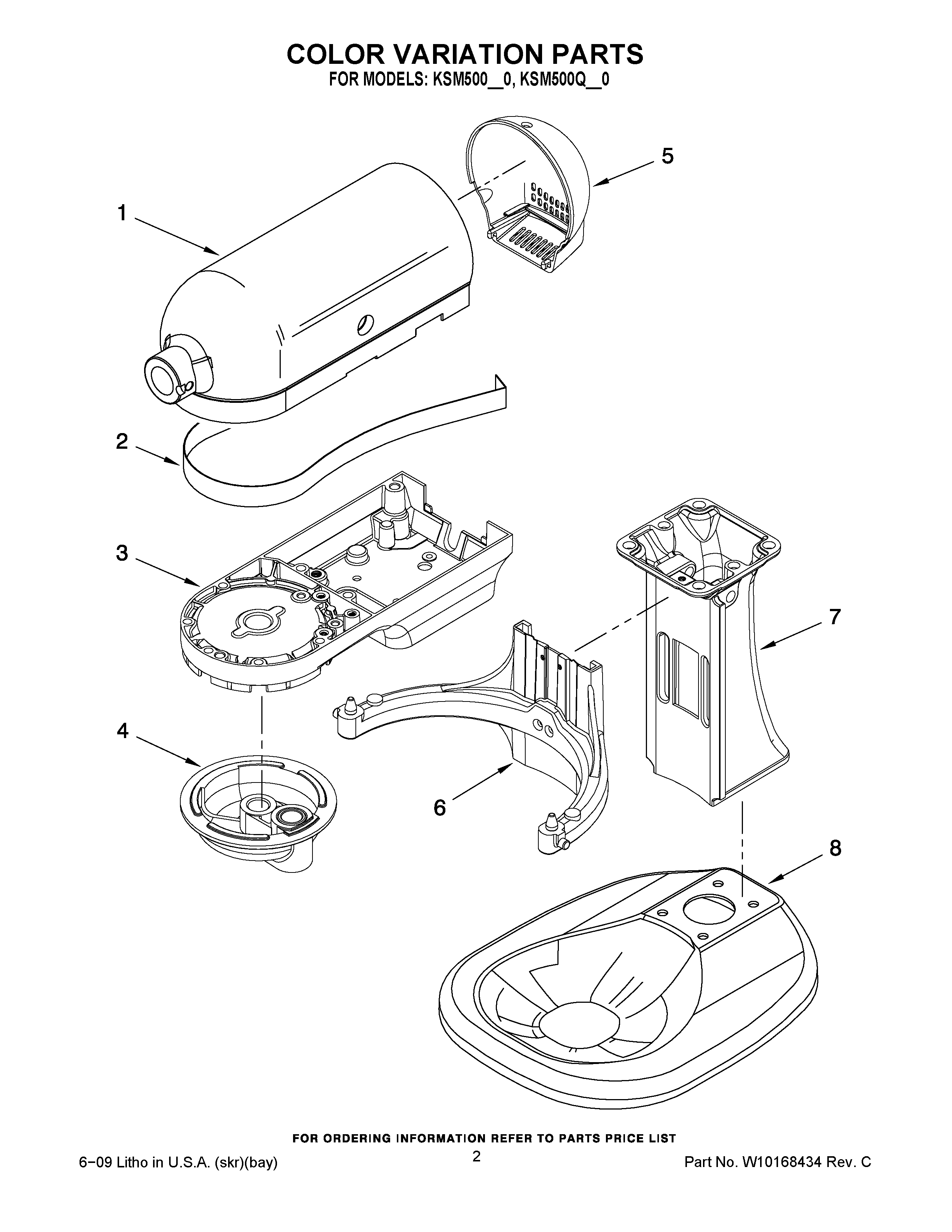

KSM500SM0 01 – COLOR VARIATION PARTS
Products
Position
Product
1
MOTOR HOUSING (EMPIRE RED)
1
9709600 Whirlpool Housing
1
Motor Housing (Onyx Black)
1
Motor Housing (Buttercup)
1
9709442 Whirlpool Housing
1
Motor Housing (Almond Creme)
1
Motor Housing (White)
1
W10121193 Whirlpool Housing
2
W10158179 Whirlpool Trim Band
3
LOWER GEARCASE (ALMOND CREME)
3
Lower Gearcase (Onyx Black)
3
LOWER GEARCASE (BUTTERCUP)
3
LOWER GEARCASE (GLOSS CINNAMON)
3
LOWER GEARCASE (EMPIRE RED)
3
LOWER GEARCASE (WHITE)
3
LOWER GEARCASE (SILVER METALLIC)
3
LOWER GEARCASE (BLUE WILLOW)
4
WPL 9709597
4
PLANETARY (EMPIRE RED)
4
9706670 Whirlpool Planetary
4
PLANETARY-White
4
Planetary (Almond Creme)
4
Planetary (Buttercup)
4
9709439 Whirlpool Planetary Gear
4
PLANETARY-Onyx Black
5
9709437 Whirlpool Cover
5
BOWL SUPPORT AND PINS (SILVER METALLIC)
5
9709898 Whirlpool Cover
5
W10121188 Whirlpool Cover Assembly
5
END COVER-White
5
End Cover (Almond Creme)
5
END COVER (ONYX BLACK)
5
END COVER (EMPIRE RED)
5
9709595 Whirlpool Cover
6
3179300 Whirlpool Support Assembly
6
WPL W10275873
6
WPL W10275874
6
BOWL SUPPORT & PINS (EMPIRE RED)
6
BOWL SUPPORT-Black Gloss
6
COLUMN (SILVER METALLIC)
6
BOWL SUPPORT AND PINS (ALMOND CREME)
6
WPL W10275875
7
WPL 24014815
7
COLUMN ASSY-EMPIRE RED
7
COLUMN – Almond Creme
7
COLUMN (WHITE)
7
WPL W10275881
7
WPL W10275883
7
WPL W10275880
8
3179280 Whirlpool Base
8
BASE & FOOT SUPPORT-EMPIRE RED
8
WPL W10275899
8
WPL W10275897
8
WPL W10275896
8
W10158515 Whirlpool Base
8
BASE & FOOT SUPPORT-GLOSS BLK
8
WPL 3179294
←
