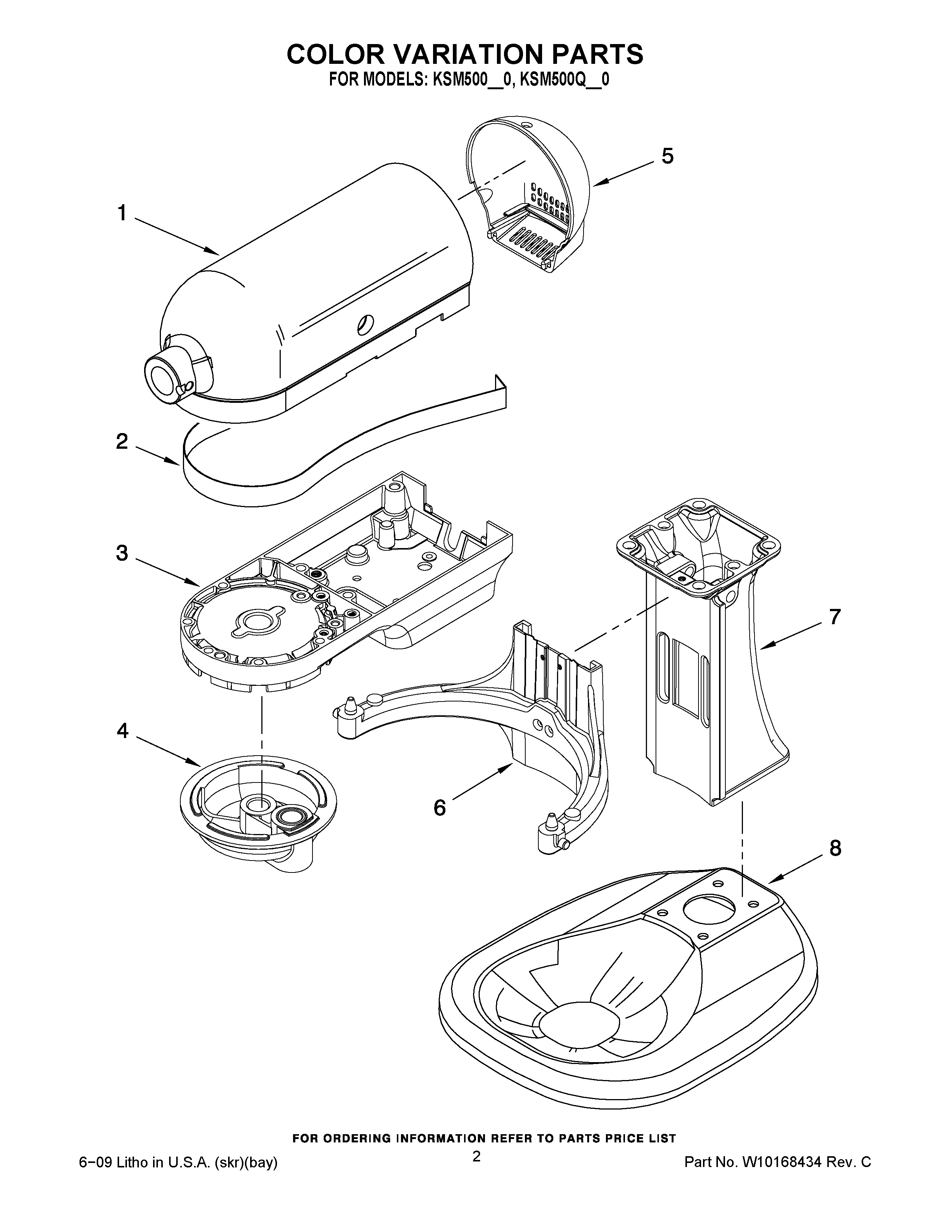

KSM500WH0 01 – COLOR VARIATION PARTS

KSM500WH0 01 – COLOR VARIATION PARTS

Written by

in

KSM500WH0 01 – COLOR VARIATION PARTS

Products

PositionProduct
1MOTOR HOUSING (EMPIRE RED)
19709600 Whirlpool Housing
1Motor Housing (Onyx Black)
1Motor Housing (Buttercup)
19709442 Whirlpool Housing
1Motor Housing (Almond Creme)
1Motor Housing (White)
1W10121193 Whirlpool Housing
2W10158179 Whirlpool Trim Band
3LOWER GEARCASE (ALMOND CREME)
3Lower Gearcase (Onyx Black)
3LOWER GEARCASE (BUTTERCUP)
3LOWER GEARCASE (GLOSS CINNAMON)
3LOWER GEARCASE (EMPIRE RED)
3LOWER GEARCASE (WHITE)
3LOWER GEARCASE (SILVER METALLIC)
3LOWER GEARCASE (BLUE WILLOW)
4WPL 9709597
4PLANETARY (EMPIRE RED)
49706670 Whirlpool Planetary
4PLANETARY-White
4Planetary (Almond Creme)
4Planetary (Buttercup)
49709439 Whirlpool Planetary Gear
4PLANETARY-Onyx Black
59709437 Whirlpool Cover
5BOWL SUPPORT AND PINS (SILVER METALLIC)
59709898 Whirlpool Cover
5W10121188 Whirlpool Cover Assembly
5END COVER-White
5End Cover (Almond Creme)
5END COVER (ONYX BLACK)
5END COVER (EMPIRE RED)
59709595 Whirlpool Cover
63179300 Whirlpool Support Assembly
6WPL W10275873
6WPL W10275874
6BOWL SUPPORT & PINS (EMPIRE RED)
6BOWL SUPPORT-Black Gloss
6COLUMN (SILVER METALLIC)
6BOWL SUPPORT AND PINS (ALMOND CREME)
6WPL W10275875
7WPL 24014815
7COLUMN ASSY-EMPIRE RED
7COLUMN – Almond Creme
7COLUMN (WHITE)
7WPL W10275881
7WPL W10275883
7WPL W10275880
83179280 Whirlpool Base
8BASE & FOOT SUPPORT-EMPIRE RED
8WPL W10275899
8WPL W10275897
8WPL W10275896
8W10158515 Whirlpool Base
8BASE & FOOT SUPPORT-GLOSS BLK
8WPL 3179294
