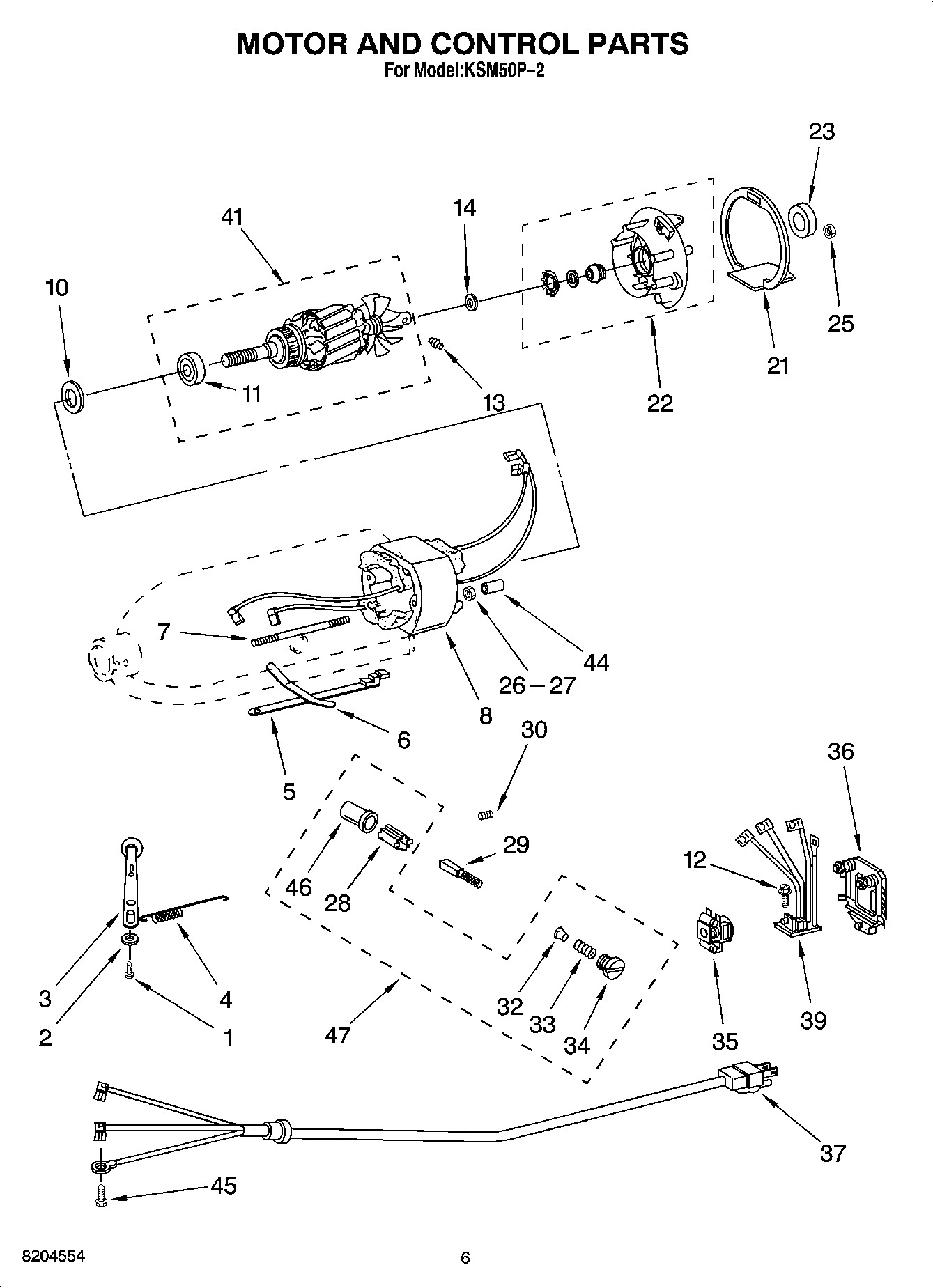

KSM50P-2 04 – MOTOR AND CONTROL PARTS

KSM50P-2 04 – MOTOR AND CONTROL PARTS

Written by

in

KSM50P-2 04 – MOTOR AND CONTROL PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5Speed Link & Cam
6WP240205 Whirlpool Spring
7W10851015 Whirlpool Stat Screw
8W10870869 Whirlpool Field Assembly
10WP9704324 Whirlpool Washer
11SKF-6200ZJ
11Ball Bearing
12W11084238 Whirlpool Screw Assembly
13WP16998 Whirlpool Drive Stud
14W11233557 Whirlpool Washer
21SEAL, END
22WP3180526 Whirlpool Bearing Bracket
23WASHER
268533905 Whirlpool Nut
27W11170663 Whirlpool Washer
28W11656718 Whirlpool Insert
29WPW10380496 Whirlpool Stand Mixer Motor Brush
30W11176201 Whirlpool Screw
32WP116286 Whirlpool Spring Cap
33WP116287 Whirlpool Spring Cap
34WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
35WPW10330804 Whirlpool Speed Governor
36Control Plate Assembly
37W11396625 Whirlpool Power Cord
39WPW10325124 Whirlpool Phase Board
41W11133634 Whirlpool Armature
44W11210996 Whirlpool Sleeve
45Screw
46WP3179908 Whirlpool Brush Holder
47WPL 3177925
47Speed Disc (Service Tool)
47WPL 3180616
474162154 Whirlpool Water Jacket
474162546 Whirlpool Brush Holder
47WPW10714130 Whirlpool Mixer Bowl
47W11312468 Whirlpool Pour Shelf
47ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
47Grain Mill (GM-A)
47PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
47FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
47SAUSAGE STUFFER KIT (SSA)
47PASTA MAKER PLATES (SNPA)
47W11200218 Whirlpool Grease Filter
47Food Tray (FT)
47CAN OPENER (CO)
47JUICER (JE)
47FOOD GRINDER (FG-A)
47FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
4767500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
