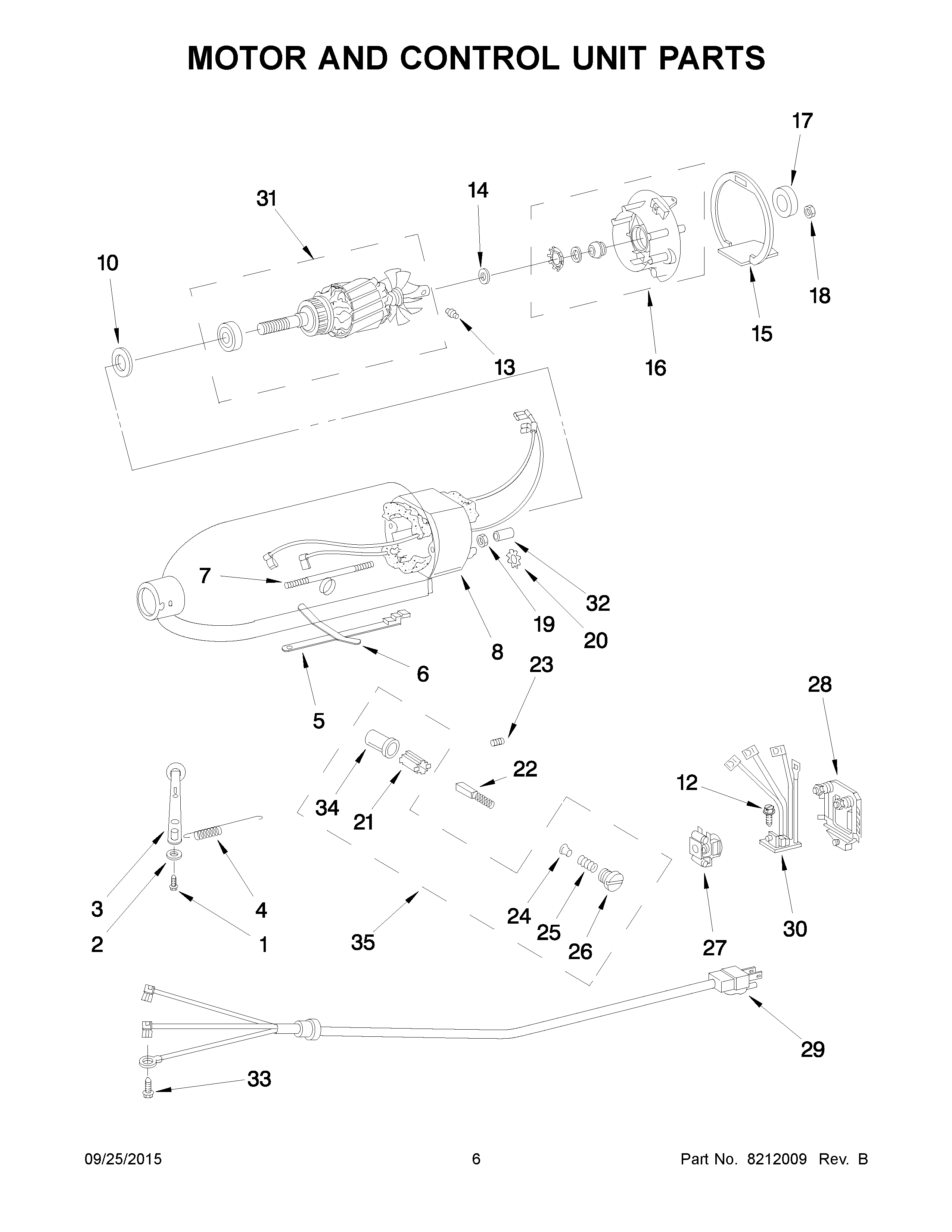

KSM50POB0 04 – MOTOR AND CONTROL UNIT PARTS

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	W10870869 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
15	SEAL, END
16	WP3180526 Whirlpool Bearing Bracket
17	WASHER
19	8533905 Whirlpool Nut
20	W11170663 Whirlpool Washer
21	W11656718 Whirlpool Insert
22	WPW10380496 Whirlpool Stand Mixer Motor Brush
23	W11176201 Whirlpool Screw
24	WP116286 Whirlpool Spring Cap
25	WP116287 Whirlpool Spring Cap
26	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
27	WPW10330804 Whirlpool Speed Governor
28	Control Plate Assembly
29A	W11396625 Whirlpool Power Cord
29	W11545825 Whirlpool Power Cord
30	WPW10325124 Whirlpool Phase Board
31	W11133634 Whirlpool Armature
32	W11210996 Whirlpool Sleeve
33	Screw
34	WP3179908 Whirlpool Brush Holder
35	4162546 Whirlpool Brush Holder
