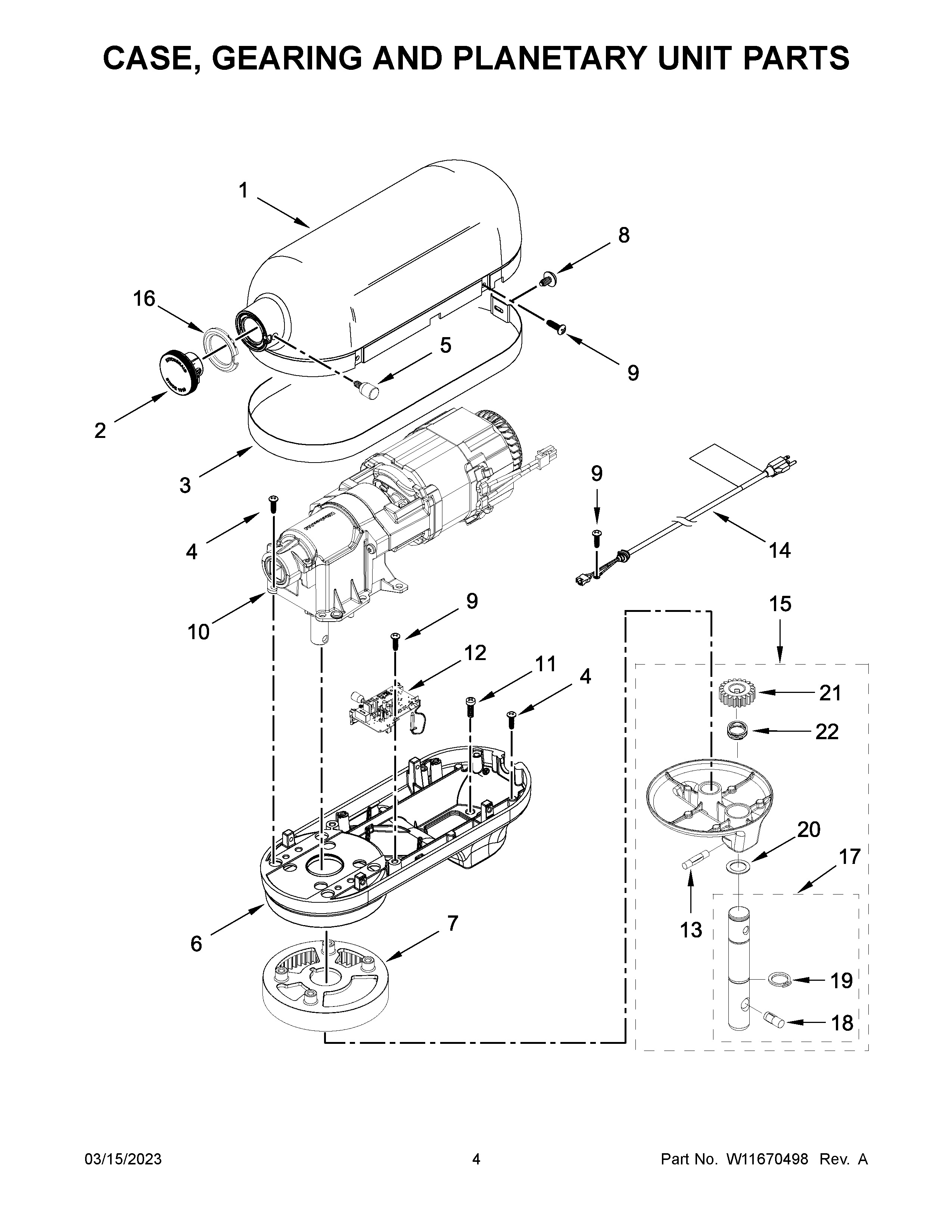

KSM55SJSXVB0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

KSM55SJSXVB0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

KSM55SJSXVB0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2CAP, ATTACHMENT HUB
4W10914506 Whirlpool Screw
5THUMB SCREW (BLACK)
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11647949 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11672012 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14W11677162 Whirlpool Power Cord
15CABINET (NOT A SERVICEABLE PART)
16WP9703315 Whirlpool Hub Cap
17SHAFT, AGITATOR
18W11664709 Whirlpool Groove Pin
19WP9703680 Whirlpool Retainer Ring
20W10854966 Whirlpool Washer
21GEAR, PINION
22W11649170 Whirlpool Washer
