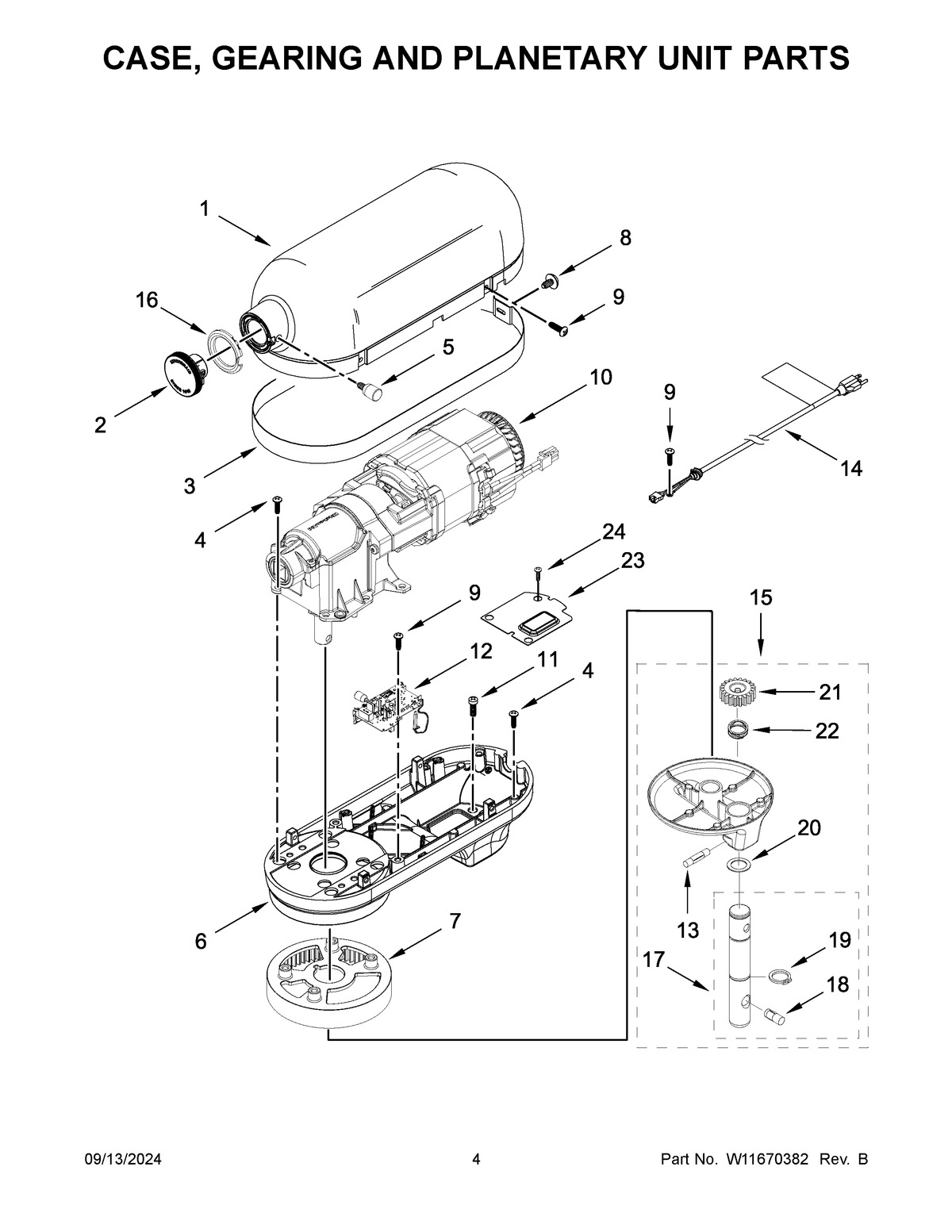

KSM55SXXXAG0 03 – CASE, GEARING AND PLANETARY UNIT PARTSadmin2025-04-26T11:04:29+00:00KSM55SXXXAG0 03 – CASE, GEARING AND PLANETARY UNIT PARTS ProductsPositionProduct1MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)2CAP, ATTACHMENT HUB3TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)4W10914506 Whirlpool Screw5THUMB SCREW (BLACK)6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)7GEAR, RING AND PLATE ASSEMBLY8W10853069 Whirlpool Screw9WP3400814 Whirlpool Screw10W11647949 Whirlpool Motor11W10913677 Whirlpool Screw12W11672012 Whirlpool Speed Control13WPW10234531 Whirlpool Dishwasher Groove Pin14W11677162 Whirlpool Power Cord15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)16WP9703315 Whirlpool Hub Cap17SHAFT, AGITATOR18W11664709 Whirlpool Groove Pin19WP9703680 Whirlpool Retainer Ring20W10854966 Whirlpool Washer21GEAR, PINION22W11649170 Whirlpool Washer23PLATE, LOWER HOUSING24SCREW
