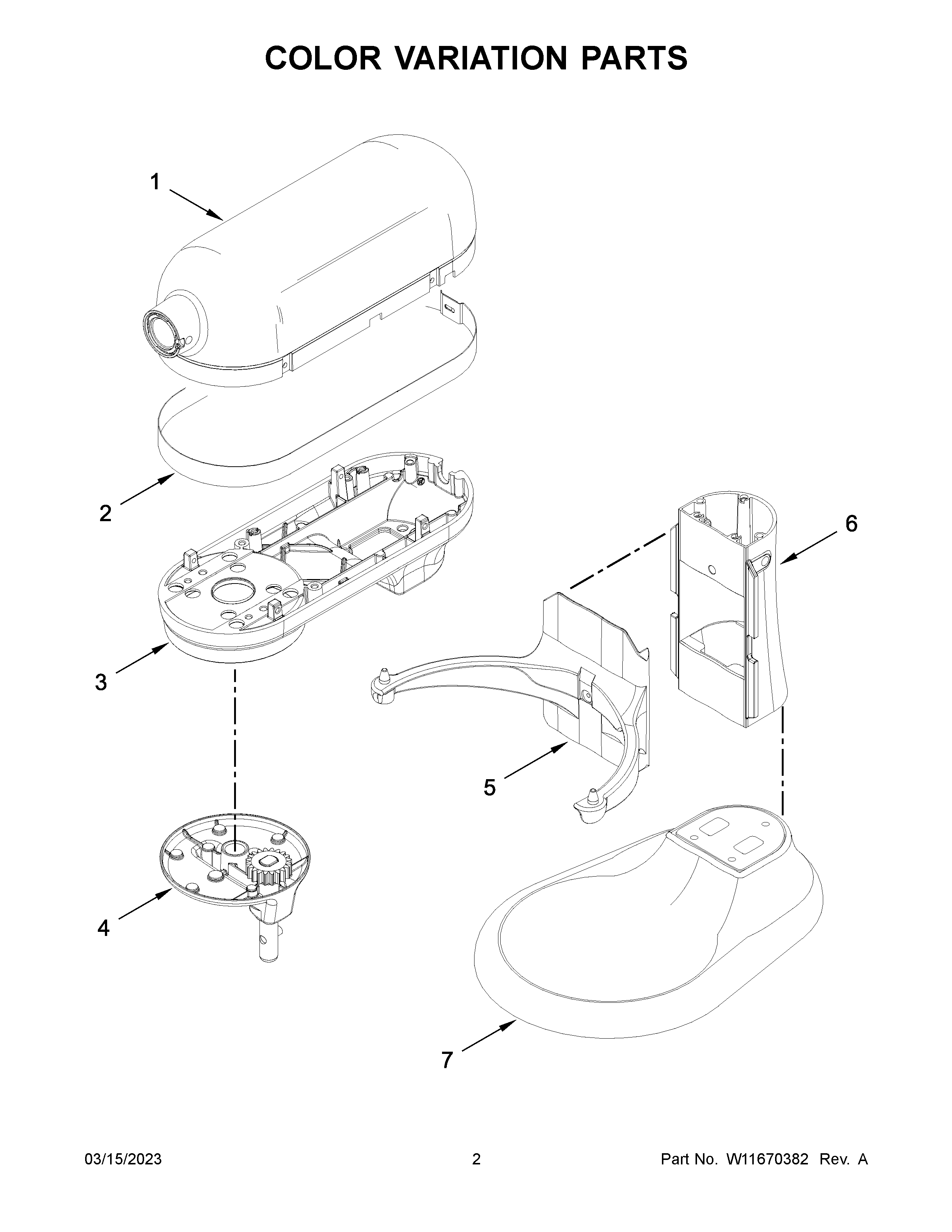

KSM55SXXXCU0 02 – COLOR VARIATION PARTS

Products

Position	Product
1A	MOTOR HOUSING (BLACK MATTE)
1E	MOTOR HOUSING (PORCELAIN WHITE)
1F	9703311 Whirlpool Housing Assembly
1D	9705296 Whirlpool Housing
1C	9705300 Whirlpool Housing Assembly
1B	W10327951 Whirlpool Housing
1	MOTOR HOUSING (AGAVE)
2	TRIM BAND (BRIGHT ALUMINUM)
3A	LOWER GEARCASE (BLACK MATTE)
3D	LOWER GEARCASE (ONYX BLACK)
3	LOWER GEARCASE (AGAVE)
3B	W11520143 Whirlpool Gearcase
3C	LOWER GEARCASE (EMPIRE RED)
3E	LOWER GEARCASE (PORCELAIN WHITE)
3F	LOWER GEARCASE (WHITE)
4E	PLANETARY (PORCELAIN WHITE)
4	PLANETARY (AGAVE)
4A	PLANETARY (BLACK MATTE)
4B	PLANETARY (CONTOUR SILVER)
4F	PLANETARY (WHITE)
4C	PLANETARY
4D	W11513268 Whirlpool Planetary Assembly
5B	WPL W10327966
5E	BOWL SUPPORT AND PINS (PORCELAIN WHITE)
5	BOWL SUPPORT AND PINS (AGAVE)
5A	WPL W11328664
5D	9705356 Whirlpool Support
5C	9705360 Whirlpool Support Assembly
5F	9703674 Whirlpool Support
6	COLUMN AND PINS (AGAVE)
6E	WPL W11691229
6C	9705324 Whirlpool Column Assembly
6F	9703673 Whirlpool Column
6A	WPL W11123140
6B	W10328003 Whirlpool Column Assembly
6D	9705320 Whirlpool Column
7A	BASE & FOOT ASSEMBLY (BLACK MATTE)
7C	9705348 Whirlpool Base
7D	9705344 Whirlpool Base
7F	9703690 Whirlpool Base
7B	WPL W10328017
7E	WPL W11691226
7	BA
