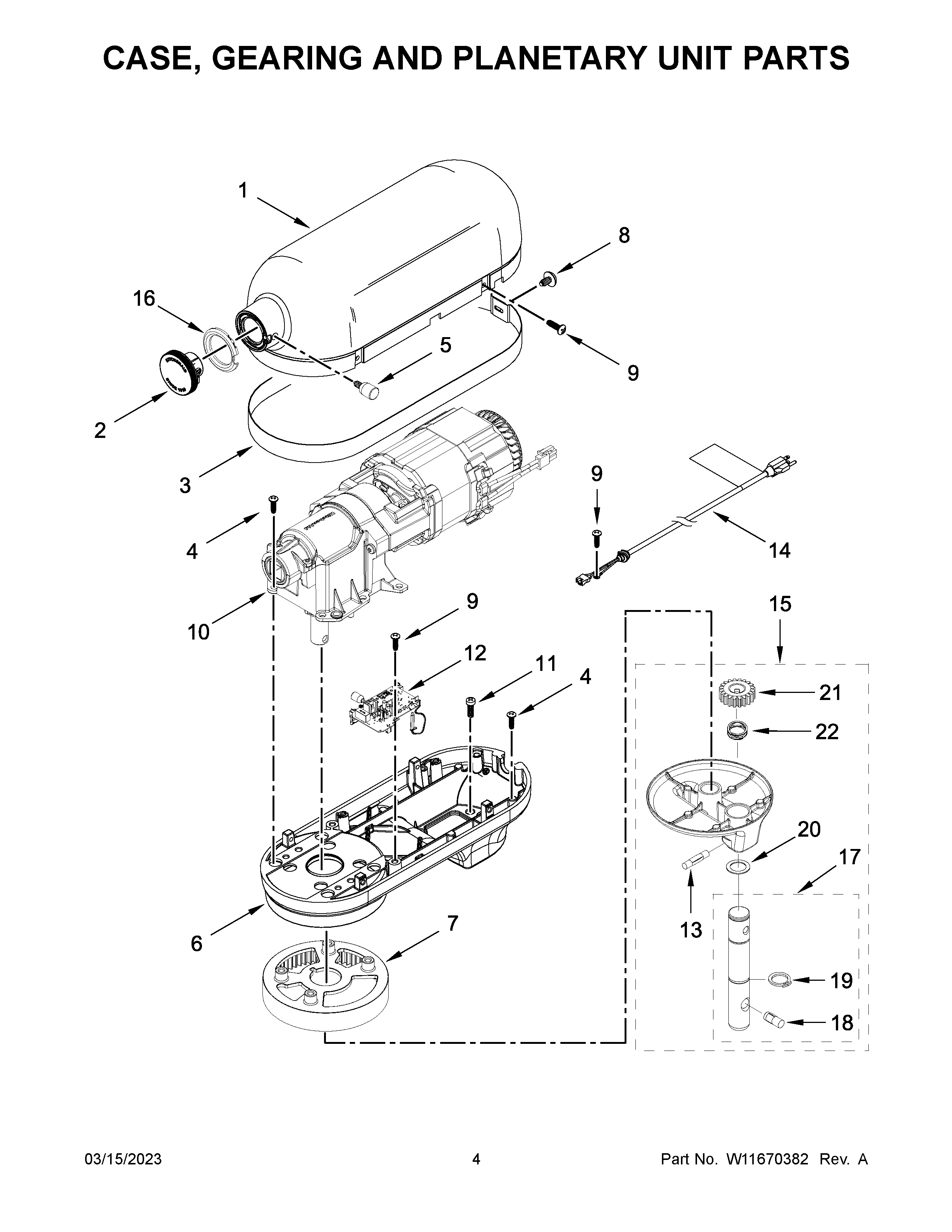

KSM55SXXXER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
1MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2CAP, ATTACHMENT HUB
3TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4W10914506 Whirlpool Screw
5THUMB SCREW (BLACK)
6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11647949 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11672012 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14W11677162 Whirlpool Power Cord
15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16WP9703315 Whirlpool Hub Cap
17SHAFT, AGITATOR
18W11664709 Whirlpool Groove Pin
19WP9703680 Whirlpool Retainer Ring
20W10854966 Whirlpool Washer
21GEAR, PINION
22W11649170 Whirlpool Washer
23PLATE, LOWER HOUSING
24SCREW
