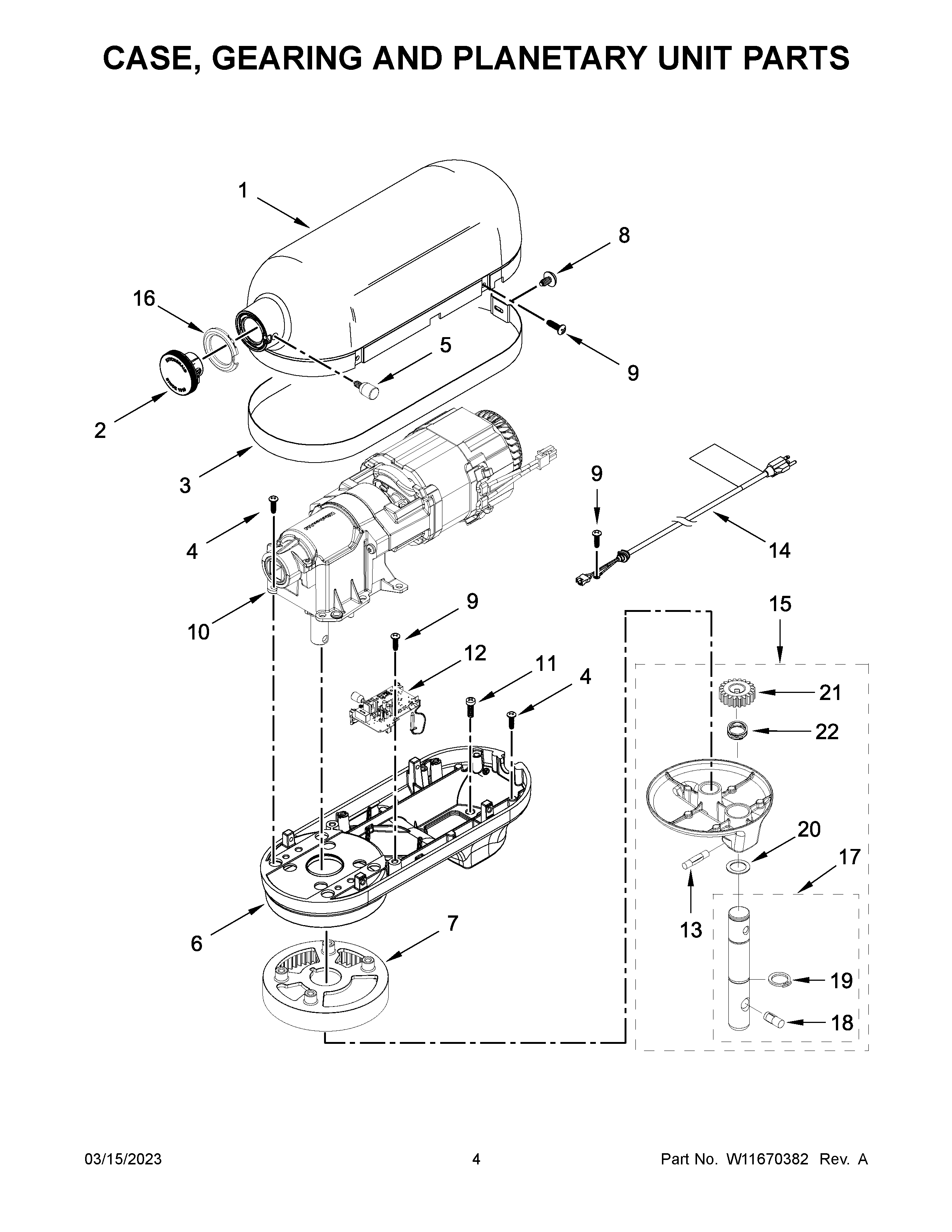

KSM55SXXXOB0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
1	MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2	CAP, ATTACHMENT HUB
3	TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4	W10914506 Whirlpool Screw
5	THUMB SCREW (BLACK)
6	LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	W11647949 Whirlpool Motor
11	W10913677 Whirlpool Screw
12	W11672012 Whirlpool Speed Control
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	W11677162 Whirlpool Power Cord
15	PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16	WP9703315 Whirlpool Hub Cap
17	SHAFT, AGITATOR
18	W11664709 Whirlpool Groove Pin
19	WP9703680 Whirlpool Retainer Ring
20	W10854966 Whirlpool Washer
21	GEAR, PINION
22	W11649170 Whirlpool Washer
23	PLATE, LOWER HOUSING
24	SCREW
