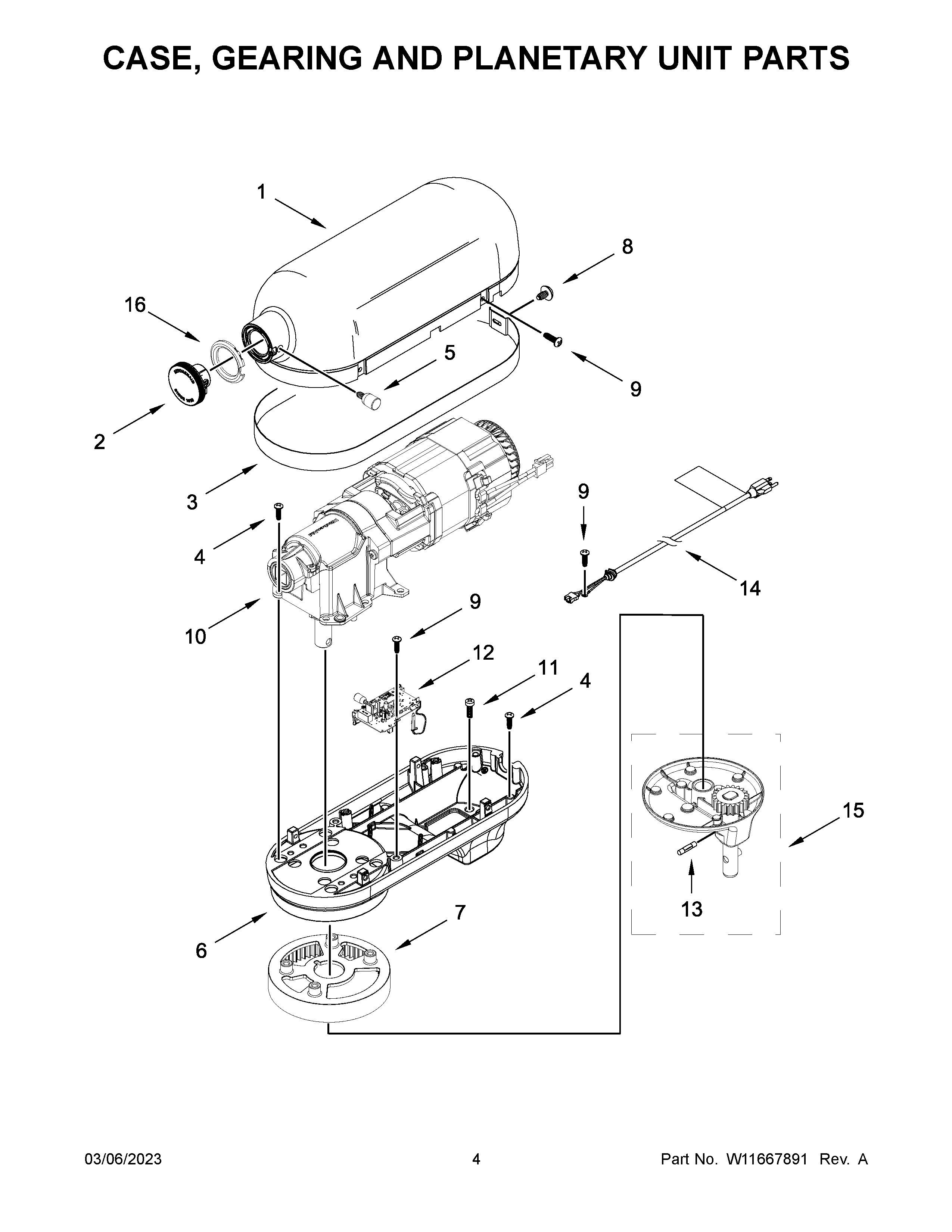

KSM60SECXCU0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	CAP, ATTACHMENT HUB
4	W10914506 Whirlpool Screw
5	THUMB SCREW (SATIN CHROME)
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	W11647949 Whirlpool Motor
11	W10913677 Whirlpool Screw
12	W11677161 Whirlpool Speed Control
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	W11677162 Whirlpool Power Cord
15	CABINET (NOT A SERVICEABLE PART)
16	WP9703315 Whirlpool Hub Cap
