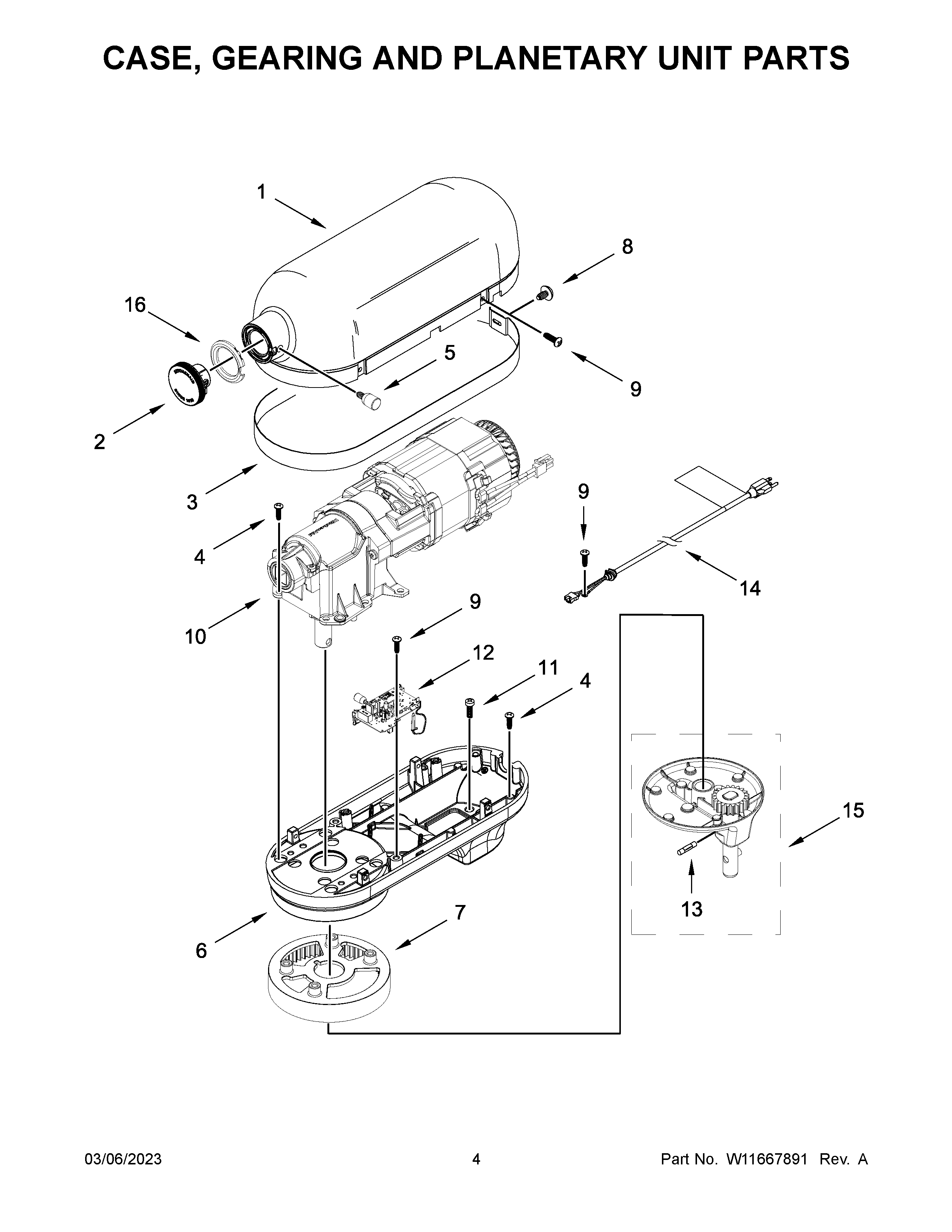

KSM60SECXER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

KSM60SECXER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

KSM60SECXER0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2CAP, ATTACHMENT HUB
4W10914506 Whirlpool Screw
5THUMB SCREW (SATIN CHROME)
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11647949 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11677161 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14W11677162 Whirlpool Power Cord
15CABINET (NOT A SERVICEABLE PART)
16WP9703315 Whirlpool Hub Cap
